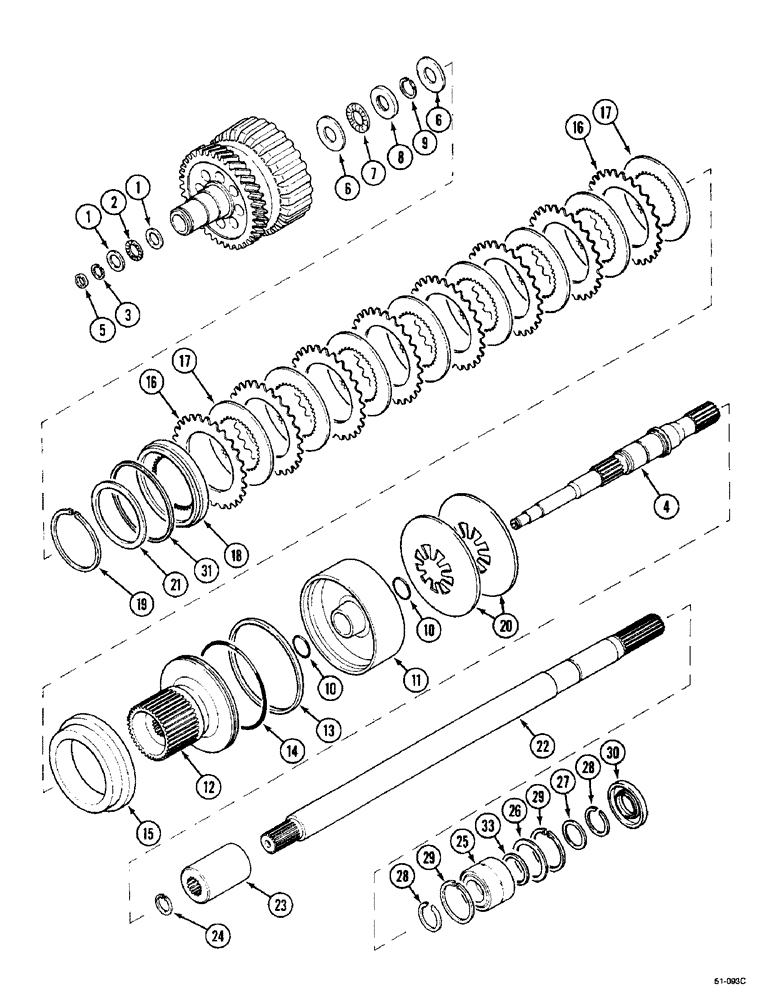

Запчасти Case IH 5150 (6-142) - M.F.D. CLUTCH AND DRIVE SHAFTS (06) - POWER TRAIN

1

A186416

WASHER, THRUST

2шт.

2

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

thrust

1шт.

3

100-1675

SNAP RING,#75, Ext

1шт.

4

1341236C1

SHAFT

62457 Drive Rear

1шт.

5

A186413

SEALING RING,16.23mm ID x 19.68mm OD x 2.38mm Thk

SEALRING SEAL

1шт.

6

A188925

WASHER,27.35mm ID x 49.2mm OD x 3.2mm Thk

thrust

2шт.

7

A188926

THRUST BEARING,27.03mm ID x 40.87mm OD x 3.17mm W

thrust

1шт.

8

A188927

WASHER, THRUST

1шт.

9

A188928

CIRCLIP

retaining

1шт.

10

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

11

A190019

HOUSING

1шт.

12

1341158C1

HUB

1шт.

13

A183534

SEAL,128.94mm ID x 136.36mm OD x 3.07mm Thk

1шт.

14

A183535

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

15

A188947

PLATE, THRUST

62457 Pressure

1шт.

16

A188868

DRIVE PLATE

friction, 62457 26T External, HAS EXTERNAL SPLINES AND FRICTION MATERIAL ON BOTH \nSIDES

8шт.

17

A188869

DRIVEN PLATE

separator, 62457 40T Internal. HAS INTERNAL SPLINES AND NO FRICTION MATERIAL

8шт.

18

1341228C1

PLATE

1шт.

19

934431R1

SNAP RING,M85, Ext

retaining, 78.58 mm, 62457 Outer

1шт.

20

A188754

SPRING

2шт.

21

A188888

SHIM,1.0mm Thk

Adjusting

1шт.

21

A188889

SHIM,0.50mm Thk

Adjusting

1шт.

21

A188890

SHIM,82.1mm ID x 98.4mm OD x 0.3mm Thk

Adjusting

1шт.

22

1995233C1

SHAFT

62457 Drive Front

1шт.

23

A186409

SPLINED COUPLING

1шт.

24

338835R1

SNAP RING,1.125", Int, #112

1.125", Int, #112

1шт.

25

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

2шт.

25

G57451

BEARING, CUP

CUP

2шт.

26

K915557

SHIM,53.98mm ID x 64.29mm OD x 0.05mm Thk

Adjusting

1шт.

26

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

Adjusting

1шт.

26

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

Adjusting

1шт.

27

A190159

SHIM,0.05mm Thk

Adjusting, 62457, 5120, 5130, 5140 Powershift, Serial Range: -JJF1019933

1шт.

27

A190160

SHIM,.1265mm Thk

Adjusting, 62457, 5120, 5130, 5140 Powershift, Serial Range: -JJF1019933

1шт.

27

A190161

SHIM,0.254mm Thk

Adjusting, 62457, 5120, 5130, 5140 Powershift, Serial Range: -JJF1019933

1шт.

27

A190159

SHIM,0.05mm Thk

Adjusting, 62457, 5120, 5130, 5140 Synchromesh, Serial Range: -JJF1020070

1шт.

27

A190160

SHIM,.1265mm Thk

Adjusting, 62457, 5120, 5130, 5140 Synchromesh, Serial Range: -JJF1020070

1шт.

27

A190161

SHIM,0.254mm Thk

Adjusting, 62457, 5120, 5130, 5140 Synchromesh, Serial Range: -JJF1020070

1шт.

28

A21619

CIRCLIP

retaining

2шт.

29

715648R1

SNAP RING,M65, Int

retaining

2шт.

30

A190135

SEAL

oil, 62457 Front

1шт.

31

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

oil

1шт.

33

1341125C1

SPACER

35 mm, 62457 Powershift, Synchromesh to JJF1019933, 1020070

1шт.

33

1341124C1

SPACER

54 mm, 62457 Powershift, Synchromesh to JJF1019934, 1020071

1шт.
