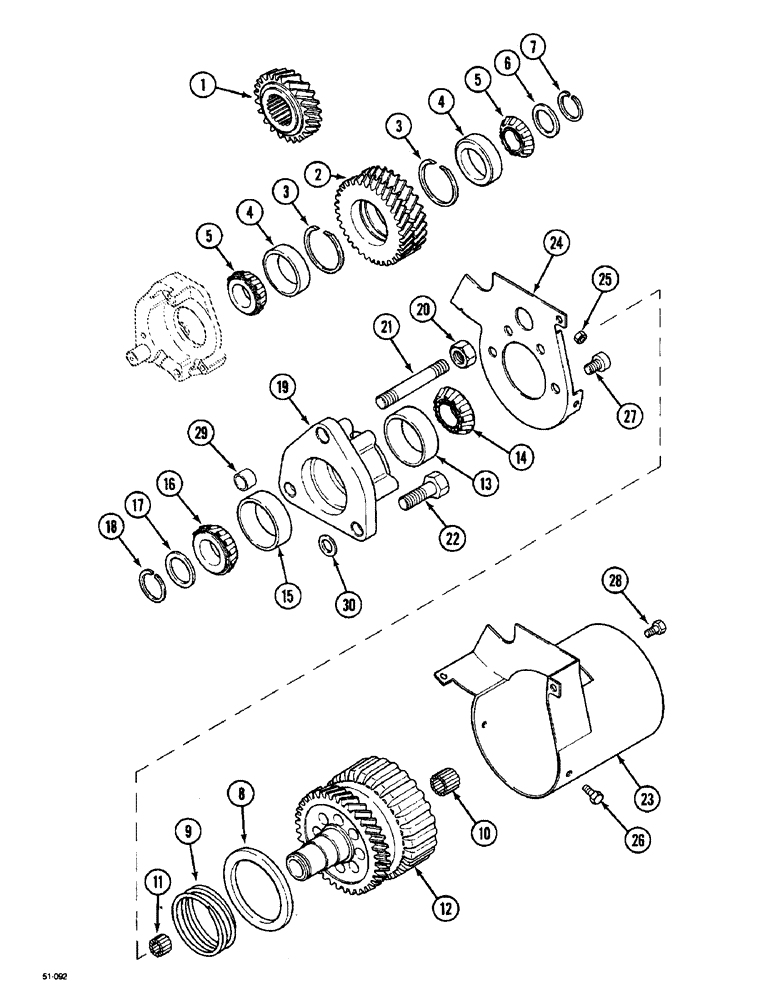

Запчасти Case IH 5150 (6-138) - M.F.D. DRIVE AND IDLER GEARS (06) - POWER TRAIN

1

1345750C2

PINION

GEAR, 22T, 62457, 5120, 5130, 5140, Drive MFD Ratio : 1.6293 Interaxle Ratio : 1.2894

1шт.

1

284538A1

PINION

GEAR, 24T, 62457 Drive MFD Ratio : 1.4935 Interaxle Ratio : 1.4070

1шт.

1

1345752C1

PINION

GEAR, 23T, 62457, 5120, 5130, 5140, Drive MFD Ratio : 1.7092 Interaxle Ratio : 1.2291

1шт.

2

1345960C1

SPROCKET ASSY.

GEAR, 31/32T, 62457, 5120, 5130, 5140, Idler MFD Ratio : 1.6293 Interaxle Ratio : 1.2894

1шт.

2

284767A1

PINION

GEAR, 31/32T, 62457, 5120, 5130, 5140, Idler MFD Ratio : 1.4935 Interaxle Ratio : 1.4070

1шт.

2

1345965C1

SPROCKET ASSY.

GEAR, 34/32T, 62457 Idler MFD Ratio : 1.7092 Interaxle Ratio : 1.2291

1шт.

3

A188179

CIRCLIP

retaining

2шт.

4

651817R1

BEARING CUP

CUP

2шт.

5

A156625

ROLLER BEARING

CONE ASSY.

2шт.

6

A178328

SHIM,31.95mm ID x 43mm OD x 0.36mm Thk

Adjusting

1шт.

6

A178329

SHIM,31.95mm ID x 43mm OD x 0.46mm Thk

adjusting 0.419 mm

1шт.

6

A178330

SHIM,31.95mm ID x 43mm OD x 0.64mm Thk

adjusting 0.584 mm

1шт.

7

100-16125

SNAP RING,#125, Ext

62457 outer

1шт.

8

1345696C1

SEAL

62457, 5120, 5130, 5140, Serial Range: -JJF1015899

1шт.

8

1995123C1

SEAL,83.77mm ID x 107mm OD x mm Thk

62457, Start Serial: JJF1015900

1шт.

9

1345654C1

SPRING

62457, Serial Range: -JJF1015899

1шт.

10

K620066

NEEDLE BEARING

NEEDLE

1шт.

11

A186418

NEEDLE BEARING,Needle, 20mm ID x 26mm OD x 16mm W

NEEDLE

1шт.

12

1345719C1

SPROCKET ASSY.

GEAR

1шт.

13

663558R1

BEARING CUP

1шт.

14

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8 ID

1шт.

15

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

16

61063C91

ROLLER BEARING,38.11mm ID x 25.57mm W

ASSY.

1шт.

17

A188199

SHIM,38.6mm ID x 48.6mm OD x 0.05mm Thk

Adjusting (0.002")

1шт.

17

A188200

SHIM,38.6mm ID x 48.6mm OD x 0.13mm Thk

Adjusting (0.005")

1шт.

17

A188201

SHIM,38.6mm ID x 48.6mm OD x 0.2mm Thk

Adjusting (0.008")

1шт.

17

1995014C1

SHIM

adjusting 0.02 in

1шт.

18

100-16150

SNAP RING,#150, Ext

1шт.

19

1995126C1

BEARING CARRIER,64 mm ID x 86.25 mm OD x 74 mm

CARRIER bearing

1шт.

20

829-1316

NUT,M16, Cl 10

3шт.

21

1341169C1

STUD

16 x 105 mm

1шт.

22

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

23

1997141C1

PROTECTOR

ASSY., 62457 Front

1шт.

24

1345598C1

GUARD ASSY.

62457 Rear Includes: 25

1шт.

25

830-60006

NUT

M6

3шт.

26

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

27

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

28

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

29

1341167C1

SLEEVE

1шт.

30

1341198C1

SHIM

adjusting 0.085 mm

1шт.

30

1345780C1

SHIM

adjusting 0.50 mm

1шт.

30

1341199C1

SHIM

adjusting 0.125 mm

1шт.
