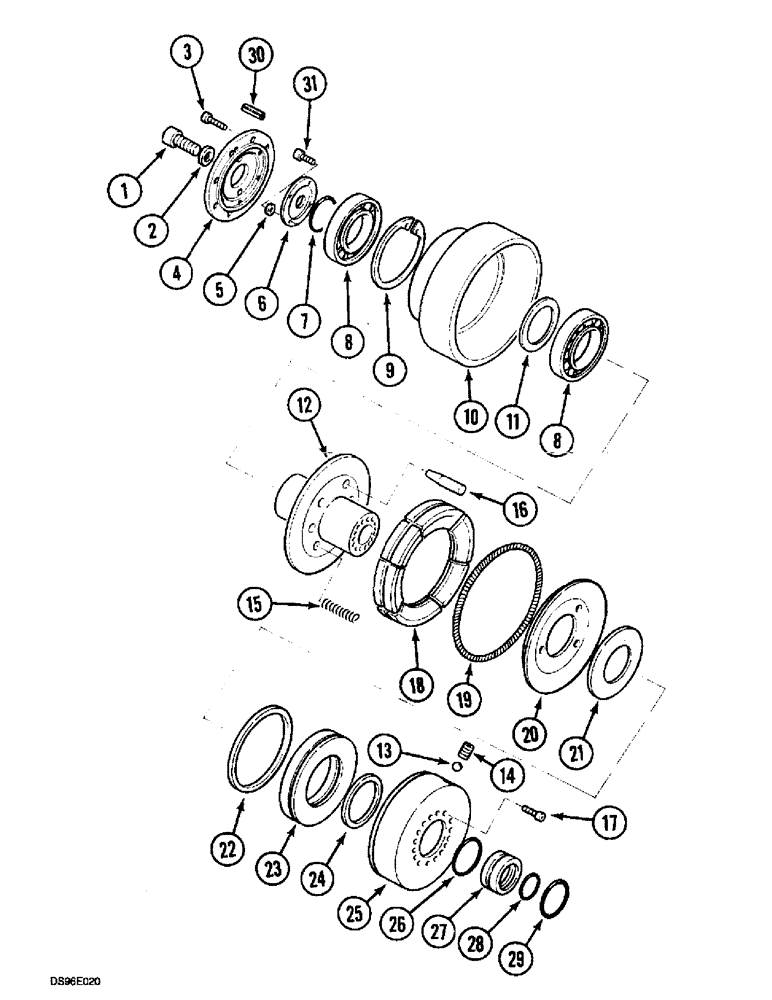

Запчасти Case IH 5150 (6-136) - FRONT P.T.O. CLUTCH, (WIRTZ) (06) - POWER TRAIN

220768A1

CLUTCH

ASSY., 66020 Heavy Duty Consists Of: 1-31

1шт.

1533972C1

CLUTCH

ASSY., 66020 Consists Of: 1-31

1шт.

1

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

1шт.

2

134895A1

WASHER

SEAL

1шт.

3

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

16шт.

4

134896A1

COVER

1шт.

4

220766A1

FLANGE

66020 Heavy Duty

1шт.

5

134897A1

COPPER WASHER

5 mm

4шт.

6

134898A1

PLATE, THRUST

1шт.

7

134899A1

O-RING

1шт.

8

134900A1

BEARING, BALL

2шт.

9

933234R1

SNAP RING,M95, Int

retaining

1шт.

10

134901A1

HOUSING

1шт.

11

134902A1

SPACER

1шт.

12

134903A1

HUB ASSY.

1шт.

13

134904A1

BALL

1шт.

14

134905A1

SET SCREW

1шт.

15

134906A1

COMPRESSION SPRING

9шт.

16

134907A1

PIN

3шт.

17

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

16шт.

18

134908A1

FACING

SCRAPER

1шт.

19

134909A1

SPRING

66020 Outer

1шт.

20

134910A1

WASHER

WASHER, 66020 Pressure

1шт.

21

134911A1

BELLEVILLE SPRING

1шт.

22

134912A1

RING

RING

1шт.

23

134913A1

PISTON

1шт.

24

134914A1

RING

RING

1шт.

25

134917A1

CYLINDER

1шт.

26

134918A1

O-RING

1шт.

27

134919A1

SLEEVE

1шт.

28

134920A1

O-RING

1шт.

29

134921A1

O-RING

1шт.

30

738-1620

LOCK PIN,6mm OD x 20mm L, Slotted

Roll

2шт.

31

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

4шт.

134930A1

SEAL

66020 Seals Includes: 2,5,7,22,24,26,28,29

1шт.
