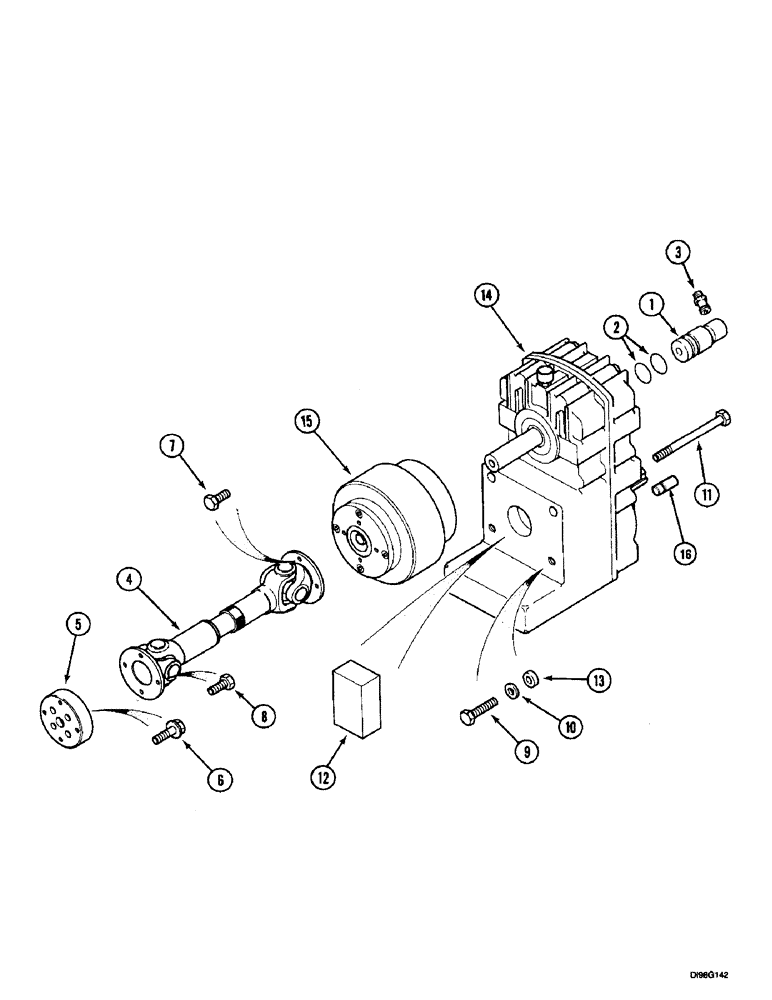

Запчасти Case IH 5150 (6-130) - FRONT P.T.O., STANDARD (06) - POWER TRAIN

1

1533973C1

FITTING

ASSY. 60003 Consists Of: 2, 3

2шт.

2

134932A1

O-RING

2шт.

3

134934A1

UNION

1шт.

4

1533971C2

COUPLING

SHAFT, 60003 Drive Consists Of: 5,7,8

1шт.

5

199654A1

ADAPTER

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

7

514-628

BOLT,Hex, M8 x 1.25 x 16mm, Cl 12.9, Full Thd

M8 x 16; 12.9

4шт.

8

514-631

BOLT,Hex, M8 x 1.25 x 30mm, Cl 12.9, Full Thd

M8 x 30; 12.9

4шт.

9

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

10

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

813-16210

BOLT,Hex, M16 x 2 x 210mm, Cl 8.8

M16 x 210

2шт.

12

1533979C1

FOAM

60003 Adhesive

1шт.

13

3141764R1

WASHER

M16

4шт.

14

REF

INSTRUCTION

TRANSMISSION, 60003 See Figure: 6-134

1шт.

15

REF

INSTRUCTION

CLUTCH, 60003 See Figure: 6-136

1шт.

16

3054841R2

TUBE

COVER

1шт.
