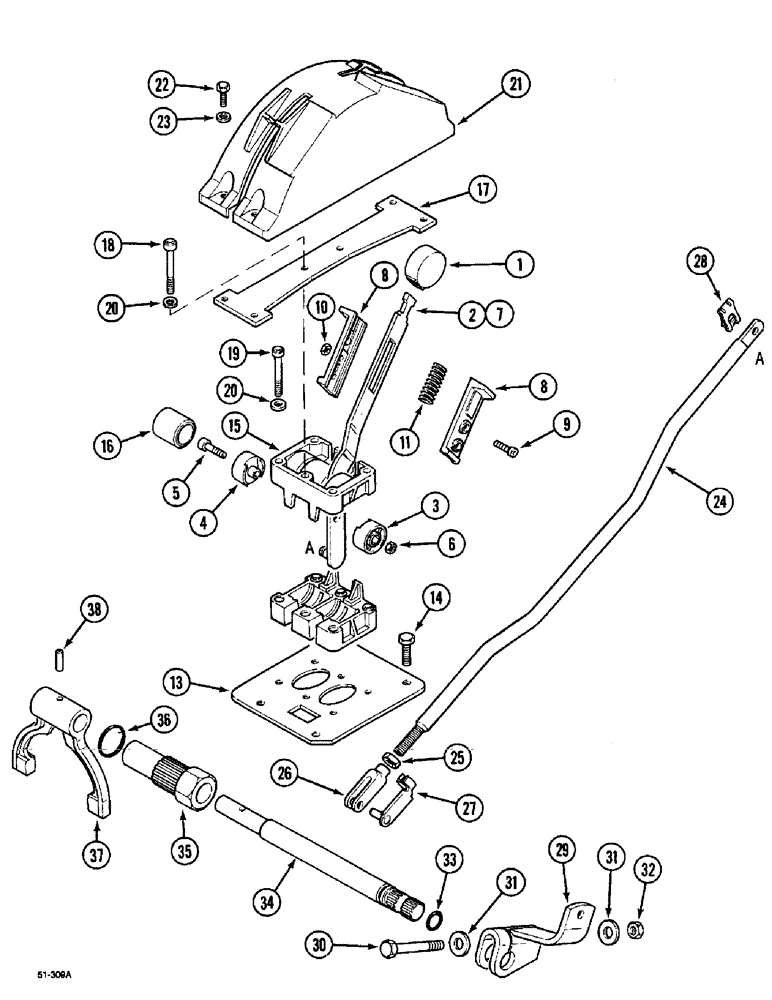

Запчасти Case IH 5150 (6-128) - P.T.O. CONTROLS - SHIFTABLE (06) - POWER TRAIN

1

1958758C1

BUTTON

KNOB

1шт.

2

1531242C1

LEVER

ASSY., 66060 Consists Of: 3-7

1шт.

3

1531277C1

ROLLER

1шт.

4

1531280C1

ROLLER

1шт.

5

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

6

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

7

1531243C1

LEVER

1шт.

8

1531281C1

STOP LOCK

2шт.

9

905917R1

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4 x 12 mm

2шт.

10

824-1404

NUT,M4, Cl 5

2шт.

11

1531282C1

SPRING

1шт.

13

1531476C1

PLATE

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

T102996

BEARING HOUSING

HOUSING

2шт.

16

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE

1шт.

17

1531276C1

SUPPORT

1шт.

18

614-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8, Full Thd

M6 x 55

2шт.

19

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

21

1531244C1

COVER

1шт.

22

565-103

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

1531479C2

ROD

1шт.

25

3233416R1

THIN NUT,Thin, M8 x 1.25, Cl 04

M8

1шт.

26

3399152R1

YOKE

1шт.

27

3399250R1

PIN

1шт.

28

T102627

CLIP

1шт.

29

1341110C1

LEVER

1шт.

30

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

31

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

32

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

33

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

1шт.

34

1341108C1

SHAFT

1шт.

35

1341107C1

TRANSMISSION SLEEVE

BUSHING

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

A183464

SHIFTER FORK

1шт.

38

38-31216

PIN,3/16" x 1", Coiled

1шт.
