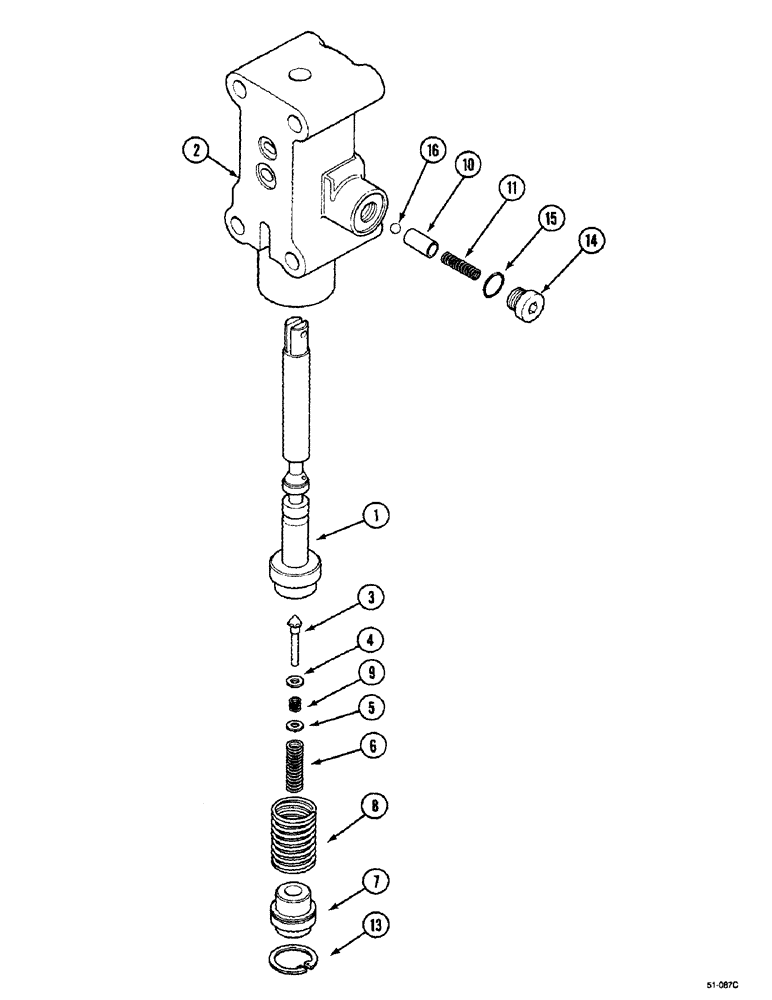

Запчасти Case IH 5150 (6-122) - P.T.O. VALVE ASSEMBLY, ( - JJF1029999) (06) - POWER TRAIN

1971419C3

VALVE

ASSY., control, 66020 Consists Of: 1 - 16

1шт.

1

1957880C3

SPOOL

1шт.

2

G110344

VALVE BODY

1шт.

3

G108809

VALVE POPPET

1шт.

4

G108811

WASHER,8mm ID x 14.27mm OD x 1.65mm Thk

1шт.

5

G108810

WASHER

1шт.

6

G108816

SPRING

66020 Primary

1шт.

7

G108808

CAP

1шт.

8

G110342

SPRING

66020 Return

1шт.

9

G110335

SPRING

66020 Secondary

1шт.

10

1341948C3

GUIDE

1шт.

11

1341952C1

SPRING

1шт.

13

A32181

SNAP RING,1.375", Int, #137

1.375", Int, #137

1шт.

14

9625178

PLUG,9/16" - 18 ORB

66020, Incl. 15

1шт.

16

211-1008

BALL,1/4" Dia

1/4; 24,CRS

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
