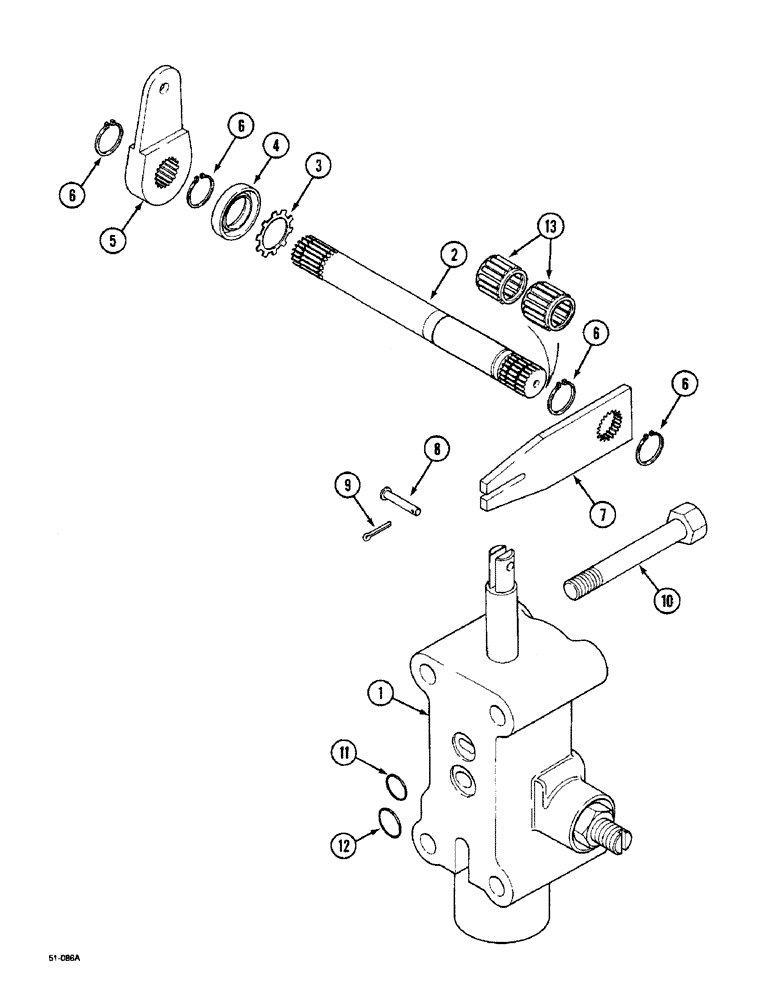

Запчасти Case IH 5150 (6-120) - P.T.O. VALVE AND LINKAGE, ( - JJF1029999) (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE control, 66020 See Figure: 6-122

1шт.

2

1345685C1

SHAFT

1шт.

3

A186637

RETAINER

1шт.

4

A186635

SEAL,17.89mm ID x 30.03mm OD x 7mm Thk

1шт.

5

A188881

LEVER

66060 Outer

1шт.

6

100-1168

SNAP RING,#68, Ext

4шт.

7

A186743

CONTROL LEVER

66060 Inner

1шт.

8

H343822

AXLE PIN

CLEVIS

1шт.

9

132-2

SPLIT PIN/SAFETY PIN

COTTER

1шт.

10

826-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

M10 x 80; 10.9

4шт.

11

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

12

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

13

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

2шт.
