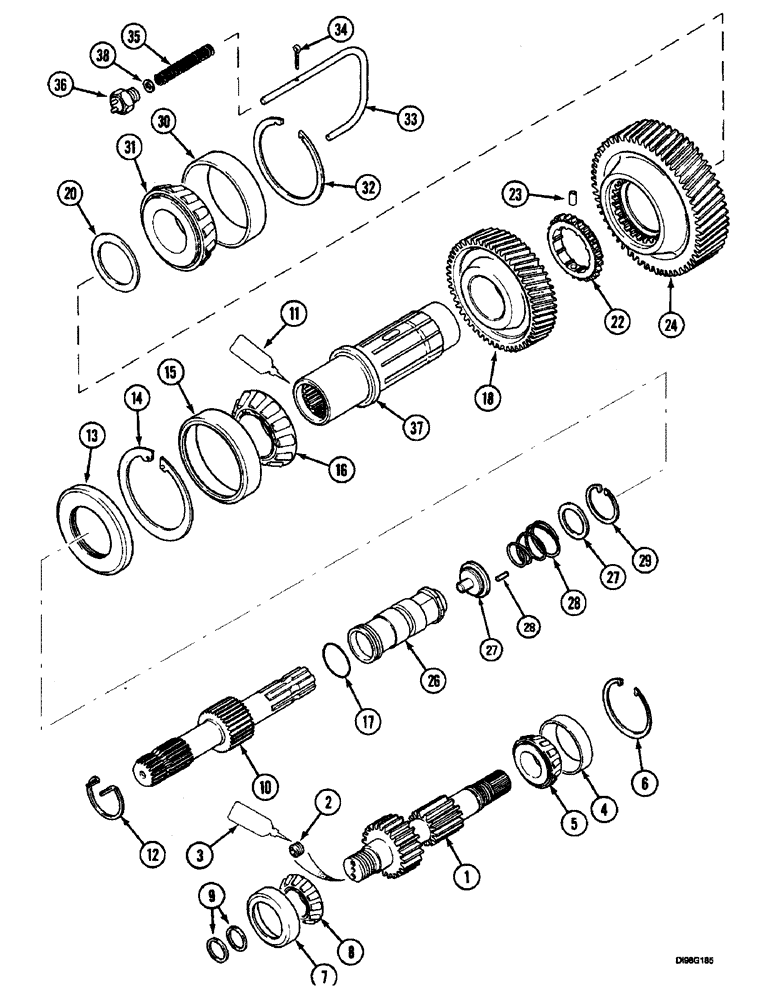

Запчасти Case IH 5150 (6-112) - P.T.O. REVERSIBLE 540/1000 R.P.M. (06) - POWER TRAIN

1

1341276C3

SHAFT ASSY.

14/22T, 66010, 5120, 5130, 5140, Includes: 2, 3

1шт.

1

111181A1

SHAFT ASSY.

14/25T, 66010, 5150, Includes: 2, 3

1шт.

2

83-3314

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

2шт.

3

B17197

LOCTITE

50 ml

1шт.

1995378C1

BEARING ASSY,23.9135 mm

roller, 66010 Includes: 4B, 5B

1шт.

4a

50213V

BEARING CUP

CUP, 2-3/4 OD, Start Serial: JJF1023129

1шт.

4b

NSS

NOT SOLD SEPARAT

BEARING cup, Serial Range: -JJF1023130

1шт.

5a

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1-5/16 ID, Start Serial: JJF1023129

1шт.

5b

NSS

NOT SOLD SEPARAT

CONE ASSY., Serial Range: -JJF1023130

1шт.

6

100-21275

SNAP RING,2.75", Int, #275

snap 2.36 mm

1шт.

6

1345614C1

SPECIAL RING

snap 2.30 mm

1шт.

6

1345615C1

SPECIAL RING

snap 2.20 mm

1шт.

6

1345616C1

SPECIAL RING

snap 2.10 mm

1шт.

6

1345617C1

SNAP RING

snap 2,00 mm

1шт.

1995377C1

BEARING ASSY,22.3265 mm

roller, 66010 Includes: 7B, 8B

1шт.

7a

671033R1

BEARING, CUP

CUP, Start Serial: JJF1023129

1шт.

7b

NSS

NOT SOLD SEPARAT

BEARING cup, Serial Range: -JJF1023130

1шт.

8a

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

ASSY., Start Serial: JJF1023129

1шт.

8b

NSS

NOT SOLD SEPARAT

CONE ASSY., Serial Range: -JJF1023130

1шт.

9

A188295

SEALING RING,28.48mm ID x 31.8mm OD x 2.38mm Thk

SEALRING SEAL

2шт.

10

226824A2

SHAFT

1шт.

11

331-58

LUBRICANT

1 oz

1шт.

12

1341137C1

CIRCLIP

snap

1шт.

13

A175136

OIL SEAL,66.63mm ID x 111.2mm OD x 11.38mm Thk

1шт.

14

R32220

SNAP RING,4.331", Int, #433

4.331", Int, #433

1шт.

15

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP

1шт.

16

102161H

BEARING ASSY,68.262mm ID x 21.996mm

ASSY.

1шт.

17

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

18

1341171C4

PINION

GEAR, 52T, 66010, 5120, 5130, 5140, Driven

1шт.

18

1995442C2

PINION

GEAR, 52T, 66010, 5150, Driven

1шт.

19

95-81129

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

20

1341177C1

THRUST WASHER

1шт.

21

1341178C1

SPRING

1шт.

22

1341176C1

TRANSMISSION SLEEVE

COLLAR

1шт.

23

137710A1

DOWEL,8mm OD x 18.54mm L

PIN

2шт.

24

1341172C4

PINION

GEAR, 60T, 66010, 5120, 5130, 5140, Driven

1шт.

24

1995443C2

PINION

GEAR, 60T, 66010, 5150, Driven

1шт.

26

111696A4

SLEEVE

SLEEVE, 66010 Includes: 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG

1шт.

28

838-5210

LOCK PIN,M2 x 10, Slotted

2 x 10 mm

1шт.

29

100-21181

SNAP RING,1.812", Int, #181

1шт.

30a

659459R1

BEARING, CUP

CUP, Start Serial: JJF1023129

1шт.

30b

1995387C1

BEARING ASSY,21.1015 mm

roller, Serial Range: -JJF1023130

1шт.

31

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE ASSY.

1шт.

32

A152252

RING

snap 2.08 mm

1шт.

32

1345620C1

CIRCLIP

snap 2.70 mm

1шт.

32

1345621C1

SNAP RING

snap 2.60 mm

1шт.

32

1345622C1

SNAP RING

snap 2.50 mm

1шт.

32

1345623C1

SNAP RING

snap 2.40 mm

1шт.

33

1345683C1

THREADED ROD

1шт.

34

32-610

COTTER PIN,3/32" x 5/8"

1шт.

35

A178674

SPRING

1шт.

36

A160237

SWITCH

SWITCH - neutral start

1шт.

37

1341234C1

SPLINED COUPLING

SLEEVE

1шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
