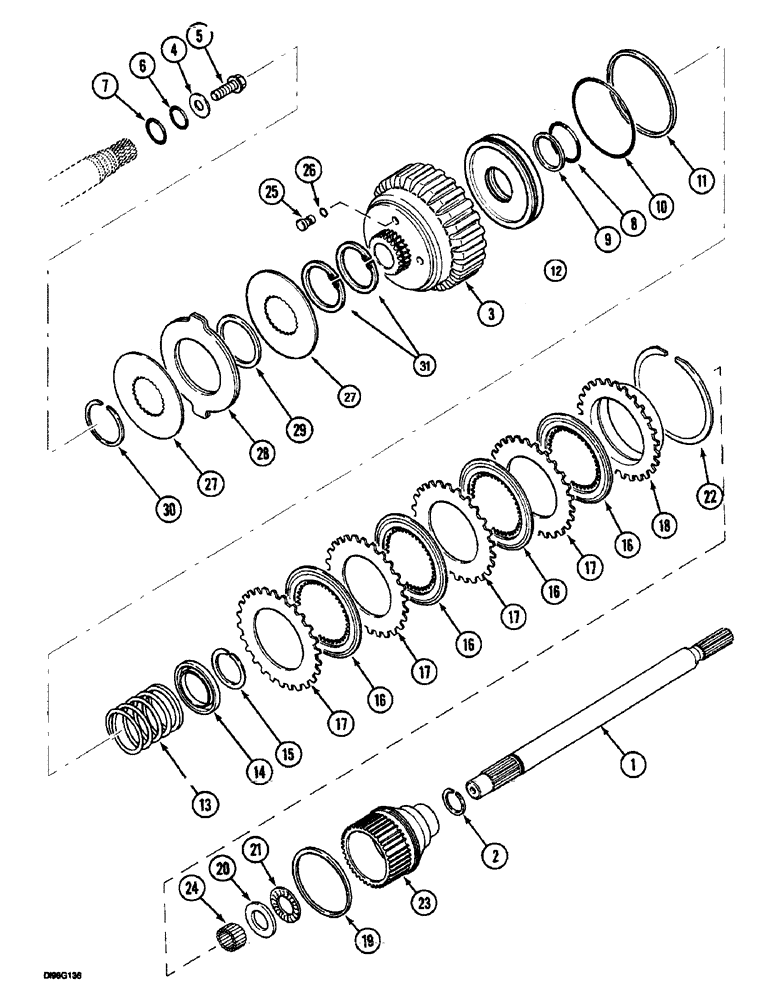

Запчасти Case IH 5150 (6-110) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1341088C1
SHAFT
1шт.
2
103-11112
SNAP RING,#112, Ext
1шт.
3
1997144C2
CLUTCH HOUSING
1шт.
4
A175129
WASHER, THRUST
1шт.
5
853-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 10.9
M12 x 25; 10.9
1шт.
6
238-5215
O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro
1шт.
8
238-5137
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
1шт.
9
A159297
SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk
SEALRING oil
1шт.
10
238-5156
O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro
1шт.
11
A158051
SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk
oil
1шт.
12
A159292
PISTON
1шт.
13
A183508
SPRING
1шт.
14
A183436
RETAINER,45.25mm ID x 65.45mm OD x 5mm Thk
1шт.
15
100-16175
SNAP RING,#175, Ext
1шт.
16
A188946
DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk
friction, 66020 Trans No.: - JKA73450
4шт.
16
1997129C1
NOTCHED DISK
friction, 66020 Trans No.: JKA73451 -
4шт.
17
A175806
PLATE
separator
4шт.
18
A188599
PLATE
1шт.
19
1995174C1
SEALING RING
SEALRING
1шт.
20
A146625
WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk
thrust
1шт.
21
T36441
THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"
thrust
1шт.
22
A158227
CIRCLIP
snap
1шт.
23
A188600
YOKE
UNIVERSAL JOINT YOKE HUB
1шт.
24
A175839
NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W
NEEDLE
1шт.
112627A1
KIT
66020 Includes: 25B,26 - 28,29B
1шт.
25a
A183438
PIN,7.29mm OD x 15.3mm L
, Start Serial: JJF1026029
3шт.
25b
1995268C1
PISTON
PIN, Serial Range: -JJF1026030
3шт.
26
238-5008
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
3шт.
27
1995264C1
BRAKE DISC
DISC, BRAKE
2шт.
28
1345606C1
BRAKE DISC
DISC, BRAKE ASSY.
1шт.
29a
1345690C1
SPRING
, Start Serial: JJF1026029
2шт.
29b
1345690C1
SPRING
, Serial Range: -JJF1026030
3шт.
30
800-1155
RETAINER,55mm ID
retaining
1шт.
31
102-13196
SNAP RING,#196, 1.864", Ext Spiral
retaining, 66020 Trans No.: - JKA90145
1шт.
31
100-17200
SNAP RING,#200, Ext
66020 Trans No.: JKA90146 -
2шт.
Выбрано товаров: 36
