Запчасти Case IH 5150 (6-104) - P.T.O. AND OIL PUMP DRIVE (06) - POWER TRAIN

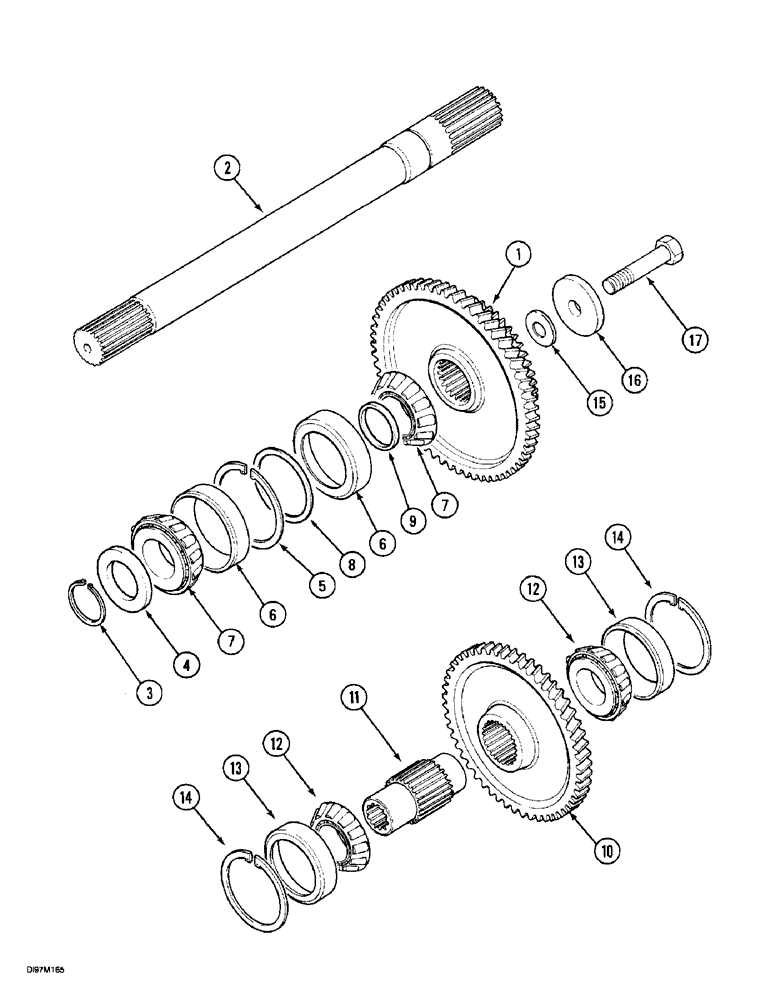

Схема запчастей Case IH 5150 - (6-104) - P.T.O. AND OIL PUMP DRIVE (06) - POWER TRAIN
10
13
11
16
4
2
6
9
7
8
5
14
1
12
6
17
3
7
15
13
12
14

Артикул

Название

Примечание

Количество

293814A1

PACKAGE, REPAIR

62521 Service Consists Of: 1-9

1шт.

1

1995383C1

PINION

GEAR, 62521 P.T.O. Drive

1шт.

2

1341086C1

SHAFT

62521 P.T.O. Drive Front

1шт.

3

100-16137

SNAP RING,#137. Ext

1шт.

4

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

1шт.

293777A1

BEARING ASSY,34.93mm ID x 39.83mm OD x 65.1mm W

KIT, 62521 Installation Consists Of: 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING cup

2шт.

7

NSS

NOT SOLD SEPARAT

CONE ASSY.

2шт.

8

NSS

NOT SOLD SEPARAT

SPACER, 62521 Bearing, Cup

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER, 62521 Bearing, Cone

1шт.

10

A183807

GEAR

62521 Pump Drive

1шт.

11

A183476

SHAFT

62521 Pump Drive

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

13

651817R1

BEARING CUP

CUP

2шт.

14

A178627

RING, SNAP

RING SNAP 1.5 mm

1шт.

14

A178629

SNAP RING

snap 1.6 mm

1шт.

14

A178626

RING, SNAP

RING SNAP 1.7 mm

1шт.

14

A178628

SNAP RING

snap 1.8 mm

1шт.

14

A175867

CIRCLIP

2.0 mm

1шт.

15

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

Adjusting

1шт.

15

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

Adjusting

1шт.

15

A158881

SHIM,1.016mm Thk

Adjusting

1шт.

16

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

1шт.

17

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

Выбрано товаров: 25
