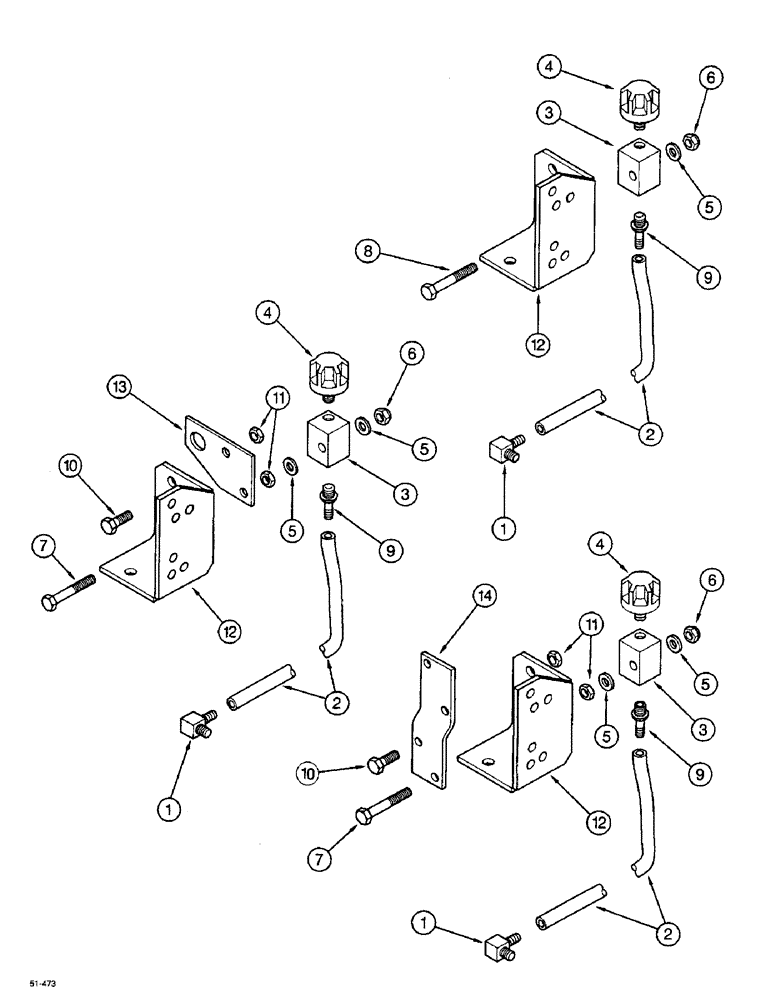

Запчасти Case IH 5150 (6-102) - TRANSMISSION - BREATHER, (JJF1030000 - ) (06) - POWER TRAIN

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

elbow, 90 1/4 stem x PT

1шт.

2

132908A1

HOSE,6.35mm ID x 275mm L, SAE 30R6 or 30R7

275 mm (10-7/8 in)

1шт.

3

132093A2

BLOCK

1шт.

4

1971726C1

BREATHER,1/4" - 18

ASSY.

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

60001 without Trailer Brake

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

M10 x 70

1шт.

8

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

60001 Without Trailer Brake

1шт.

9

220-502

COUPLING, BREAK AWAY

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

60001 with Trailer Brake

1шт.

11

825-1410

NUT,M10, Cl 8

60001 with Trailer Brake

2шт.

12

1533276C1

SUPPORT

1шт.

13

1533270C1

SUPPORT

60001 With Trailer Brake

1шт.

14

1533133C1

PLATE

60001 With Pneumatic Trailer Brake

1шт.
