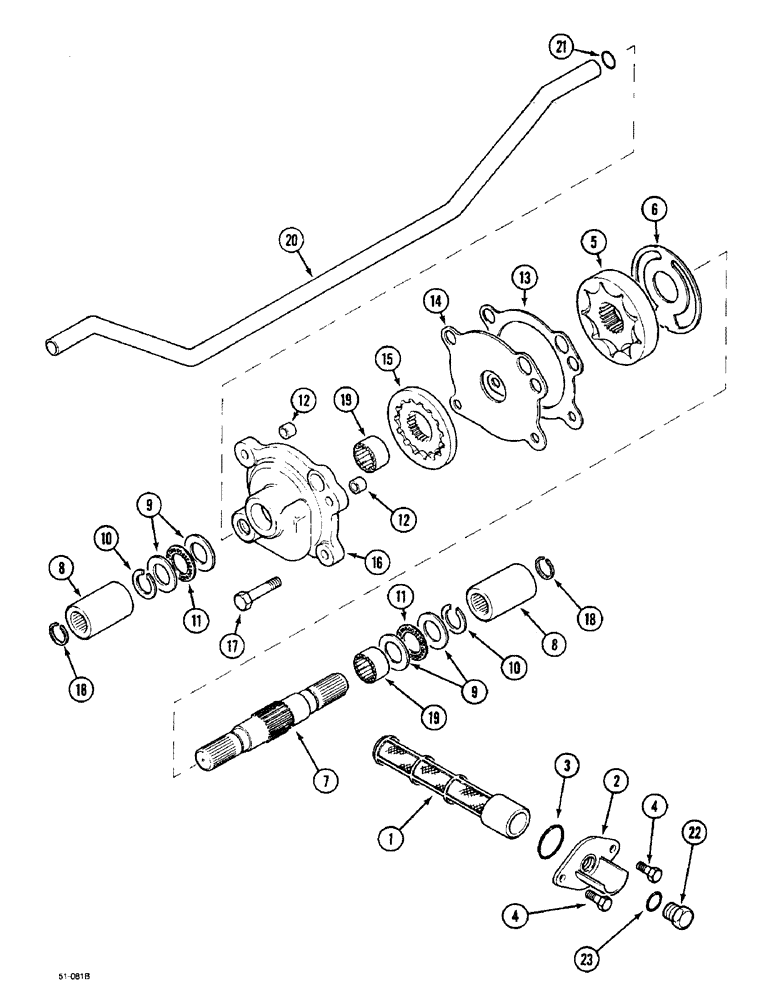

Запчасти Case IH 5150 (6-098) - OIL PUMP AND FILTER (06) - POWER TRAIN

1

A186988

SCREEN

filter

1шт.

2

1995071C2

COVER ASSY

1шт.

3

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

62531 Trans No.: JKA55246 -

1шт.

3

1341104C2

GASKET

62531 Trans No.: - JKA55245

1шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

115463A1

ROTOR

GEAR set 62531, 5120, 5130, 5140, Trans No.: JKA67970 -

1шт.

5

115463A1

ROTOR

GEAR set, 62531, 5150, Trans No.: JKA62944 -

1шт.

5

A188587

ROTOR

GEAR set, 62531, 5120, 5130, 5140, Trans No.: - JKA67969

1шт.

5

A188587

ROTOR

GEAR set, 62531, 5150, Trans No.: - JKA62943

1шт.

6

233253A1

LARGE PLATE

PLATE, LARGE

1шт.

7

1341087C1

SHAFT

1шт.

8

1341089C1

SPLINED COUPLING

2шт.

9

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

BEARING thrust

4шт.

10

H758896

SNAP RING,#112, Ext

#112, Ext

2шт.

11

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

thrust

2шт.

12

A188710

BUSHING

SLEEVE

2шт.

13

A188103

SHIM,116mm ID x 138mm OD x 0.05mm Thk

Adjusting, 62531 Red

1шт.

13

A188104

SHIM,116mm ID x 140mm OD x 0.13mm Thk

Adjusting, 62531 Blue

1шт.

14

A188691

PLATE

separator

1шт.

15

A188035

ROTOR

GEAR set

1шт.

16

1345684C1

HOUSING

1шт.

17

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

18

R16289

SNAP RING,1.06", Int, #106

1.06", Int, #106

2шт.

19

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

needle

2шт.

20

A188079

TUBE

1шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

22

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

PLUG

1шт.

23

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.
