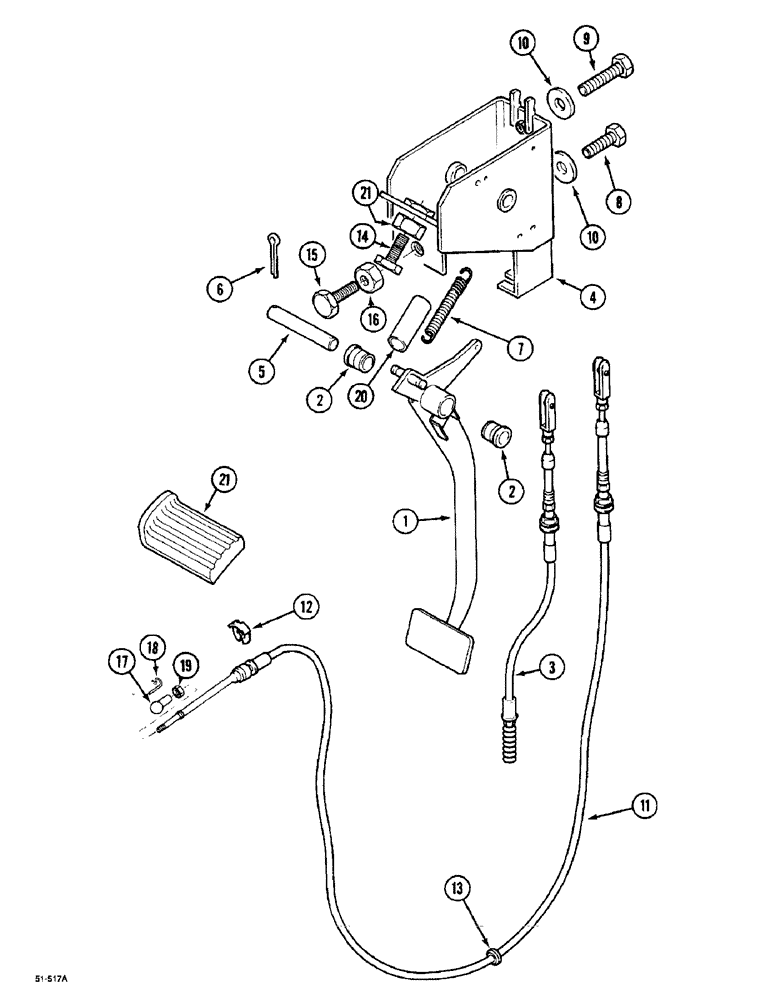

Запчасти Case IH 5150 (6-096) - INCHING PEDAL, (JJF1030000 - ) (06) - POWER TRAIN

1

120909A1

PEDAL ASSY.

65010 Includes: 2

1шт.

2

1990753C1

PLASTIC RING

BUSHING

2шт.

3

REF

INSTRUCTION

CABLE, 65020 Interlock See Figure: 6-54

1шт.

4

120099A1

SUPPORT ASSY.

1шт.

5

1330870C1

PIN

1шт.

6

732-5050

COTTER PIN,M5 x 50

2шт.

7

120912A1

SPRING

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

1534619C1

PACKAGE, REPAIR

65020 Includes: 11-13

1шт.

11

120556A1

CABLE ASSY.

1шт.

12

3223258R2

CIRCLIP

retaining

1шт.

13

124544A1

GROMMET

1шт.

14

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

15

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

1шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

17

906017R1

BALL JOINT

SOCKET

1шт.

18

NSS

NOT SOLD SEPARAT

COLLAR, 65020 Order: 906017R1

1шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

20

141461A1

HOSE,30 mm ID x 110.00 mm

110 mm (4-3/8 in), 65010 Right Use With: 7

1шт.

21

1958504C1

SKID/SHOE

PAD

1шт.
