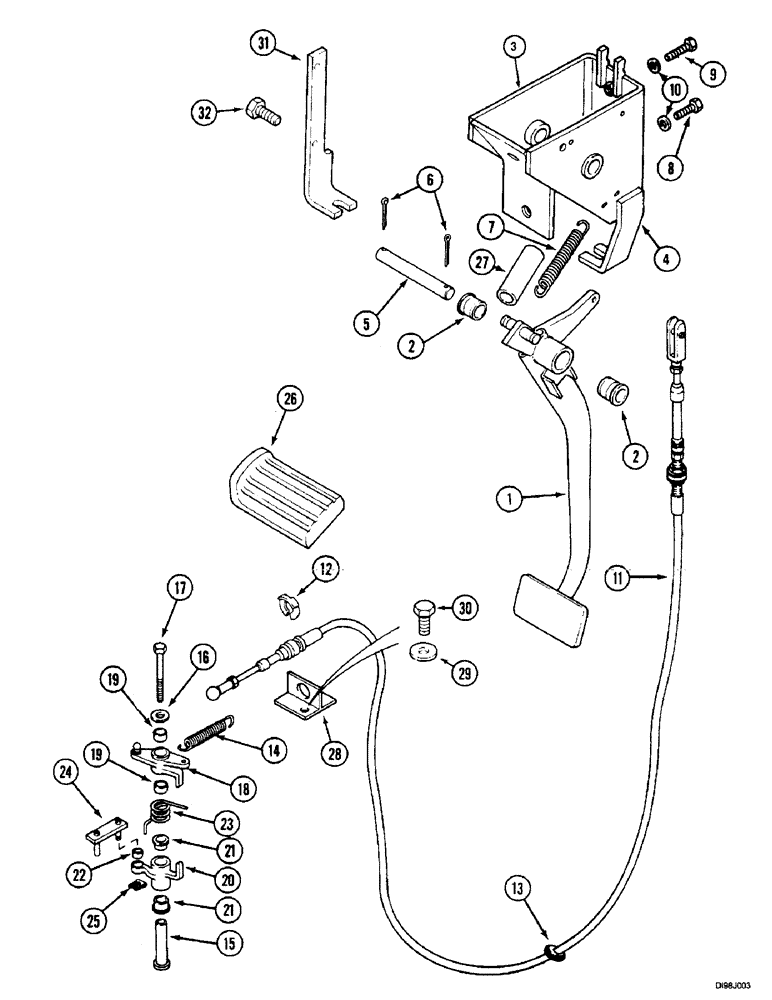

Запчасти Case IH 5150 (6-094) - INCHING PEDAL, ( - JJF1029999) (06) - POWER TRAIN

1

1989981C1

PEDAL ASSY.

65010 Includes: 2

1шт.

2

3226548R1

BUSHING

2шт.

1534562C1

SUPPORT ASSY.

65010 Includes: 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET ASSY.

1шт.

4

1534537C1

SUPPORT

65010 Interlock

1шт.

5

1330870C1

PIN

1шт.

6

732-5050

COTTER PIN,M5 x 50

2шт.

7

1958739C2

SPRING

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

1534504C1

CABLE ASSY.,1630mm L

1шт.

12

T101638

CLIP

1шт.

13

1534563C1

GROMMET

1шт.

14

3221761R1

SPRING

1шт.

15

T102711

BUSHING

1шт.

16

T102716

WASHER

1шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

18

1533552C1

LEVER ASSY.

65010 Includes: 19

1шт.

19

1533537C1

PLASTIC RING

BUSHING

2шт.

20

1533553C1

LEVER ASSY.

65010 Includes: 21, 22

1шт.

21

1533539C1

PLASTIC RING

BUSHING

2шт.

22

1533533C1

PLASTIC RING

BUSHING

1шт.

23

T102710

SPRING

1шт.

24

T104129

PLATE ASSY.

BAR

1шт.

25

T102674

CLIP

1шт.

26

1958504C1

SKID/SHOE

PAD, 65010 Rubber

1шт.

27

1534338C1

HOSE

65010 Use With: 7

1шт.

28

1534588C1

SUPPORT

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

31

107205A1

SUPPORT

1шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.
