Запчасти Case IH 5150 (6-086) - FORWARD AND REVERSE SHUTTLE VALVE, ( - JJF1029999) (06) - POWER TRAIN

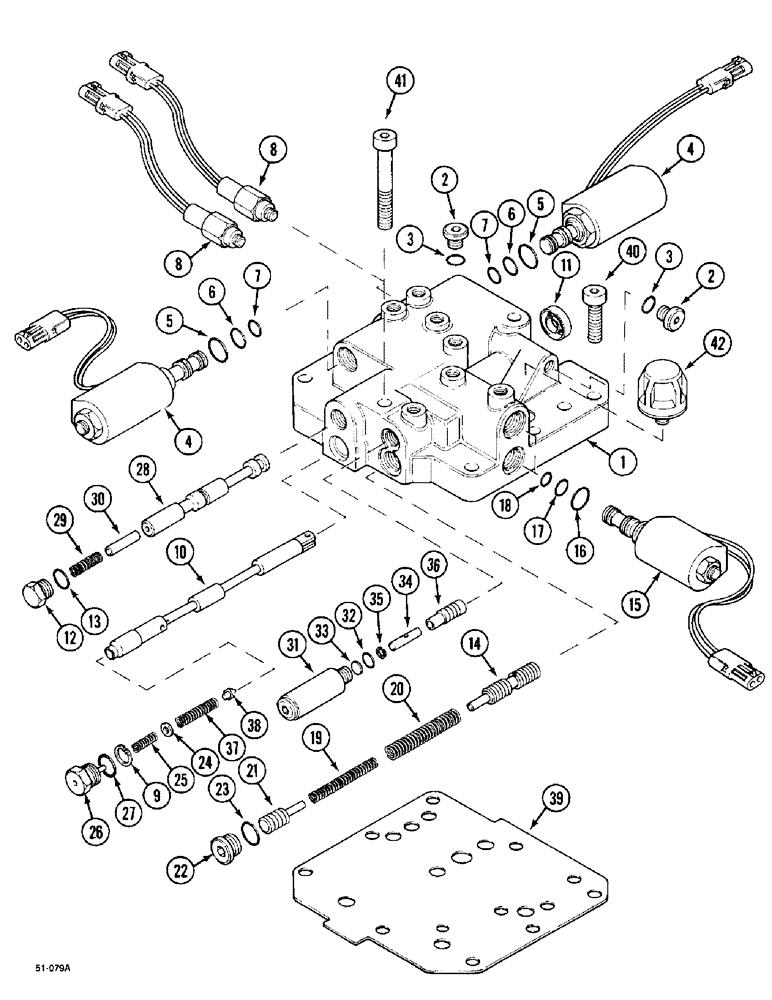

Схема запчастей Case IH 5150 - (6-086) - FORWARD AND REVERSE SHUTTLE VALVE, ( - JJF1029999) (06) - POWER TRAIN
19
27
1
3
31
36
32
6
12
24
7
30
37
33
29
28
40
17
25
26
8
39
7
16
20
18
21
4
2
4
6
35
22
38
11
23
5
13
9
42
15
34
3
5
14
10
8
41
2

Артикул

Название

Примечание

Количество

117547A3

VALVE

control, 62151 Trans No. : JKA67970 - Consists Of: 1-37

1шт.

NSS

NOT SOLD SEPARAT

VALVE control, 62151, 5120, 5130, 5140, Trans No.: - JKA67969 Consists Of: 1-37

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

62151 Incl 3

3шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

118872A1

VALVE

solenoid, 46039 Solenoid Includes: 5, 6, 7

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

7

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

8

121767A1

SWITCH

46039 Pressure

2шт.

9

1341923C1

RING

1шт.

10

1341922C1

SPOOL

1шт.

11

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

62151 Incl Ref 13

3шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

1971792C2

SPOOL

1шт.

15

1971474C3

SOLENOID

46039 Solenoid Includes: 16, 17, 18

2шт.

16

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

17

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

19

1346331C1

SPRING

72 mm, 62151 Inner

1шт.

20

1971794C1

VALVE SPRING

96.5 mm, 62151 Outer

1шт.

21

1971793C1

PISTON

1шт.

22

86625138

PLUG,7/18" - 14

62151 Includes 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

1шт.

25

A61988

SPRING

62151 Secondary

1шт.

26

A61985

PLUG

62151 Includes: 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

1980109C1

SPOOL

1шт.

29

1980108C1

SPRING

1шт.

30

A183694

SPACER

1шт.

31

1976956C1

VALVE

control, 62151 Includes: 32, 42

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

1954071C1

WASHER

adjusting

1шт.

34

1971836C1

SPOOL

1шт.

35

1976933C1

RING

1шт.

36

1978045C3

FILTER CARTRIDGE

1шт.

37

1978381C1

SPRING

1шт.

38

A61991

POINT

1шт.

39

A188208

GASKET

1шт.

40

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

6шт.

41

861-10090

HEX SOC SCREW,M10 x 90mm, Cl 12.9

M10 x 90; 12.9

2шт.

42

1971726C1

BREATHER,1/4" - 18

ASSY.

1шт.

Выбрано товаров: 44
