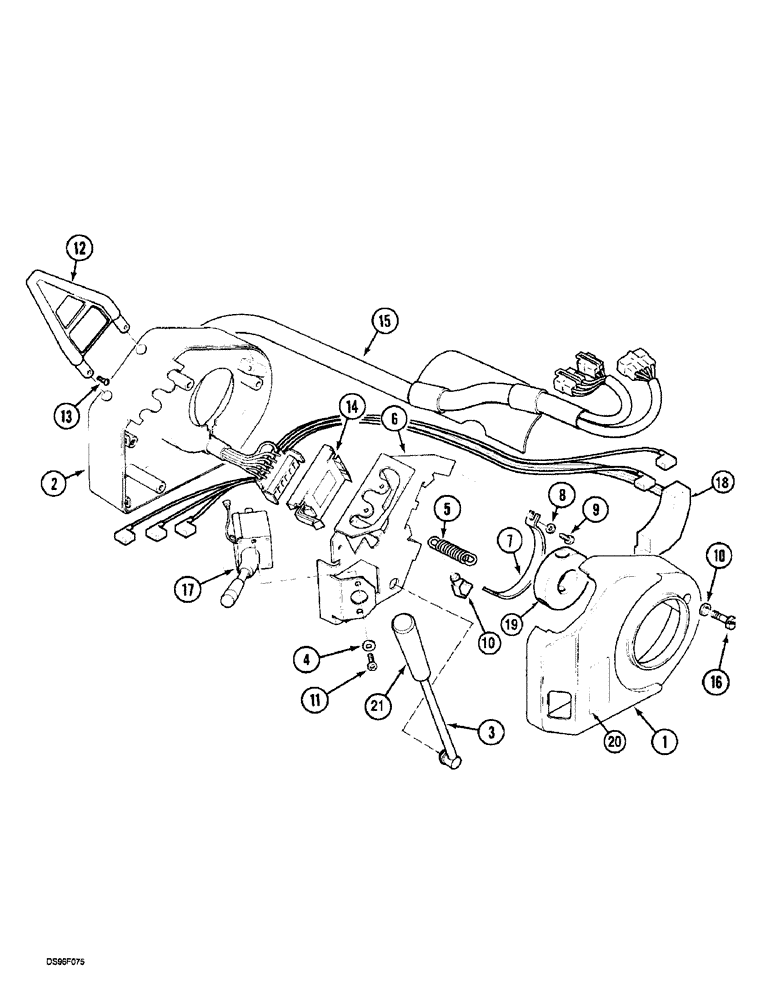

Запчасти Case IH 5150 (6-084) - FORWARD / NEUTRAL / REVERSE CONTROLS, (JJF1030000 - ) (06) - POWER TRAIN

122485A5

CASE ASSY.

control, 65010 ( - Maxxum Pro) Consists Of: 1-15, 16, 17

1шт.

246629A1

CASE ASSY.

control, 65010 (Maxxum Pro - ) Automatic Return Consists Of: 1-15A, 16, 17A, 18, 19

1шт.

1

130483A2

COVER

1шт.

2

130484A2

COVER

1шт.

144629A2

LEVER ASSY.

65010 Includes: 3

1шт.

3

196255A1

LEVER

1шт.

4

892-11004

LOCK WASHER,M4

6шт.

5

144630A1

SPRING

1шт.

144626A2

SUPPORT ASSY.

65010 Includes: 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

8

893-16005

LOCK WASHER,Int Tooth, M5

1шт.

9

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

241096A1

PLASTIC RING

BUSHING

1шт.

11

840-146

SCREW,Pan, M4 x 6mm, Cl 4.8

CL 4.8

2шт.

12

144625A1

PROTECTOR

ASSY.

1шт.

13

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

14

144631A1

TOGGLE SWITCH

SWITCH

1шт.

15

144632A2

CABLE ASSY.

40150 Turn Signal Used With : 122485A5

1шт.

15a

NSS

NOT SOLD SEPARAT

HARNESS, 40150 Turn Signal Used With : 246629A1 Includes: 19

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

17

123656A1

SWITCH ASSY

41511 Used With: 122485A5

1шт.

17a

246625A1

FLASHER SWITCH

41511 Automatic Return Used With: 246629A1

1шт.

18

246626A1

SENSOR

41511 Automatic Return Used With: 246629A1

1шт.

19

246627A1

RING

41511 Used With: 246629A1 Magnetic

1шт.

20

REF

INSTRUCTION

DECAL, 41511 Used With : 246629A1 See Figure: 9H-28

1шт.

21

1981858C1

HANDLE

1шт.
