(6-082) - FORWARD AND REVERSE CONTROLS, (JJF1017718 - JJF1029999)

Запчасти Case IH 5150 (6-082) - FORWARD AND REVERSE CONTROLS, (JJF1017718 - JJF1029999) (06) - POWER TRAIN

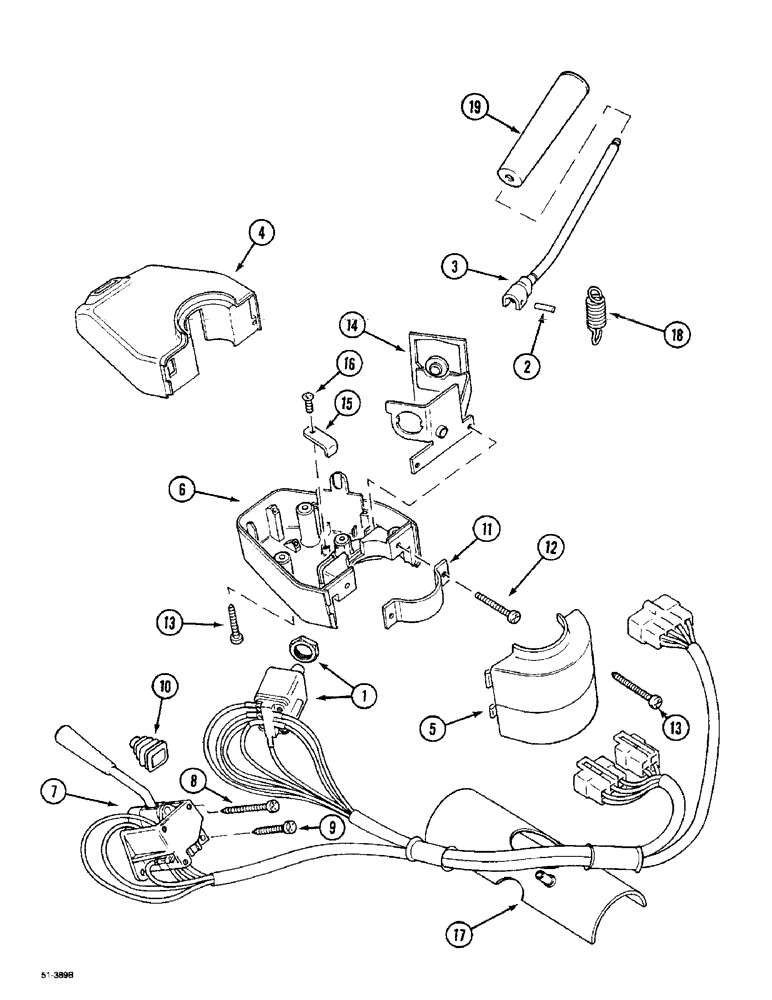

Схема запчастей Case IH 5150 - (6-082) - FORWARD AND REVERSE CONTROLS, (JJF1017718 - JJF1029999) (06) - POWER TRAIN
3
18
17
12
11
16
10
1
14
15
6
5
9
4
19
13
2
13
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1534406C2

SWITCH ASSY

41510 Forward-Reverse

1шт.

2

1530837C1

PIN

1шт.

3

1530835C1

LEVER

1шт.

4

1534402C2

COVER

65010 Upper

1шт.

5

1534403C2

COVER

65010 Rear

1шт.

6

1534401C2

CASE

COVER, 65010 Lower

1шт.

7

1534417C2

FLASHER SWITCH

41511 Flasher - Horn

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW

2шт.

10

1534404C1

BELLOWS

BOOT, 65010 Rubber

1шт.

11

1534405C1

SUPPORT

1шт.

12

905655R1

SCREW,Pan Cross Recess Machine, M4 x 40mm, Cl 4.8

4 x 40 mm

2шт.

13

905976R1

SELF-TAP SCREW,Pan Hd, M3.9 x 25

3.8 x 25 mm

4шт.

14

1530838C1

SUPPORT ASSY.

1шт.

15

1530833C1

PLATE

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW

1шт.

17

1534481C2

SUPPORT ASSY.

1шт.

18

1534416C2

SPRING

1шт.

19

1981858C1

HANDLE

1шт.

117316A1

SET OF PARTS

65010 Hardware Includes: 8-13, 15, 16

1шт.
