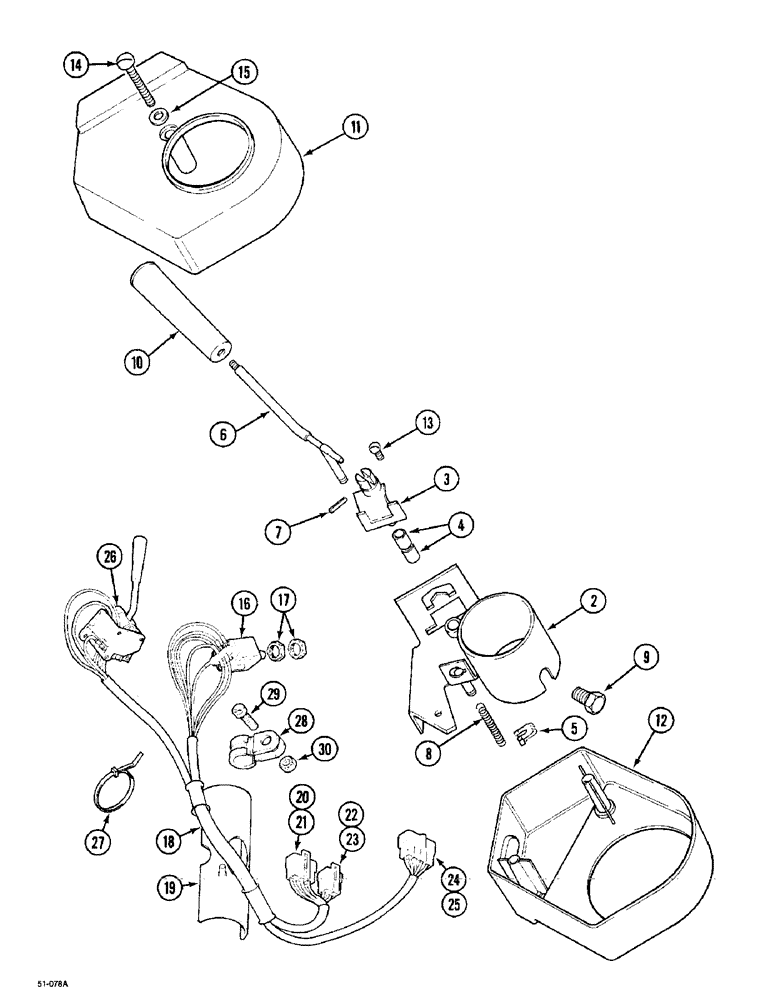

Запчасти Case IH 5150 (6-080) - FORWARD AND REVERSE CONTROLS, ( - JJF1017717) (06) - POWER TRAIN

2

1977484C3

BRACKET

1шт.

3

1977481C3

PIVOT

65010 Forward-Reverse

1шт.

4

1977467C1

BUSHING

2шт.

5

T102627

CLIP

1шт.

6

1977465C2

LEVER

65010 Forward-Reverse

1шт.

7

738-3318

PIN,M3 x 18, Coiled

1шт.

8

1977770C1

SPRING

1шт.

9

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

10

1981858C1

HANDLE

1шт.

11

1971217C3

COVER

65010 Upper

1шт.

12

1971218C3

COVER

65010 Lower

1шт.

13

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

14

31366R1

SCREW,Cross Pan Hd, M6 x 45

6 x 45 mm

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

137112A1

KIT

41510 Includes: 16-30

1шт.

1340094C2

SWITCH ASSY

41510 Forward-Reverse Includes: 16, 17, 20 - 23

1шт.

16

140936A1

SWITCH

41510 Includes: 17

1шт.

17

NSS

NOT SOLD SEPARAT

2шт.

18

141334A1

CABLE SHEATH

CONDUIT, 560 mm

1шт.

19

1534481C2

SUPPORT ASSY.

1шт.

20

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR 41510

1шт.

21

225113C1

TERMINAL CONNECTOR,Male, 0.8 mm2

6шт.

22

255057C1

CONNECTOR, ELEC

CONNECTOR 41510

1шт.

23

225113C1

TERMINAL CONNECTOR,Male, 0.8 mm2

3шт.

24

3197443R1

TERMINAL CONNECTOR

6 Junct, 41510

1шт.

25

225179C1

TERMINAL CONNECTOR,1

6шт.

26

140935A1

SWITCH ASSY

41511 Turn Signal

1шт.

27

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

1шт.

28

143341A1

CLAMP

1шт.

29

840-1818

SCREW,Pan, M8 x 18mm, Cl 4.8

8 x 18 mm

1шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
