Запчасти Case IH 5150 (6-076) - POWERSHIFT MANIFOLD AND TUBES (06) - POWER TRAIN

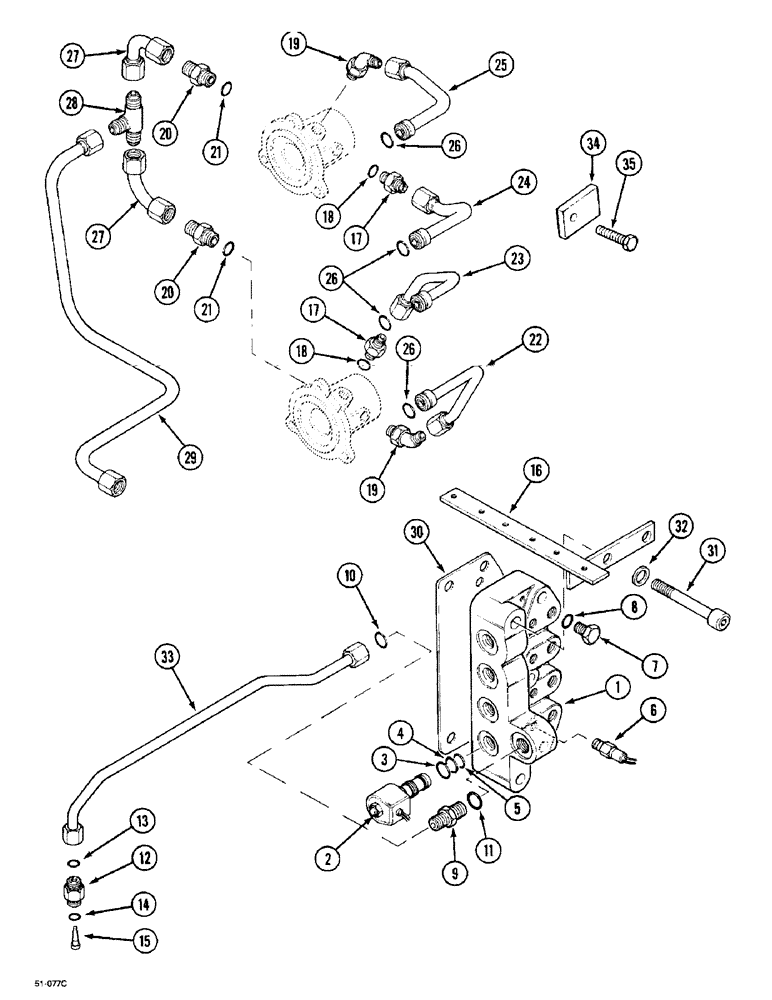

Схема запчастей Case IH 5150 - (6-076) - POWERSHIFT MANIFOLD AND TUBES (06) - POWER TRAIN
9
27
2
5
18
17
8
20
34
32
31
1
21
28
19
12
17
19
15
6
4
10
3
22
7
26
13
16
26
24
26
21
25
18
23
35
11
14
30
27
33
20
29

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

MANIFOLD ASSY., 62317 Consists Of: 1-8

1шт.

1

1986629C1

BODY

1шт.

2

118872A1

VALVE

solenoid, 46039 Solenoid Includes: 3, 4, 5

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

144467A2

PRESSURE SWITCH

100-120 psi

4шт.

7

9672438

PLUG,7/16" - 20 ORB

62315, Incl. 8

4шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

62315, Includes 10, 11

1шт.

9

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

62315 Trans No.: - JKA507990 without Accumulator Incl. 10, 11

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

1980118C1

VALVE

check Includes: 13, 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

1980065C2

SCREEN

filter

1шт.

16

T102974

BRACKET

62315, 5120, 5130, 5140, Serial Range: -JJF1017160

1шт.

16

1534602C1

SUPPORT ASSY.

62315, Start Serial: JJF1017161

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

62315, Incl. 18

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 9/16 fl x Or

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4 fl x Or, 62315 Incl. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

1995049C1

PIPE

ASSY., 62315 Clutch : 4

1шт.

23

1995045C1

PIPE

ASSY., 62315 Clutch : 2

1шт.

24

1995043C1

PIPE

ASSY., 62315 Clutch : 1

1шт.

25

1995047C1

PIPE

ASSY., 62315 Clutch : 3

1шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

4шт.

27

A175947

TUBE

ASSY.

2шт.

28

218-594

TEE,3/4"-16, 37 Degree

1шт.

29

A186421

TUBE

ASSY.

1шт.

30

139884A1

GASKET

1шт.

31

861-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M10 x 70; 12.9

5шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

33

1530725C1

PIPE

ASSY., 62315 With Accumulator Trans No.: JKA62038 -

1шт.

33

1530645C1

PIPE

ASSY., 62315 Without Accumulator Trans No.: JKA50990 -

1шт.

33

T104472

PIPE

ASSY., 62315 Without Accumulator Trans No.: - JKA50990

1шт.

34

1997126C1

RETAINER

2шт.

35

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 40
