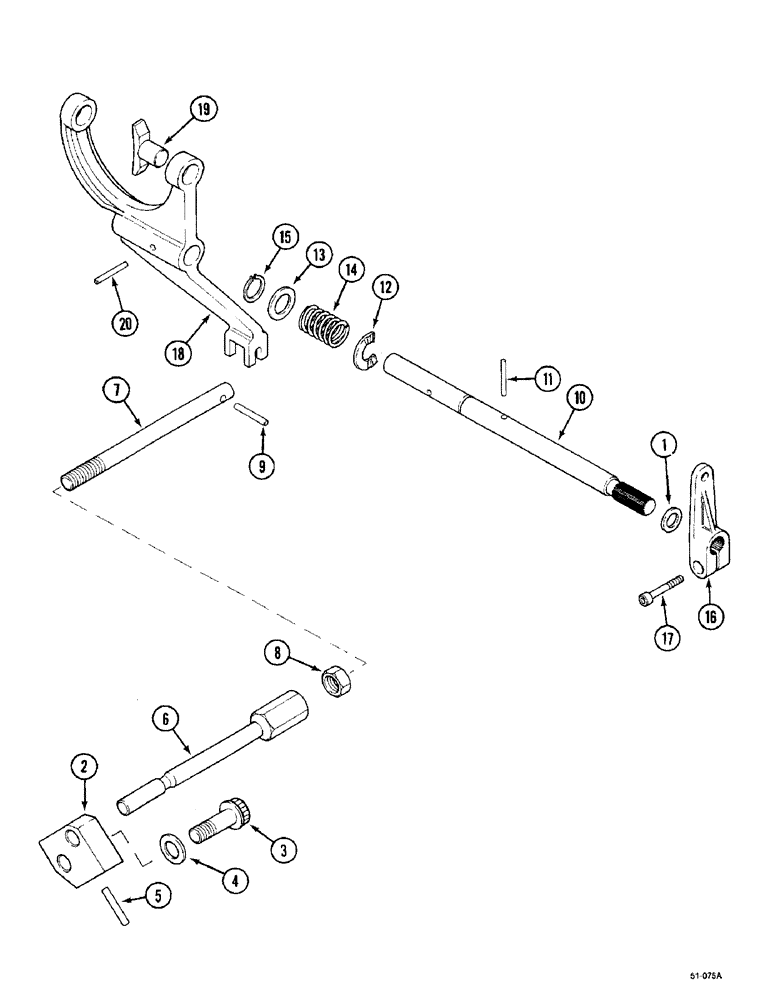

Запчасти Case IH 5150 (6-070) - CREEP SPEED CONTROL, INTERNAL (06) - POWER TRAIN

1

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

oil, 62511 Trans No. : - JKA68259

1шт.

2

1345779C1

HOUSING

62511 Trans No. : - JKA68259

1шт.

3

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

62511 Trans No.: - JKA68259

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, 62511 Trans No.: - JKA68259

1шт.

5

A188005

PIN

62511 Trans No.: - JKA68259

1шт.

6

A188009

ROD

62511 Interlock Trans No.: - JKA68259

1шт.

7

A188010

ROD

62511 Front Trans No.: - JKA68259

1шт.

8

829-1412

NUT,M12, Cl 10.9

62511 Trans No.: - JKA68259

1шт.

9

138-134

LOCK PIN,1/4" x 1", Slotted

62511 Trans No.: - JKA68259

1шт.

1341000C1

SHAFT

Assy, 62511 Includes 10-15

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

11

37-1424

DOWEL,1/4" x 1 1/2"

dowel 1/4 x 1-1/2 in

1шт.

12

A190098

WASHER, THRUST

1шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

14

G35350

SPRING

1шт.

15

100-1662

SNAP RING,#62, Ext

1шт.

16

1531292C1

LEVER

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW

1шт.

1345959C1

CLUTCH FORK

ASSY., 62511 Trans No.: JKA68260 - Includes: 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

19

A178445

FINGER

2шт.

1341002C1

CLUTCH FORK

ASSY., 62511 Trans No.: - JKA68259 Includes: 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

19

A178445

FINGER

2шт.

20

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

1/4" x 1 1/4", Type A

1шт.
