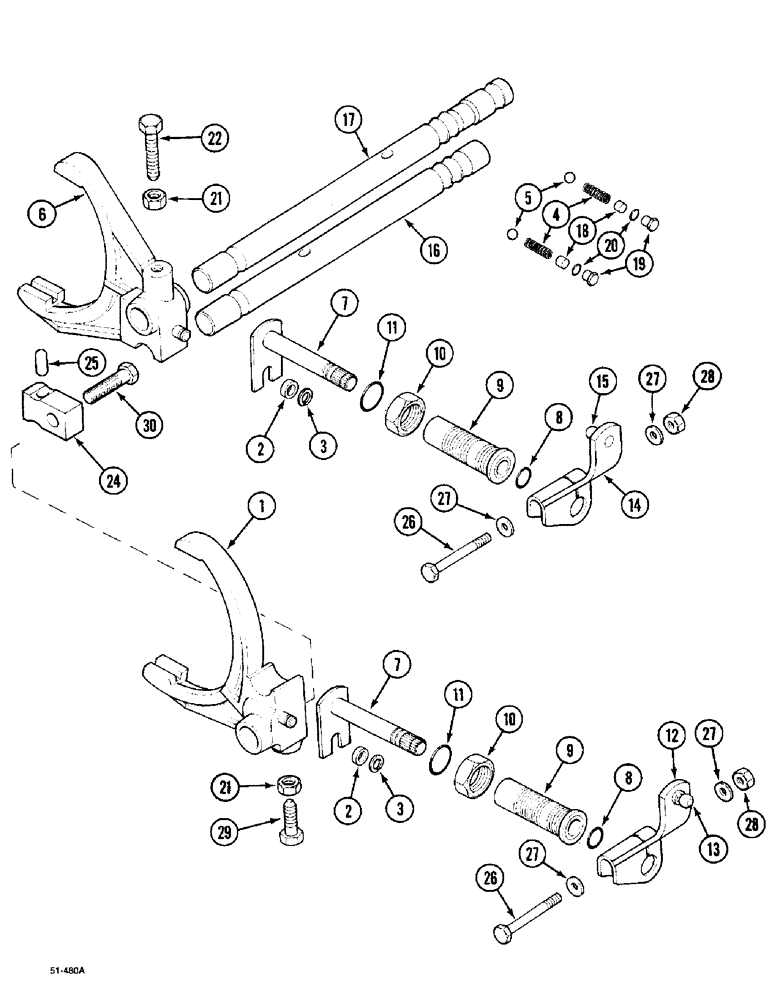

Запчасти Case IH 5150 (6-066) - RANGE SHIFT LINKAGE, (JJF1030000 - ) (06) - POWER TRAIN

1

A188235

FORK

62511 1st And 2nd Gear

1шт.

2

A178954

SLEEVE

BUSHING

2шт.

3

100-3344

SNAP RING,#X43, .438" Dia, E-Type

2шт.

4

A175972

SPRING

2шт.

5

211-262

BALL,7/16 Dia

2шт.

6

A188237

FORK

62511 3rd And 4th Gear

1шт.

7

1341113C1

LEVER

2шт.

8

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

9

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

10

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

1341116C1

LEVER

ASSY., 62511 1st And 2nd Gear Includes : 13

1шт.

13

3234708R1

BALL STUD

BALL PIN

1шт.

14

1341117C1

LEVER

ASSY., 62511 3rd And 4th Gear Includes : 15

1шт.

15

3234708R1

BALL STUD

BALL PIN

1шт.

16

1995079C1

SLIPPER

RAIL ASSY., 62511 1st And 2nd Gear

1шт.

17

1995078C1

SLIPPER

RAIL ASSY., 62511 3rd And 4th Gear

1шт.

18

A186518

SPACER

2шт.

19

129998

PLUG,1/2" - 20 ORB

62511 Incl. 20

2шт.

21

829-1310

NUT,M10, Cl 10

2шт.

22

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

24

1995497C1

SUPPORT

1шт.

25

A186962

PIN,10.1mm OD x 23.53mm L

1шт.

26

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

27

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

829-1412

NUT,M12, Cl 10.9

2шт.

29

1345714C1

BOLT,Hex, M10 x 30mm, Cone Pt

M10 x 30

1шт.

30

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

20

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.
