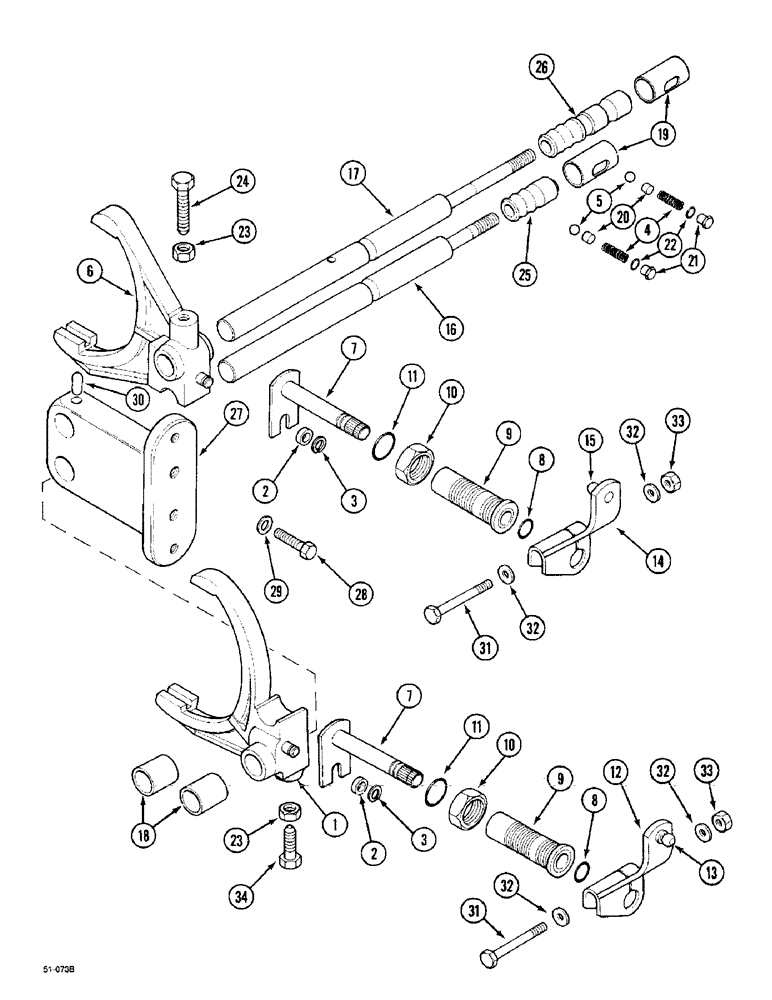

Запчасти Case IH 5150 (6-064) - RANGE SHIFT LINKAGE, ( - JJF1029999) (06) - POWER TRAIN

1

A188235

FORK

62511 1st And 2nd Gear

1шт.

2

A178954

SLEEVE

BUSHING

2шт.

3

A183147

SNAP RING,#X43, .375" Dia, E-Type

#X43, .375" Dia, E-Type

2шт.

4

A175972

SPRING

2шт.

5

211-262

BALL,7/16 Dia

2шт.

6

A188237

FORK

62511 3rd And 4th Gear

1шт.

7

1341113C1

LEVER

2шт.

8

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

9

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

10

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

1341116C1

LEVER

ASSY., 62511 Includes: 13

1шт.

13

3234708R1

BALL STUD

BALL PIN

1шт.

14

1341117C1

LEVER

ASSY., 62511 Includes: 15

1шт.

15

3234708R1

BALL STUD

BALL PIN

1шт.

16

1345716C1

SLIPPER

RAIL ASSY., 62511 1st And 2nd Gear

1шт.

17

1345715C1

SLIPPER

RAIL ASSY., 62511 3rd And 4th Gear

1шт.

18

A186578

BUSHING

2шт.

19

A186972

BUSHING

2шт.

20

A186518

SPACER

2шт.

21

129998

PLUG,1/2" - 20 ORB

62511 Incl. 22

2шт.

23

829-1310

NUT,M10, Cl 10

2шт.

24

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

25

A186920

ARRESTER

DETENT

1шт.

26

A186949

ARRESTER

DETENT

1шт.

27

A190089

BRACKET

1шт.

28

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

29

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5 mm

2шт.

30

A186962

PIN,10.1mm OD x 23.53mm L

1шт.

31

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

32

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

33

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

34

1345714C1

BOLT,Hex, M10 x 30mm, Cone Pt

M10 x 30

1шт.

22

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.
