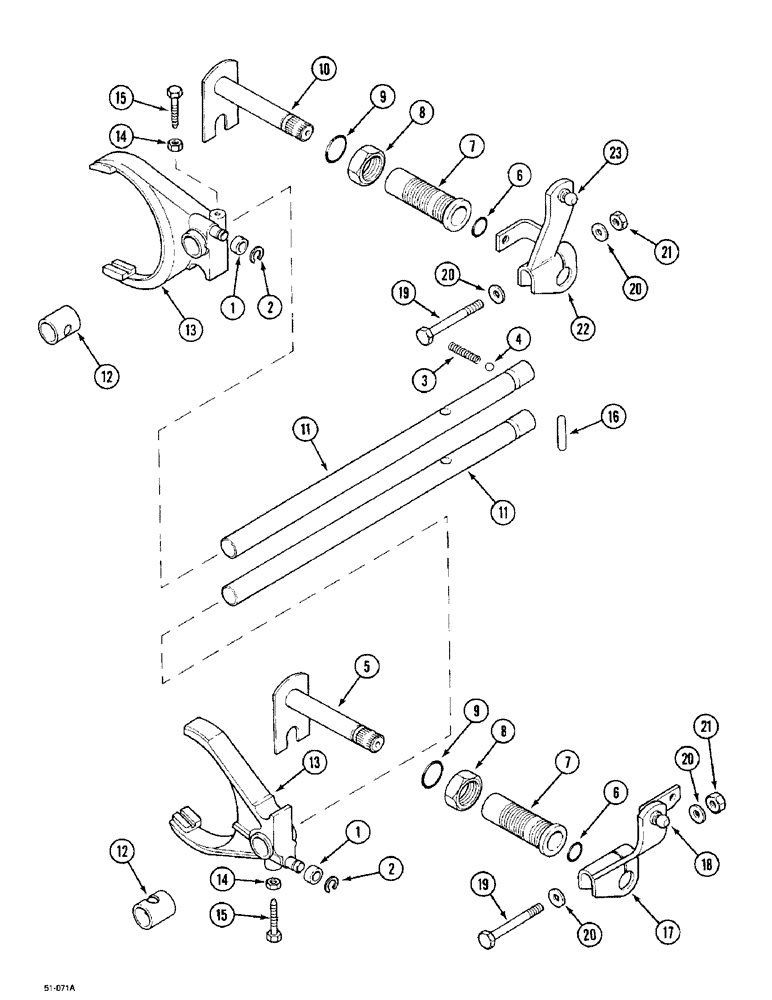

Запчасти Case IH 5150 (6-058) - GEAR SHIFT AND LINKAGE, SYNCHROMESH (06) - POWER TRAIN

1

A178954

SLEEVE

BUSHING

2шт.

2

A183147

SNAP RING,#X43, .375" Dia, E-Type

#X43, .375" Dia, E-Type

2шт.

3

A175972

SPRING

2шт.

4

211-262

BALL,7/16 Dia

2шт.

5

1341111C1

LEVER

62511 1st and 2nd Speed

1шт.

6

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

7

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

8

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

10

1341112C1

LEVER

62511 3rd and 4th Speed

1шт.

11

1345717C1

SHIFT RAIL

2шт.

12

A188130

BUSHING

4шт.

13

A188233

FORK

2шт.

14

829-1310

NUT,M10, Cl 10

2шт.

15

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

16

A188132

PIN

1шт.

17

1341122C1

LEVER

ASSY., 62511 1st and 2nd Speed Includes: 18

1шт.

18

3234708R1

BALL STUD

BALL PIN

1шт.

19

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

20

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

1341123C1

LEVER

ASSY., 62511 3rd and 4th Speed Includes: 23

1шт.

23

3234708R1

BALL STUD

BALL PIN

1шт.
