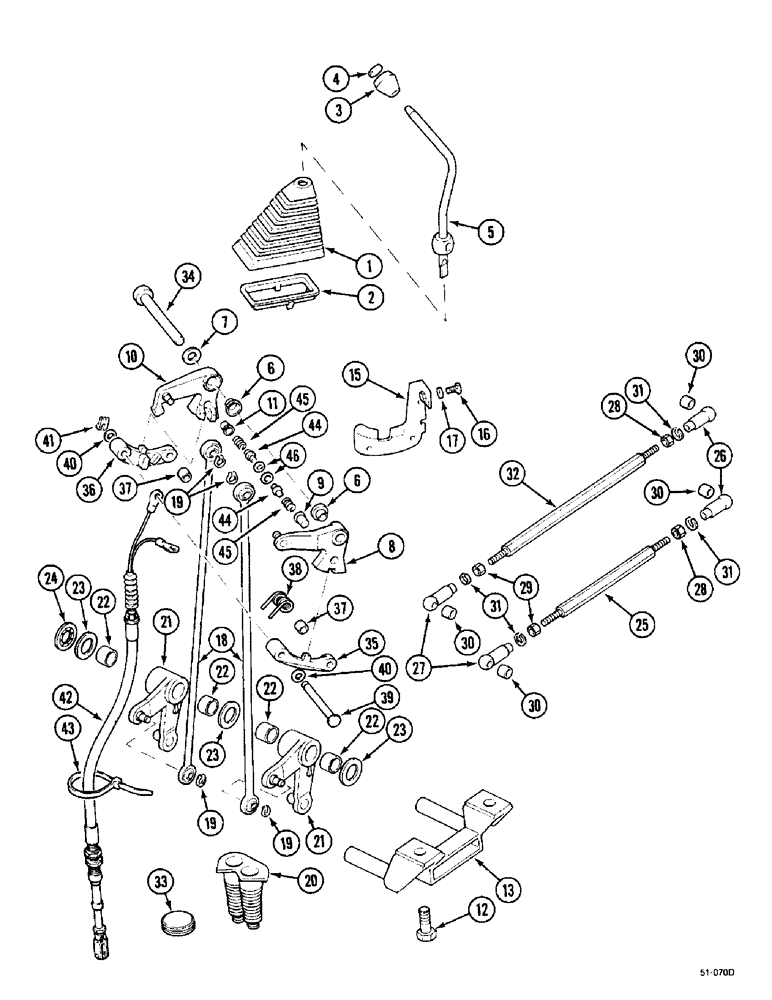

Запчасти Case IH 5150 (6-054) - GEAR SHIFT CONTROLS (06) - POWER TRAIN

1

1533271C1

BOOT

1шт.

2

1533264C1

FRAME

1шт.

3

1958950C3

HANDLE GRIP

65010 Includes: 4

1шт.

4

1958918C2

INSERT

1шт.

5

1533622C1

ARM

1шт.

6

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

7

T102056

WASHER

1шт.

8a

195153A1

ARM ASSY.

65010 Right (JJF1047000 - )

1шт.

8b

1999890C1

ARM ASSY.

65010 Right ( - JJF1046999) Includes: 9

1шт.

9

1534604C1

BUSHING

1шт.

10

1534650C1

ARM

65010 Left Includes: 11, Serial Range: -JJF1029999

1шт.

10

225145A1

ARM ASSY.

65010 Left Includes: 11, Start Serial: JJF1030000

1шт.

11

1534604C1

BUSHING

1шт.

12

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

2шт.

13

T103301

BRACKET

1шт.

15

131748A1

SUPPORT ASSY.

HOLDER

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

1534512C1

ROD ASSY.

2шт.

19

T102202

CIRCLIP

4шт.

20

1999908C1

BOOT

1шт.

21

1533551C2

ARM ASSY.

65010 Includes: 22

2шт.

22

1533538C1

PLASTIC RING

BUSHING

2шт.

23

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

3шт.

24

1533658C1

CLAMP,19.4mm ID x 36.5mm OD x 3mm Thk

1шт.

25

T103468

ROD

65020 1st and 2nd Speed

1шт.

26

T103566

BALL JOINT

SOCKET

2шт.

27

T103567

BALL SOCKET,M8

SOCKET, 65020 LH Thread

2шт.

28

825-1408

NUT,M8, Cl 8

2шт.

29

905758R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

M8, 65020 LH Thread

2шт.

30

3399689R2

WASHER,8mm ID x 20mm OD x 7.5mm Thk

SEAL

4шт.

31

3233348R1

CLIP

RING retaining

4шт.

32

T103467

ROD

65020 3rd and 4th Speed

1шт.

33

T103079

PLUG

1шт.

34

1533898C1

STUD,27mm OD x 160mm L

1шт.

35

120188A2

PAWL

65010 Right

1шт.

36

120189A1

PAWL

65010 Left

1шт.

37

120191A2

SPACER

2шт.

38

131688A2

SPRING

1шт.

39

120190A1

HEADED PIN

6 x 45 mm

2шт.

40

933907R1

WAVE WASHER,M6.4 ID x 12 OD x .5 Thk

4шт.

41

T102674

CLIP

2шт.

42

120192A1

CABLE

65020 Interlock Synchromesh

1шт.

42

120193A1

CABLE

65020 Interlock Powershift

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

44

T102057

SPLIT PIN/SAFETY PIN

2шт.

45

T102181

SPRING

2шт.

46

T103051

CIRCLIP

retaining

2шт.

221521A1

SET OF PARTS

65010 Synchromesh 2nd Gear, Includes: 8A, 10, 14-16, 35-41, 42, Serial Range: -JJF1046999

1шт.
