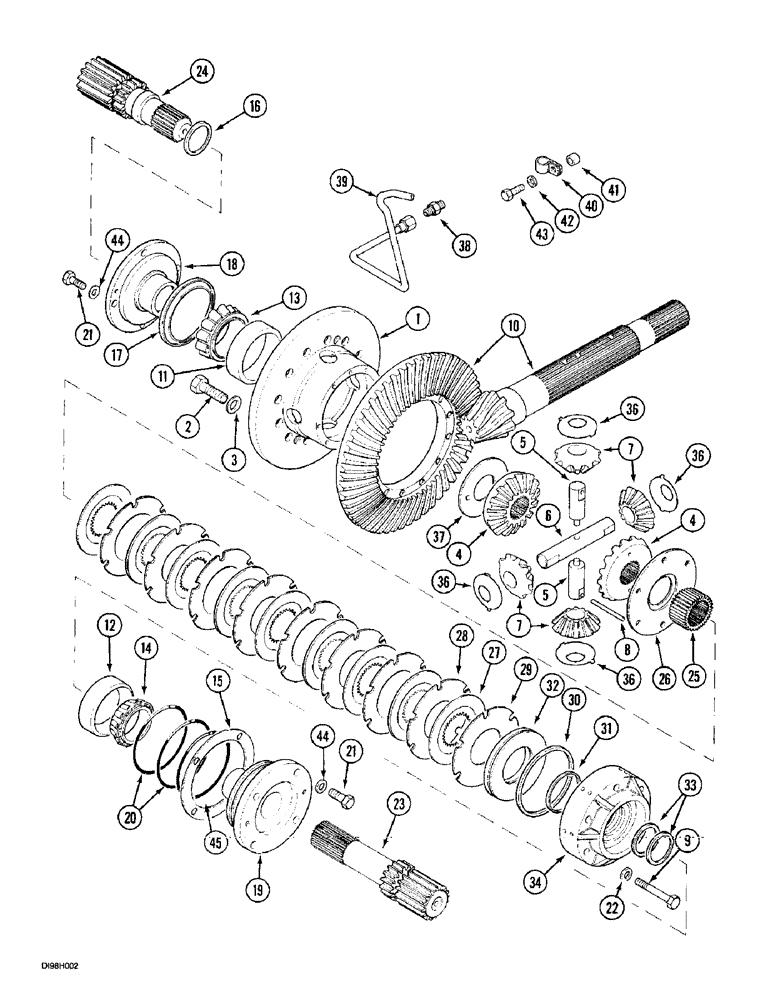

Запчасти Case IH 5150 (6-048) - TRANSMISSION - DIFFERENTIAL (06) - POWER TRAIN

1

298932A1

FLANGE

CARRIER, 60003 Trans No. : JKA22502 -

1шт.

1

A190145

CASE

60003, 5120, 5130, 5140, Trans No. : - JKA22501

1шт.

2

854-16045

BOLT,Hvy Hex, M16 x 40mm, Cl 10.9

60003, Start Serial: JJF1012445

12шт.

2

826-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

60003 Hex, M16 x 50, 10.9, Full Thd, Serial Range: -JJF1012444

12шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

60003, Serial Range: -JJF1012444

12шт.

1345842C2

SERVICE KIT

Differential, 60003 Includes: 4-8, 26, 36, 37

1шт.

4

NSS

NOT SOLD SEPARAT

PINION cone

2шт.

5

NSS

NOT SOLD SEPARAT

PIN

2шт.

6

NSS

NOT SOLD SEPARAT

PIN

1шт.

7

NSS

NOT SOLD SEPARAT

SPROCKET

4шт.

8

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

2шт.

9

31375R1

12 PT SCREW,M12 x 90mm, Cl 12.9

12 x 90 mm, 60003 Trans No.: JKA22502 -

6шт.

9

826-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

M10 x 85; 10.9, 60003, 5120, 5130, 5140, Trans No.: - JKA22501

6шт.

10

1341189C3

GEAR, BEVEL

BEVEL GEAR SET, 9/55T includes pn A190455

1шт.

11

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP, 60003 Left

1шт.

12

928330C1

BEARING CUP,110mm OD x 17.46mm W

CUP, 60003 Right

1шт.

13

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE ASY., 60003 Left

1шт.

14

928331C91

ROLLER BEARING,69.98mm ID x 25mm W

CONE ASSY., 60003 Right

1шт.

15

A175236

SHIM,0.08mm Thk

Adjusting

1шт.

15

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Adjusting

1шт.

15

A175238

SHIM,0.25mm Thk

Adjusting

1шт.

15

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Adjusting

1шт.

16

A188495

SEALING RING,48.37mm ID x 55.93mm OD x 2.95mm Thk

SEALRING

1шт.

17

A188501

SEAL,118.02mm ID x 134.07mm OD x 9mm Thk

1шт.

18

1341074C1

FLANGE

CARRIER ASSY.

1шт.

19

1345919C1

BALL RACE

CARRIER ASSY.

1шт.

20

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

21

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

22

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

10 mm

6шт.

22

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

23

A190141

SHAFT

16T

1шт.

24

A188873

SHAFT

16T

1шт.

25

1341293C1

HUB

1шт.

26

1345662C1

DISC

60003 Diff. Reaction Use With : 1345660C1

1шт.

26

A190143

LARGE PLATE

PLATE, LARGE 60003, 5120, 5130, 5140, Diff. Reaction Use With : A190145

1шт.

27

A188853

DISC,68.4mm ID x 136mm OD x 2.13mm Thk

friction

9шт.

28

1345663C1

DISC

separator

8шт.

29

1345661C1

DISC

ASSY., 60003 Piston Return

1шт.

30

A188856

SEALING RING,127.75mm ID x 134.11mm OD x 3.18mm Thk

RING

1шт.

31

A188861

SEAL,78.98mm ID x 83.7mm OD x 3.18mm Thk

RING

1шт.

32

A188851

PISTON

1шт.

33

1345877C1

SEALING RING

SEAL

2шт.

34

1995292C1

CAGE

1шт.

36

124869A1

THRUST WASHER,29mm ID x 65.54mm OD x 2.3mm Thk

thrust

4шт.

37

1345640C1

THRUST WASHER,47.5mm ID x 109mm OD x 3.2mm Thk

thrust

1шт.

38

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

1шт.

39

A188692

HYD TUBE

1шт.

40

S79579

CLAMP

1шт.

41

F21434

SPACER

1шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

43

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

44

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

10 mm

8шт.

45

A188778

SEAL ASSY.

60003 With O-Ring

1шт.
