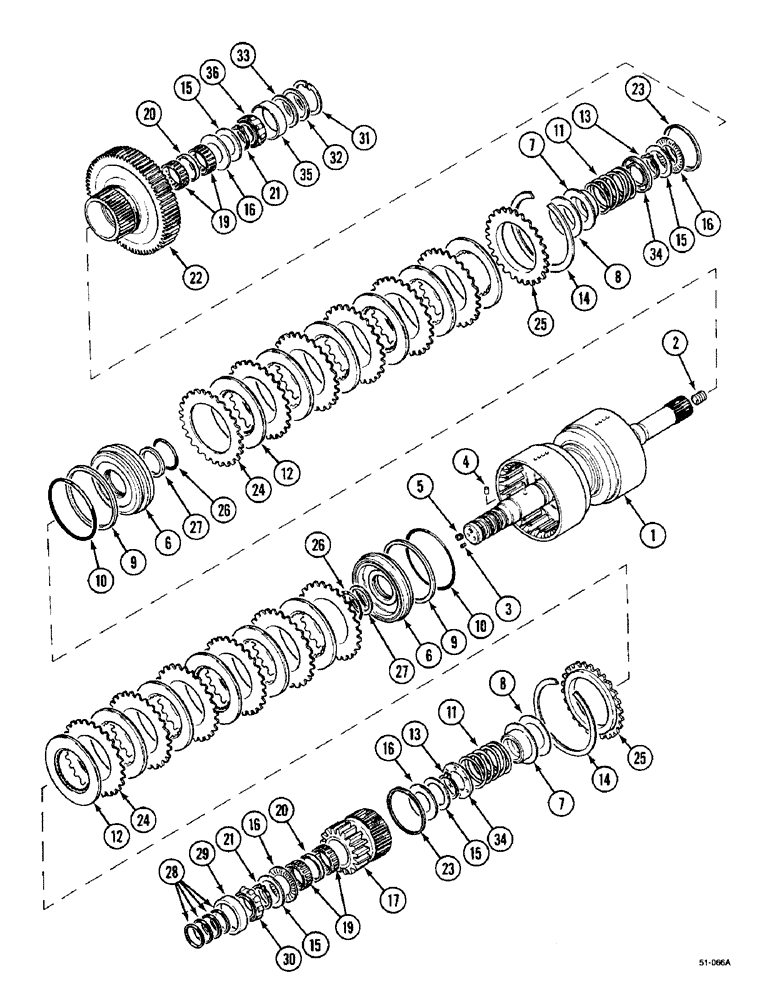

Запчасти Case IH 5150 (6-044) - TRANSMISSION - FORWARD AND REVERSE (06) - POWER TRAIN

1

1341161C2

SHAFT ASSY.

62157 Includes: 2-5

1шт.

2

A183506

SET SCREW

1шт.

3

141990A1

PLUG

7 mm

2шт.

4

138-294

LOCK PIN,1/8" x 1/4", Slotted

2шт.

5

1342851C1

PLUG

expansion 10 mm

1шт.

6

A159292

PISTON

2шт.

7

1997131C1

SLEEVE

2шт.

8

A188134

SHIM,48.27mm ID x 66mm OD x 0.68mm Thk

SPACER, 0.75 mm

1шт.

8

A188135

SHIM,48.27mm ID x 66mm OD x 0.93mm Thk

SPACER, 1.00 mm

1шт.

8

A188136

SHIM,48.27mm ID x 66mm OD x 1.18mm Thk

SPACER, 1.25 mm

1шт.

8

A188137

SHIM,48.27mm ID x 66mm OD x 2.17mm Thk

SPACER, 2.25 mm

1шт.

9

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

oil

2шт.

10

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

11

A188080

SPRING

2шт.

12

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

friction, 62157 Trans No.: - JKA73450

12шт.

12

1997129C1

NOTCHED DISK

friction, 62157 Trans No.: JKA73451 -

12шт.

13

100-16156

SNAP RING,#156, Ext

2шт.

14

A158227

CIRCLIP

snap

2шт.

15

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

thrust

4шт.

16

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

thrust

4шт.

17

A188123

GEAR

17T, 62157 Reverse

1шт.

19

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

needle

4шт.

20

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

2шт.

21

100-16150

SNAP RING,#150, Ext

2шт.

22

1341101C1

SPROCKET ASSY.

GEAR, 68T, 62157, 5120, 5130, 5140, Trans No.: - JKA60729 Forward

1шт.

22

1341099C1

SPROCKET ASSY.

GEAR, 69T, 62157, 5120, 5130, 5140, Trans No.: - JKA60729 Forward Speed Restricted

1шт.

22

1995260C1

GEAR

GEAR, 70T, 62157 Forward Trans No. : JKA60730 -

1шт.

23

1995174C1

SEALING RING

SEALRING

2шт.

24

A175806

PLATE

separator

12шт.

25

1997122C1

PLATE

2шт.

26

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

27

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING oil

2шт.

28

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING SEAL

4шт.

29

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP, 2-31/64

1шт.

30

A188709

BEARING CONE,38mm ID x 17mm W

CONE ASSY.

1шт.

31

100-21250

SNAP RING,2.50", Int, #250

1шт.

32

A175447

SPACER

1шт.

33

A159443

SHIM,52mm ID x 62.58mm OD x 0.08mm Thk

Adjusting

1шт.

33

A159442

SHIM,0.127mm Thk

Adjusting

1шт.

33

A159441

SHIM,0.177mm Thk

Adjusting

1шт.

33

A188792

SHIM,52mm ID x 62.58mm OD x 0.5mm Thk

Adjusting

1шт.

34

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

2шт.

35

1345709C1

BEARING, CUP,63mm OD x 13.5mm W

CUP

1шт.

36

1345710C1

ROLLER BEARING,37.99mm ID x 17.08mm W

ASSY.

1шт.
