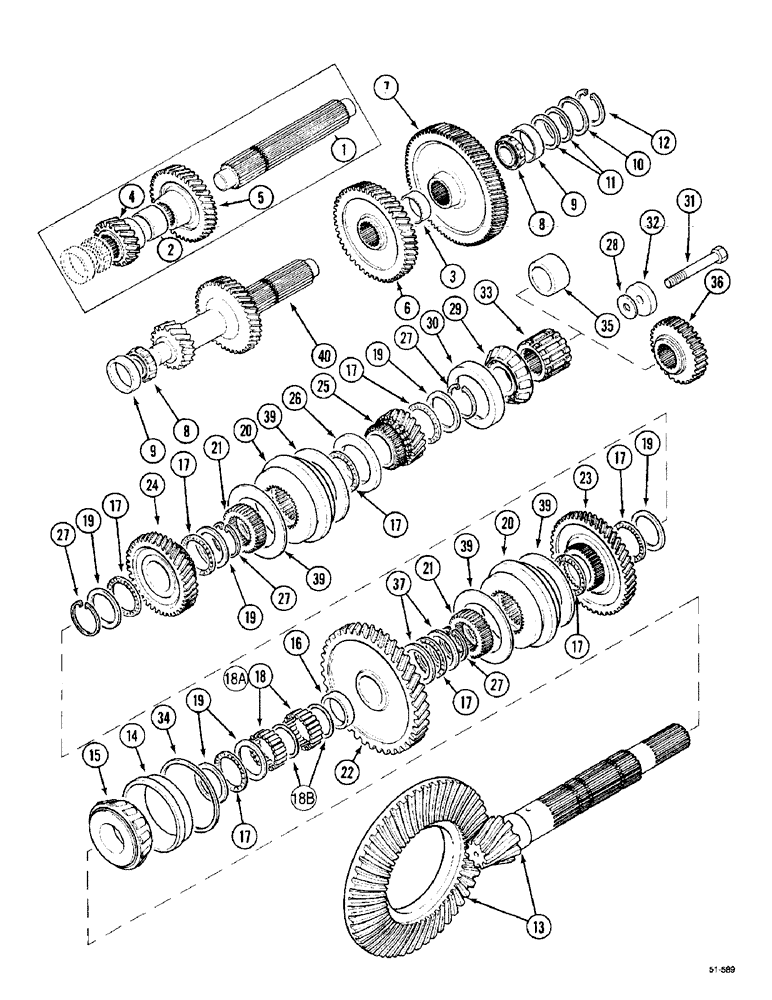

Запчасти Case IH 5150 (6-036) - TRANSMISSION RANGE, SHAFT AND GEARS (06) - POWER TRAIN

1

A183911

SHAFT

62523, 5120, 5130, 5140, Intermediate Trans No.: - JKA60729

1шт.

2a

A186385

SPACER

62523, 5120, 5130, 5140

1шт.

Trans. No. : -JKA57185

1шт.

3a

A186384

SPACER

62523, 5120, 5130, 5140

1шт.

Trans. No. : -JKA57185

1шт.

3b

A190327

SPACER

62523, 5120, 5130, 5140

1шт.

Trans. No. : JKA57186-

1шт.

4a

A183912

PINION

GEAR, 17T, 62523, 5120, 5130, 5140, 1st Gear

1шт.

Trans. No. : -JKA57185

1шт.

5a

A183684

PINION

GEAR, 38T, 62523, 5120, 5130, 5140, 2nd Gear

1шт.

Trans. No. : -JKA57185

1шт.

6a

A183686

PINION

GEAR, 49T, 62523, 5120, 5130, 5140, 3rd Gear

1шт.

Trans. No. : JKA57186-

1шт.

6

1995152C1

PINION

GEAR, 49T, 62523, 5120, 5130, 5140, 3rd Gear Trans No. : JKA57186 - 62758

1шт.

6

114274A1

PINION

GEAR, 49T, 62523, 5120, 5130, 5140, 3rd Gear Trans No. : JKA62759 -

1шт.

6

114274A1

PINION

GEAR, 49T, 62523, 5150, 3rd Gear

1шт.

7a

1341094C1

PINION

GEAR, 83T, 62523, 5120, 5130, 5140, 4th Gear

1шт.

Trans. No. : -JKA57185

1шт.

7

1995151C1

PINION

GEAR, 83T, 62523, 5120, 5130, 5140, 4th Gear Trans No. : JKA57186 - 60729

1шт.

7

1341097C1

PINION

GEAR, 82T, 62523, 5120, 5130, 5140, 4th Gear Speed Restricted Trans No. : JKA57186 - 60729

1шт.

7

1995262C1

PINION

GEAR, 83T, 62523 4th Gear Trans No. : JKA60730 -

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

2шт.

9

G57451

BEARING, CUP

CUP

2шт.

10

A175419

BUSHING,54mm ID x 64.67mm OD x 3.52mm L

1шт.

11

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

Adjusting

1шт.

11

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

Adjusting

1шт.

11

A175453

SHIM,0.178mm Thk

Adjusting

1шт.

11

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

Adjusting

1шт.

12

A175444

SNAP RING,2.562", Int, #256

62523 2.562", Int, #256

1шт.

13

1341189C3

GEAR, BEVEL

BEVEL GEAR SET, 9/55T; Includes ref 14 and 15

1шт.

14

A188019

ROLLER BEARING,138.25 mm OD x 23.571 mm

CUP

1шт.

15

A188018

ROLLER BEARING,63.513 mm ID x 33.312 mm

ASSY.

1шт.

16

A188358

SPACER

11.81 mm, 62523 Plastic Trans No.: - JKA60401

1шт.

16

1345645C1

SPACER

10,24 mm, 62523 Plastic Trans No.: JKA60402 -

1шт.

17

K620185

THRUST BEARING

needle

8шт.

18

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

62523 Trans No.: - JKA60401

2шт.

2707624R91

NEEDLE BEARING

PACKAGE, 62523 With Sleeve Trans No.: JKA60402 - Includes : 18A, 18B

1шт.

18a

1341221C1

NEEDLE BEARING,Needle, 5.14mm OD x 24.64mm L

BEARING roller

76шт.

Trans. No. : -JKA57185

1шт.

18b

SPACER

2шт.

Trans. No. : JKA57186-

1шт.

19

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

6шт.

20

1345825C2

SYNCHRONIZER

2шт.

21

1341047C1

SYNCHRO BODY

HUB

2шт.

22

A188357

GEAR

52T / 66.4 mm ID, 62523 1st Gear Trans No. : - JKA50786

1шт.

22

1345928C1

PINION

GEAR, 52T / 66.4 mm ID, 62523 1st Gear Trans No.: JKA50787 - 60401

1шт.

22

1345850C1

PINION

GEAR, 52T / 67,3 mm ID, 62523 1st Gear Trans No.: JKA60402 -

1шт.

23

1345693C1

PINION

GEAR, 51T, 62523, 5120, 5130, 5140, 2nd Gear Trans No.: - JKA50786

1шт.

23

1345851C1

PINION

GEAR, 51T, 62523 2nd Gear Trans No.: JKA50787 -

1шт.

24

1345694C1

PINION

GEAR, 40T, 62523, 5120, 5130, 5140, 3rd Gear Trans No.: - JKA50786

1шт.

24

1345852C1

PINION

GEAR, 40T, 62523, 5120, 5130, 5140, 3rd Gear Trans No. : JKA50787 - 62758

1шт.

24

114275A1

PINION

GEAR, 40T, 62523, 5120, 5130, 5140, 3rd Gear Trans No.: JKA62759 -

1шт.

24

114275A1

PINION

GEAR, 40T, 62523, 5150, 3rd Gear

1шт.

25

1341093C2

PINION

GEAR, 31T, 62523, 5120, 5130, 5140, 4th Gear Trans No.: - JKA50786

1шт.

25

1341096C2

PINION

GEAR, 33T, 62523, 5120, 5130, 5140, 4th Gear Trans No.: - JKA50786 Speed Restricted

1шт.

25

1345853C1

PINION

GEAR, 31T, 62523, 5120, 5130, 5140, 4th Gear Trans No.: JKA50787 - 60729

1шт.

25

1995263C1

PINION

GEAR, 34T, 62523, 4th Gear Trans No. : JKA60730 -

1шт.

26

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

1шт.

27

101-11225

SNAP RING,#225, Ext

4шт.

28

A186916

SHIM,17.11mm ID x 41mm OD x 0.08mm Thk

Adjusting

1шт.

28

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

Adjusting

1шт.

28

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

Adjusting

1шт.

29

615427C91

ROLLER BEARING,47.63mm ID x 30.25mm W

CONE ASSY.

1шт.

30

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

31

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

32

A188584

WASHER, THRUST

1шт.

33

A186391

HUB

62523 Parking Brake

1шт.

34

A188020

SHIM,130.75mm ID x 139mm OD x 0.09mm Thk

Adjusting

1шт.

34

A188021

SHIM,130.75mm ID x 139mm OD x 0.2mm Thk

Adjusting

1шт.

34

A188022

SHIM,130.75mm ID x 139mm OD x 0.28mm Thk

Adjusting

1шт.

34

A188023

SHIM,130.75mm ID x 139mm OD x 0.55mm Thk

Adjusting

1шт.

35

1345869C1

SPACER

62523, 5120, 5130, 5140, 2WD

1шт.

36

REF

INSTRUCTION

GEAR. 62523 4WD See Figure: 6-138

1шт.

37

921272C1

THRUST WASHER

thrust

2шт.

39

1345738C2

SPACER

0.5 mm, 62523, 5120, 5130, 5140, Trans No.: - JKA50786

1шт.

39

1345833C1

SPACER

0.75 mm, 62523, 5120, 5130, 5140, Trans No.: - JKA50786

1шт.

40b

1995149C1

COUNTERSHAFT

62523 Intermediate With 1st and 2nd Gear

1шт.
