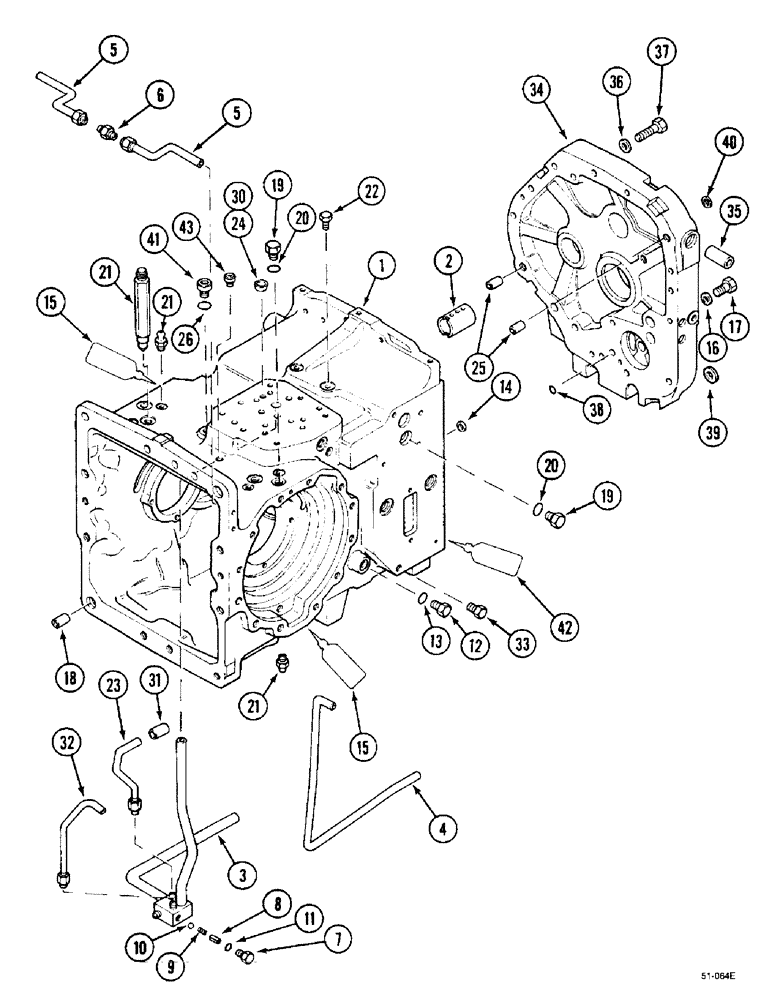

Запчасти Case IH 5150 (6-032) - TRANSAXLE HOUSING (06) - POWER TRAIN

1

1995495C2

HOUSING ASSY.

62525 Includes : 2 - 12, Start Serial: JJF1030000

1шт.

1

1341279C3

HOUSING ASSY.

62525 Includes : 2 - 12, Serial Range: -JJF1029999

1шт.

2

A183013

BUSHING

SLEEVE

1шт.

3

1341200C1

TUBE

1шт.

4

A183894

TUBE

1шт.

5

A188564

TUBE

2шт.

6

218-433

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male JIC

1шт.

7

1345502C1

PLUG

62315 Includes: 8

1шт.

8

30711R1

ROLL PIN,8mm OD x 20mm L, Slotted

1шт.

9

1345504C1

SPRING

1шт.

10

31203R1

BALL,12mm Dia

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

62525 Incl Ref 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

239-5117

O-RING,Quad, 0.094" Thk x 0.813" ID, Cl 5, 75 Duro

1шт.

15

B500621

LOCTITE

324

1шт.

15

B500622

LOCTITE

707

1шт.

16

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

17

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

62525 MFD

2шт.

17

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

M16 x 90; 10.9, 62525 2WD

2шт.

18

A175769

DOWEL

SLEEVE

2шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

62525 Incl Ref 20

4шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

A188637

BLEEDER

FITTING, 62525 Trans No : - JKA69312

2шт.

21

A188637

BLEEDER

FITTING, 62525 Trans No. : JKA69313 -

1шт.

21

129596A1

BLEEDER

FITTING, 62525 Trans No. : JKA69313 -

1шт.

22

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

23

A188723

TUBE

ASSY.

1шт.

24

1345745C1

PLUG

62525 Trans No.: - JKA67969

1шт.

25

A175944

DOWEL,22.1mm OD x 13.5mm L

SLEEVE

2шт.

26

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

30

1997135C1

PLUG

62525 Trans No.: JKA67970

1шт.

31

A188725

BUSHING

1шт.

32

1345659C2

TUBE,8 mm OD, 173, 65 mm Length

ASSY.

1шт.

33

1960881C1

PLUG

1шт.

34

115707A1

HOUSING

CARRIER, 62525 Includes: 35

1шт.

35

A188099

BUSHING

SLEEVE

1шт.

36

A64303

WASHER

1шт.

37

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

38

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

39

239-5129

O-RING,Square, 0.094" Thk x 1.563" ID, -129, Cl 5, 75 Duro

SEALRING

2шт.

40

239-5117

O-RING,Quad, 0.094" Thk x 0.813" ID, Cl 5, 75 Duro

1шт.

41

934164R1

PLUG,Hex Soc, M18 x 1.5

18 mm

1шт.

42

B17501

LOCTITE

6 ml

1шт.

42

B17555

LOCTITE

50 ml

1шт.

42

B17556

LOCTITE

300 ml

1шт.

42

345-150

LOCTITE

1шт.

43

221-841

PLUG

1/4 PT

1шт.
