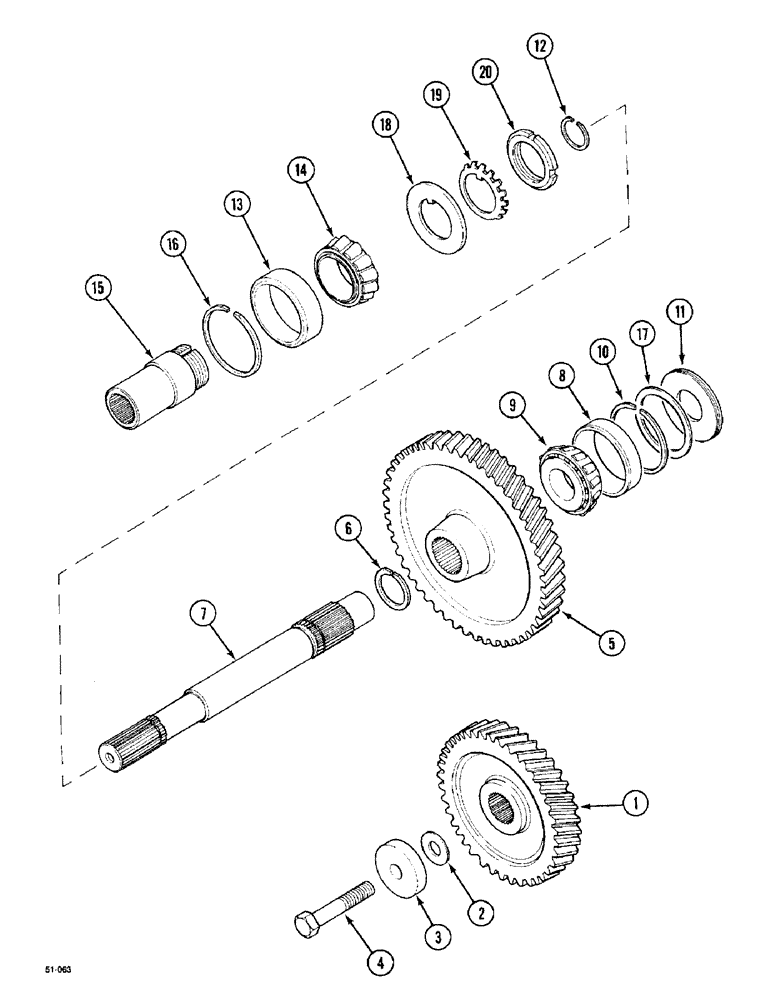

Запчасти Case IH 5150 (6-030) - TRANSMISSION - MAIN SHAFT, 40 KM/H, WITHOUT CREEP SPEED (06) - POWER TRAIN

1

A186748

PINION

GEAR, 45T, 62521, 5120, Trans No.: - JKA70032

1шт.

1

A183848

GEAR WHEEL

44T, 62521, 5130, 5140, Trans No.: - JKA60729

1шт.

1

A186748

PINION

GEAR, 45T, 62521, 5130, 5140, Trans No.: JKA60730 - 70032

1шт.

1

116781A1

PINION

GEAR, 45T, 62521 Trans No. : JKA70033 -

1шт.

2

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

Adjusting

1шт.

2

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

Adjusting

1шт.

2

A158881

SHIM,1.016mm Thk

Adjusting

1шт.

3

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

1шт.

4

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

5

A186749

GEAR

46T, 62521, 5120, Trans No.: - JKA70032

1шт.

5

A183849

GEAR WHEEL

47T, 62521, 5130, 5140, Trans No.: - JKA60729

1шт.

5

A186749

GEAR

46T, 62521, 5130, 5140, Trans No.: JKA60730 - 70032

1шт.

5

116782A1

PINION

GEAR, 46T, 62521 Trans No.: JKA70033 -

1шт.

6

39339

SNAP RING,#162, Ext

#162, Ext

1шт.

7

A188775

SHAFT

1шт.

8

ST978

TAPERED BEARING,1.5005" ID x 3.001" OD x 0.9515"

CUP

1шт.

9

206214R91

CONE,36.49mm ID x 25.65mm W

ASSY.

1шт.

10

103-21300

SNAP RING,3.00", Int, #300

1шт.

11

1341140C1

DEFLECTOR

SLINGER

1шт.

12

933113R1

SNAP RING,M35, Ext, Hvy

retaining 31.7 mm

1шт.

13

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP

1шт.

14

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

1шт.

15

1345906C1

SPLINED COUPLING,21T

COLLAR, dia 50,79 mm

1шт.

16

100-16150

SNAP RING,#150, Ext

1шт.

17

A188877

SHIM,63mm ID x 75mm OD x 0.1mm Thk

Adjusting

1шт.

17

A188878

SHIM,63mm ID x 75mm OD x 0.36mm Thk

Adjusting

1шт.

17

A188879

SHIM,0.500mm Thk

Adjusting

1шт.

18

A186366

WASHER, THRUST

1шт.

19

192-361

LOCK WASHER,Type TW-110

6шт.

20

54-2010

BEARING LOCK NUT,Bearing, 1.9685" Bore

1шт.
