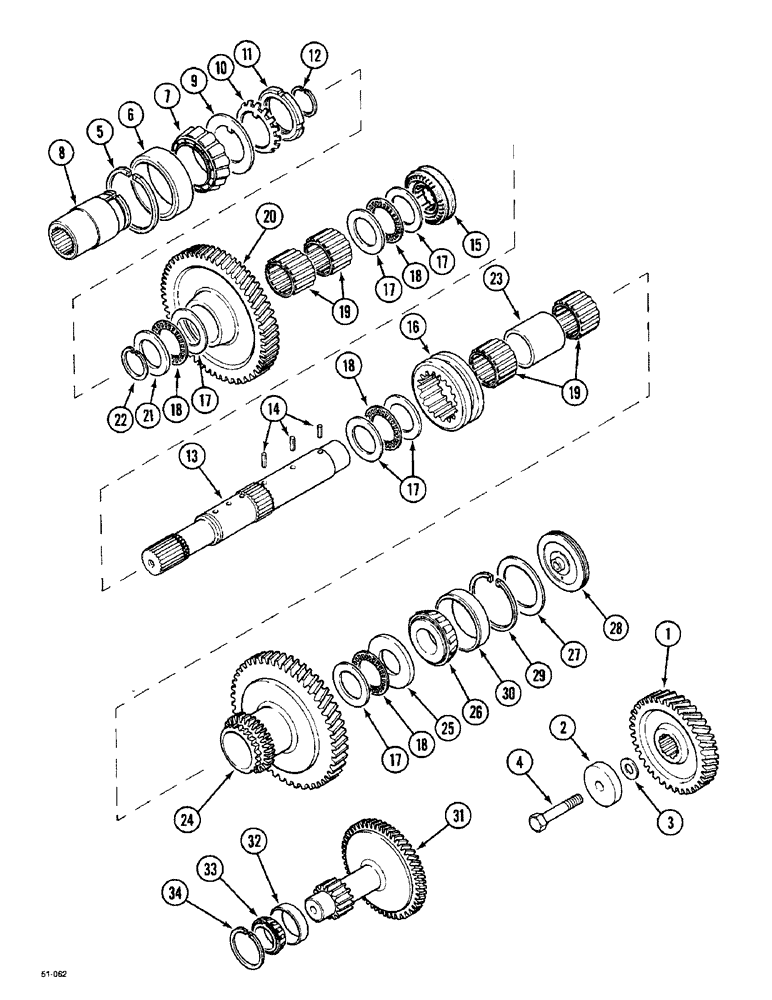

Запчасти Case IH 5150 (6-024) - TRANSMISSION - MAIN SHAFT, SHYCHROMESH, CREEP SPEED (06) - POWER TRAIN

1a

A186746

PINION

GEAR, 39T, 62521, 5120, 5150

1шт.

30 KM/H

1шт.

1a

A186746

PINION

GEAR, 39T, 62521, 5130, 5140, Serial Range: JJF1022305-JJF1029999

1шт.

30 KM/H

1шт.

1a

A183850

GEAR WHEEL

38T, 62521, 5130, 5140, Serial Range: -JJF1022304

1шт.

30 KM/H

1шт.

1b

116781A1

PINION

GEAR, 45T, 62521, 5150

1шт.

40 KM/H

1шт.

1b

A186748

PINION

GEAR, 45T, 62521, 5120

1шт.

40 KM/H

1шт.

1b

A186748

PINION

GEAR, 45T, 62521, 5130, 5140, Serial Range: JJF1022305-JJF1029999

1шт.

40 KM/H

1шт.

1b

A183848

GEAR WHEEL

44T, 62521, 5130, 5140, Serial Range: -JJF1022304

1шт.

40 KM/H

1шт.

2

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

1шт.

3

A158881

SHIM,1.016mm Thk

Adjusting

1шт.

3

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

Adjusting

1шт.

3

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

Adjusting

1шт.

4

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

5

100-21325

SNAP RING,3.25", Int, #325

1шт.

6

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP

1шт.

7

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

1шт.

8

1345906C1

SPLINED COUPLING,21T

COLLAR, dia 50.79 mm

1шт.

9

A186366

WASHER, THRUST

1шт.

10

192-361

LOCK WASHER,Type TW-110

1шт.

11

54-2010

BEARING LOCK NUT,Bearing, 1.9685" Bore

1шт.

12

933113R1

SNAP RING,M35, Ext, Hvy

retaining 31.7 mm

1шт.

13

A188782

SHAFT

ASSY., 62521 Includes: 14

1шт.

14

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

15

A188700

HUB

1шт.

16

A190195

COLLAR CLAMP

1шт.

17

A65414

WASHER,38.28mm ID x 55.04mm OD x 1.56mm Thk

thrust

6шт.

18

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

thrust

4шт.

19

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

needle

4шт.

20

A190196

PINION

GEAR, 64T

1шт.

21

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

1шт.

22

100-16150

SNAP RING,#150, Ext

1шт.

23

A186944

SPACER

1шт.

24a

A190198

PINION

41/52T, 62521, 5120, Serial Range: -JJF1022304

1шт.

30 KM/H

1шт.

24a

A190201

PINION

41/53T, 62521, 5130, 5140, Serial Range: -JJF1022304

1шт.

30 KM/H

1шт.

24a

A190197

PINION

34/52T, 62521, Serial Range: -JJF1029999

1шт.

30 KM/H

1шт.

24b

A190199

PINION

46/39T, 62521, 5120(1), Serial Range: -JJF1022304

1шт.

40 KM/H

1шт.

24b

A190202

GEAR WHEEL

47/39T, 62521, 5130, 5140, Serial Range: -JJF1022304

1шт.

40 KM/H

1шт.

24b

1995446C1

PINION

46/34T, 62521, Serial Range: -JJF1029999

1шт.

40 KM/H

1шт.

25

A183928

WASHER, THRUST

1шт.

26

ST773A

ROLLER BEARING,1.313" ID x 3.0010" OD x 0.952"

CONE ASSY.

1шт.

27

A188877

SHIM,63mm ID x 75mm OD x 0.1mm Thk

Adjusting

1шт.

27

A188878

SHIM,63mm ID x 75mm OD x 0.36mm Thk

Adjusting

1шт.

27

A188879

SHIM,0.500mm Thk

Adjusting

1шт.

28

1341140C1

DEFLECTOR

SLINGER

1шт.

29

100-21300

SNAP RING,3.00", Int, #300

1шт.

30

ST978

TAPERED BEARING,1.5005" ID x 3.001" OD x 0.9515"

CUP

1шт.

31a

A188385

SHAFT

51/16T, 62521, 5120, 5130, 5140, Serial Range: -JJF1022304

1шт.

30 KM/H

1шт.

31b

A186563

PINION

SHAFT, 53/16T, 62521, 5120, 5130, 5140, Serial Range: -JJF1022304

1шт.

40 KM/H

1шт.

31

A183433

PINION

SHAFT, 58/16T, 62521, Serial Range: JJF1022305-1029999

1шт.

32

651817R1

BEARING CUP

CUP

2шт.

33

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

34

A175867

CIRCLIP

2.0 mm

1шт.

34

A178626

RING, SNAP

RING SNAP 1.7 mm

1шт.

34

A178627

RING, SNAP

RING SNAP 1.5 mm

1шт.

34

A178628

SNAP RING

snap 1.8 mm

1шт.

34

A178629

SNAP RING

snap 1.6 mm

1шт.
