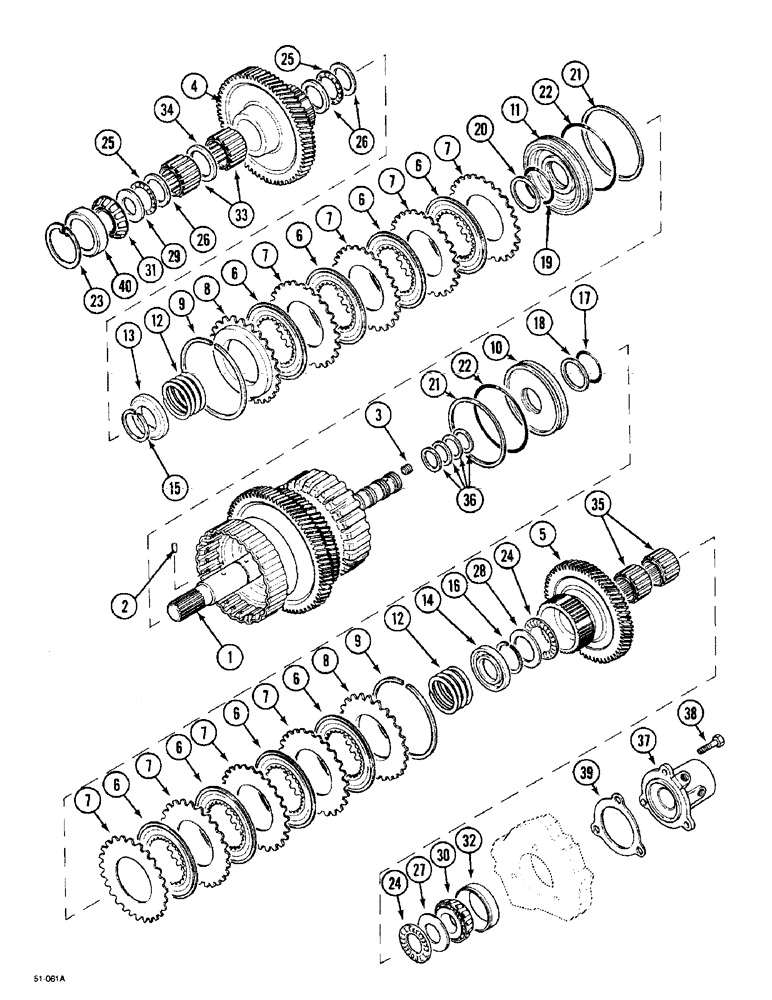

Запчасти Case IH 5150 (6-018) - SPEED TRANSMISSION - DROP SHAFT, POWERSHIFT (06) - POWER TRAIN

1

1995393C2

SHAFT ASSY.

62321 Trans No. :after s/n JKA70033 - Includes: 2, 3

1шт.

1

1995104C1

SHAFT ASSY.

62321 Trans No. : before JKA70032 Includes: 2, 3

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

1шт.

3

1342851C1

PLUG

expansion 10 mm

3шт.

4

1995208C1

SPROCKET ASSY.

GEAR, 68T, 62321 Drive 2nd Speed

1шт.

5

113557A1

SPROCKET ASSY.

GEAR, 56T, 62321 Drive 4th Speed

1шт.

6

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

friction, 62321 Trans No.: - JKA73450

9шт.

6

1997129C1

NOTCHED DISK

friction, 62321 Trans No.: JKA73451 -

9шт.

7

A175806

PLATE

separator, 62321 Trans No. : - JKA70032

8шт.

7

A175806

PLATE

separator, 62321 Trans No.: JKA70033 -

9шт.

8

1997122C1

PLATE

2шт.

9

A158227

CIRCLIP

snap

2шт.

10

A159239

PISTON

1шт.

11

A159292

PISTON

1шт.

12

A188080

SPRING

2шт.

13

A188044

RETAINER

1шт.

14

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

1шт.

15

100-16175

SNAP RING,#175, Ext

1шт.

16

100-16156

SNAP RING,#156, Ext

1шт.

17

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32, 62321 Inner

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

62321 Inner

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

20

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING oil, 62321 Inner

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

oil, 62321 Outer

2шт.

22

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

23

103-21300

SNAP RING,3.00", Int, #300

1шт.

24

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

thrust

2шт.

25

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

thrust

2шт.

26

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

3шт.

27

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

1шт.

28

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

thrust

1шт.

29

A188478

WASHER, THRUST,38.33mm ID x 65mm OD x 4.5mm Thk

1шт.

30

206214R91

CONE,36.49mm ID x 25.65mm W

ASST.

1шт.

31

1345711C1

ROLLER BEARING,38.11mm ID x 25.57mm W

ASSY.

1шт.

32

ST978

TAPERED BEARING,1.5005" ID x 3.001" OD x 0.9515"

CUP

1шт.

33

A188474

NEEDLE BEARING,44.39mm ID x 57.14mm OD x 26.57mm W

needle

2шт.

34

A188479

SPACER,47.5mm ID x 57mm OD x 7.8mm L

1шт.

35

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

needle

2шт.

36

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING SEAL

4шт.

37

A186393

HUB

1шт.

38

826-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 35; 10.9

3шт.

39

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

Adjusting

1шт.

39

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

Adjusting

1шт.

39

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

Adjusting

1шт.

39

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

Adjusting

1шт.

40

1345712C1

BEARING, CUP,76.21mm OD x 18.95mm W

CUP

1шт.
