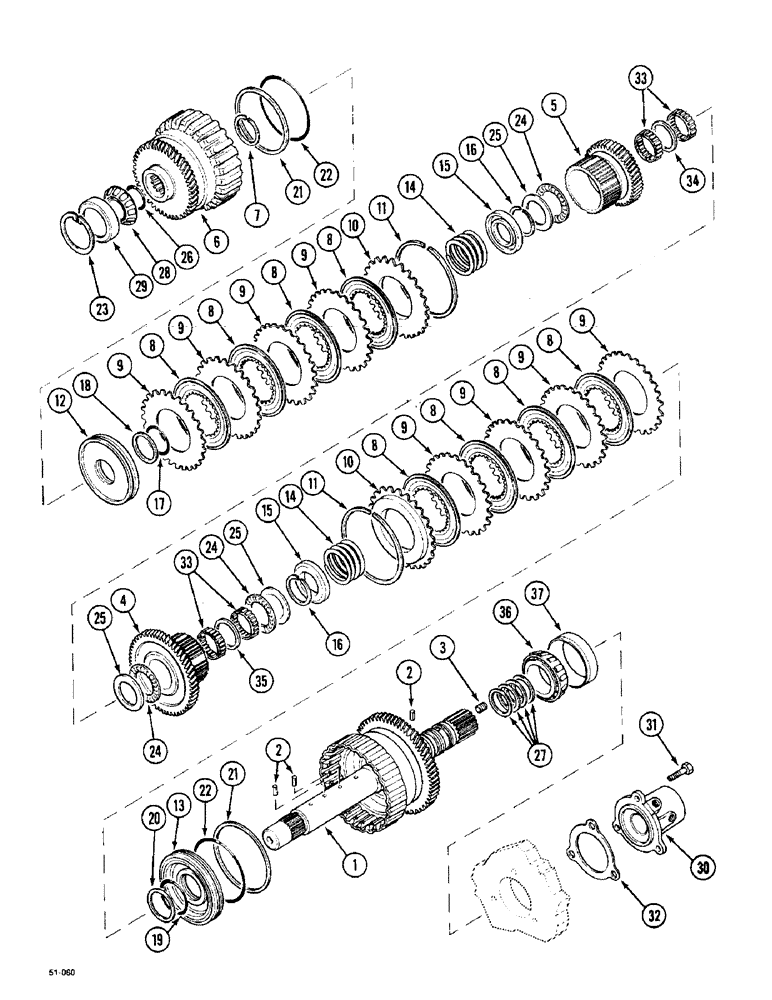

Запчасти Case IH 5150 (6-012) - SPEED TRANSMISSION - INPUT SHAFT, POWERSHIFT (06) - POWER TRAIN

1

113555A1

SHAFT ASSY.

447.2mm, 62321 Trans No. : JKA60402 - Includes : 2, 3

1шт.

1

1995426C1

SHAFT ASSY.

62321, 5120, 5130, 5140, Trans No. : - JKA60401 Includes : 2, 3

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

3

1342851C1

PLUG

expansion, 10 mm, 62321 Trans No. : JKA60402 -

3шт.

3

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

7/16 x 3/8 in, 62321, 5120, 5130, 5140, Trans No : - JKA60401

3шт.

4

1995197C1

PINION

GEAR, 61T, 62321, 5120, 5130, 5140, Drive 3rd Speed Trans No.: - JKA70032

1шт.

4

1995342C2

SPROCKET ASSY.

GEAR, 51T, 62321, 5120, 5130, 5140, Drive 3rd Speed Trans No.: JKA70033 -

1шт.

4

1995342C2

SPROCKET ASSY.

GEAR, 51T, 62321, 5150, Drive 3rd Speed

1шт.

5

1995190C1

SPROCKET ASSY.

GEAR, 48T, 62321, 5120, 5130, 5140, Drive 1st Speed Trans No.: - JKA70032

1шт.

5

1995348C1

SPROCKET ASSY.

GEAR, 41T, 62321, 5120, 5130, 5140, Drive 1st Speed Trans No.: JKA70033 -

1шт.

5

1995348C1

SPROCKET ASSY.

GEAR, 41T, 62321, 5150, Drive 1st Speed

1шт.

6

1995346C1

SPROCKET ASSY.

GEAR, 46T, 62321 Drive 2nd Speed

1шт.

7

100-11175

SNAP RING,#175, Ext

1шт.

8

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

friction, 62321, 5120, 5130, 5140, Trans No.: - JKA73450

8шт.

8

1997129C1

NOTCHED DISK

friction, 62321 Trans No.: JKA73451 -

8шт.

9

A175806

PLATE

separator

8шт.

10

1997122C1

PLATE

2шт.

11

A158227

CIRCLIP

snap

2шт.

12

A159239

PISTON

1шт.

13

A159292

PISTON

1шт.

14

A188080

SPRING

2шт.

15

A188044

RETAINER

2шт.

16

100-16175

SNAP RING,#175, Ext

2шт.

17

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

20

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING oil, 62321 Inner

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

oil, 62321 Outer

2шт.

22

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

23

103-21300

SNAP RING,3.00", Int, #300

1шт.

24

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust

3шт.

25

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

26

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

62321 2nd Gear

1шт.

27

1995100C1

SEAL,41.66mm ID x 44.98mm OD x 2.38mm Thk

RING, 62321 Trans No.: JKA60402 -

4шт.

27

A188653

SEALING RING

SEALRING SEAL, 62321 Trans No.: - JKA60401

4шт.

28

206214R91

CONE,36.49mm ID x 25.65mm W

ASSY.

1шт.

29

ST978

TAPERED BEARING,1.5005" ID x 3.001" OD x 0.9515"

CUP

1шт.

30

1995099C1

HUB

62321 Trans No.: JKA60402 -

1шт.

30

A188647

HUB

62321 Trans No.: - JKA60401

1шт.

31

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M10 x 35; 12.9

3шт.

32

A188648

SHIM,83.7mm ID x 119.5mm OD x 0.09mm Thk

Adjusting

1шт.

32

A188649

SHIM,83.7mm ID x 119.5mm OD x 0.14mm Thk

Adjusting

1шт.

32

A188650

SHIM,83.7mm ID x 119.5mm OD x 0.28mm Thk

Adjusting

1шт.

32

A188651

SHIM,83.7mm ID x 119.5mm OD x 0.69mm Thk

Adjusting

1шт.

33

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

4шт.

34

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

1шт.

35

A178469

RING,46.25mm ID x 49.8mm OD x 2.29mm Thk

1шт.

36

1995417C1

BEARING ASSY,46.04mm ID x 25.48mm W

ASSY., 62321 Trans No.: JKA60402 -

1шт.

36

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

62321 Trans No.: - JKA60401

1шт.

37

ST987

BEARING CUP

BEARING cup

1шт.
