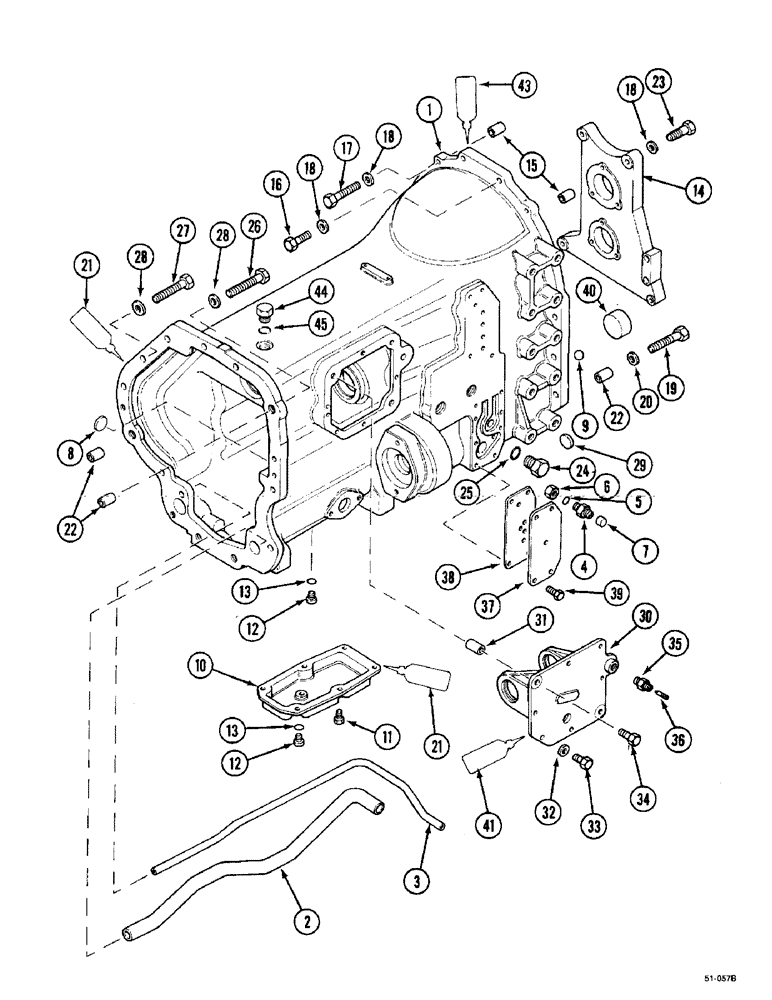

Запчасти Case IH 5150 (6-002) - TRANSMISSION - HOUSING AND BEARING CARRIER (06) - POWER TRAIN

1

1341268C6

HOUSING ASSY.

60003 Includes: 2-9

1шт.

2

A188229

TUBE

60003 Filter To Pump

1шт.

3

A188230

TUBE

60003 Lubrication

1шт.

4

A188713

UNION

60003 Trans No. : - JKA67969

1шт.

4

1995465C1

UNION

1/2 x 3/4 in, 60003 Trans No. : JKA67970 -

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

7

353-364

CAP,13/16"-16

CAP

1шт.

8

41-1036

PLUG,Cup, 2 1/4"

1шт.

9

1345888C1

PLUG

2шт.

10

A188493

COVER

1шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

60003 Incl Ref 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

1995143C1

BEARING CARRIER,76.225 mm ID x 338 mm OD x 28.12 mm

60003 Synchromesh 5120, 5130, 5140

1шт.

14

A188642

CARRIER

60003 Powershift

1шт.

15

A188330

SLEEVE

3шт.

16

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

17

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

1шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

19

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

5шт.

19

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

20

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

21

B17501

LOCTITE

6 ml

1шт.

21

B17555

LOCTITE

50 ml

1шт.

21

B17556

LOCTITE

300 ml

1шт.

21

345-150

LOCTITE

1шт.

22

A175944

DOWEL,22.1mm OD x 13.5mm L

SLEEVE

3шт.

23

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

24

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

60003 Powershift, Includes 25

2шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

2шт.

27

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

9шт.

28

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

11шт.

29

A175414

PLUG

1шт.

30

A190245

COVER

60003 Creep Speed

1шт.

30

A190246

COVER

PLATE, 60003 Without Creep Speed

1шт.

31

A188330

SLEEVE

60003 Creep Speed

2шт.

32

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2.5 mm

8шт.

33

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

60003 Creep Speed

6шт.

33

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

60003 Without Creep Speed

8шт.

34

826-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

60003 Creep Speed

2шт.

35

A178306

CONNECTION

60003 Includes : 36

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW, 60003 Order : A178306

1шт.

37

1978186C1

COVER ASSY

60003 Synchromesh 5120, 5130, 5140

1шт.

38

139884A1

GASKET

60003 Synchromesh 5120, 5130, 5140

1шт.

39

827-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

M10 x 30; 10.9, 60003 Synchromesh 5120, 5130, 5140

5шт.

40

1341280C1

PLUG

60003 2WD, 5120, 5130, 5140

1шт.

41

B17197

LOCTITE

50 ml

1шт.

43

B17501

LOCTITE

6 ml

1шт.

43

B17555

LOCTITE

50 ml

1шт.

43

B17556

LOCTITE

300 ml

1шт.

44

218-5159

PLUG,1-3/16" - 12 ORB

FITTING, 60003 Includes : 45

1шт.

45

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
