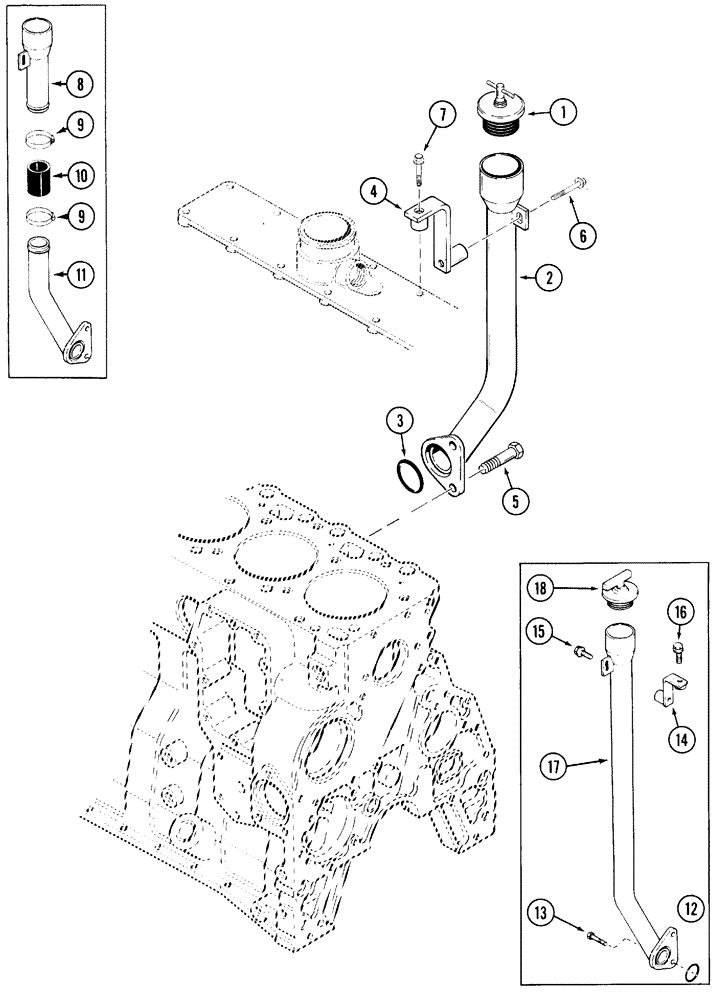

Запчасти Case IH 5140 (2-062) - ENGINE OIL FILLER, 6T-590 ENGINE, TURBOCHARGED, 5140/5240 AND 5250 TRACTOR (02) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J921535

TUBE,38.1 mm OD x 415, 117.6 mm L

ASSEMBLY - oil fill

1шт.

3

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

4

J915862

BRACKET

BRACE - oil fill tube

1шт.

5

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

6

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

8

J916727

TUBE,38.1 mm OD x 193 mm L

- oil fill extension

1шт.

9

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable, Open #28, 1.31/2.25 Type F Worm

2шт.

10

J912686

HOSE,38.1mm ID x 84mm L

1шт.

11

J915843

TUBE,38.1 mm OD x 236.5, 120 mm L

- oil filler

1шт.

12

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, Class 10.9

2шт.

14

J915862

BRACKET

BRACE - oil fill tube

1шт.

15

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

17

A190736

TUBE

- oil fill extension

1шт.

18

A77424

FILLER CAP

CAP - oil fill tube

1шт.
