Запчасти Case IH 5140 (9-124) - ROPS, 2 POST FOLDABLE (09) - CHASSIS/ATTACHMENTS

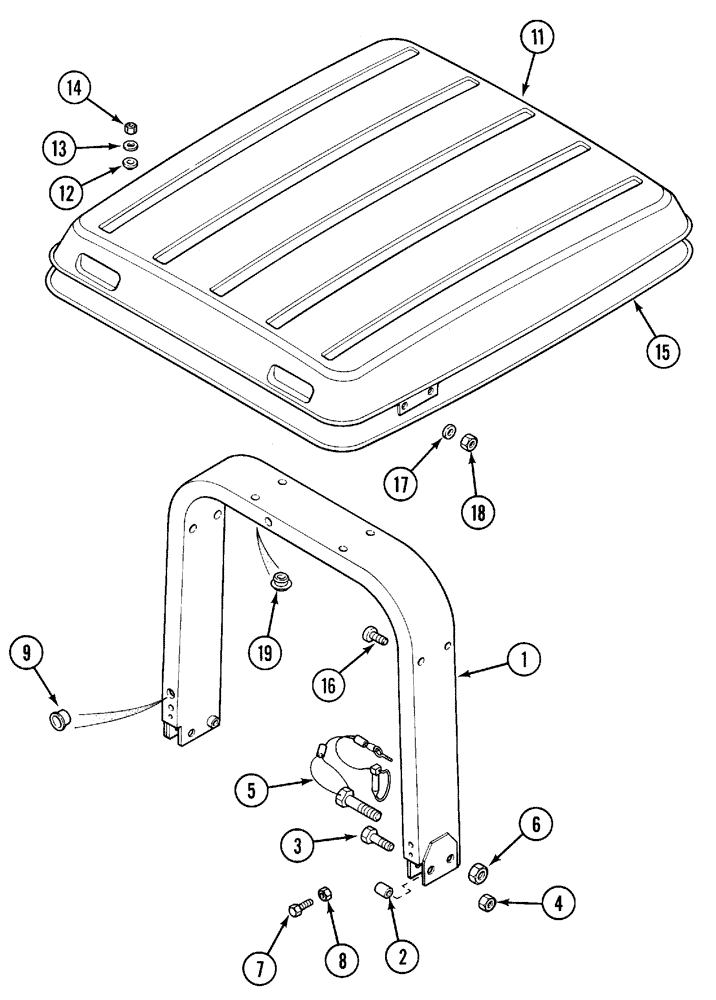

Схема запчастей Case IH 5140 - (9-124) - ROPS, 2 POST FOLDABLE (09) - CHASSIS/ATTACHMENTS
2
15
14
7
12
8
6
9
4
11
18
19
3
16
1
17
13
5

Артикул

Название

Примечание

Количество

1

1965613C1

SUPPORT

TUBE - foldable ROPS

1шт.

2

1965361C1

SPACER

- hinge

2шт.

3

1965362C1

BOLT,M20 x 80mm

- special, 20 mm x 80mm

2шт.

4

1965506C1

NUT

- hex, 20 mm, Class 10.9

2шт.

5

1965513C1

ROPE

- assembly

2шт.

6

1965507C1

NUT

- hex, 24 mm, Class 10.9

2шт.

7

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

8

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

9

3054575R1

PLUG

-

2шт.

1965603C1

PROTECTION

CANOPY - roof assembly (Order from whole goods), Includes Ref: 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

CANOPY - (Order 1965603C1)

1шт.

12

1965454C1

GROMMET

- roof attaching

9шт.

13

1965463C1

WASHER

- special, flat, 6 mm

9шт.

14

825-1406

NUT,M6, Cl 8

9шт.

15

1965457C1

STRIP

- trim, 5,637 mm (Cut from roll 1327666C1)

1шт.

16

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

BOLT - hex socket, 12 - 1.75 x 30 mm, Class 8.8

8шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

18

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

19

1974389C1

PLUG

- button

8шт.

1327666C1

SEAL

TRIM - edge, 600 inch (Sold by the foot)

1шт.

Выбрано товаров: 20
