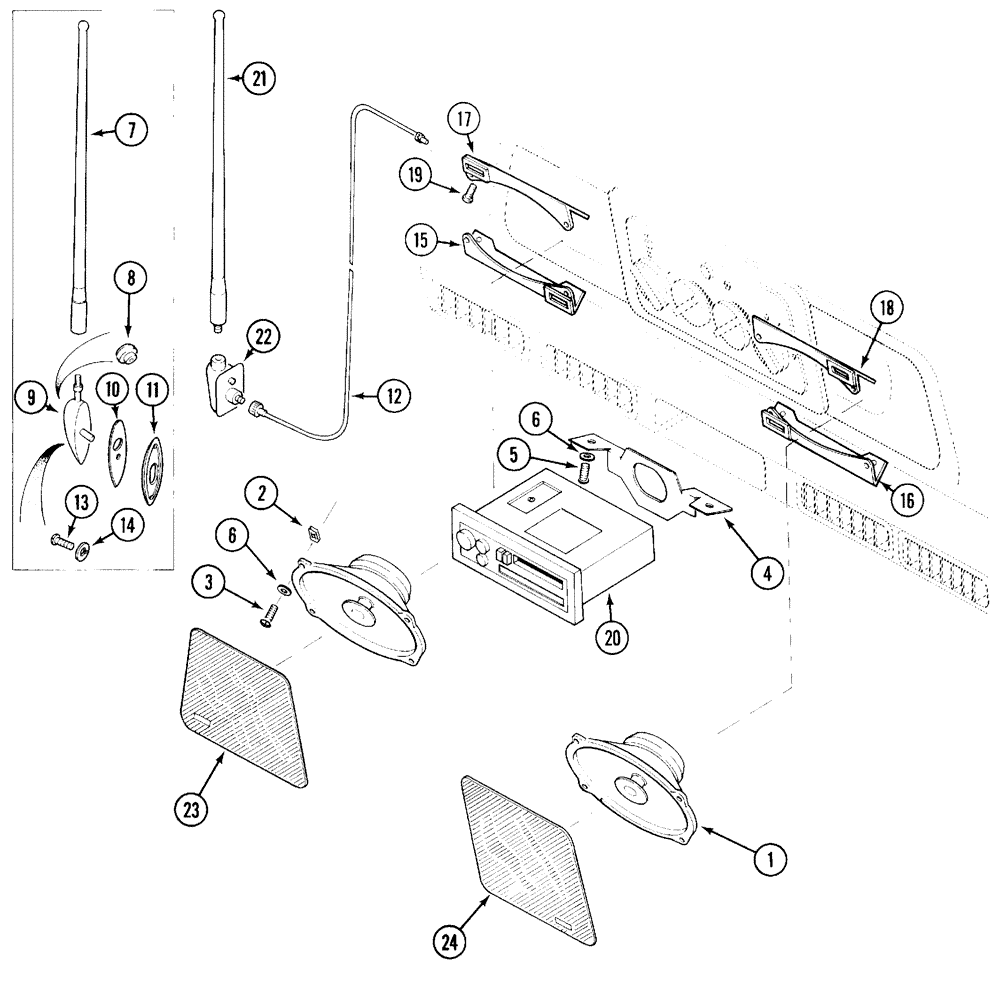

Запчасти Case IH 5140 (9-108) - CAB, RADIO SPEAKERS AND ANTENNA (09) - CHASSIS/ATTACHMENTS

1

126523A1

SPEAKER

LOUDSPEAKER - 4 x 6 inches

2шт.

2

177269A1

SPRING NUT,M4.2

SPRING, M4.2 JJF1030000 to

12шт.

2

1971334C1

NUT

- U-type, 4.2 mm ( - JJF1029999)

8шт.

3

1971333C1

BOLT,Tapping, M4.2 x 13mm

SCREW - pan head, cross recess, 4.2 mm x 13mm

8шт.

4

1975715C1

BRACKET

SUPPORT - radio ( - Cab JKJ50481)

1шт.

4

1344361C1

SUPPORT

- radio (Cab JKJ50482 - )

1шт.

5

758-2

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW, SELF TAPPING, Pan Hd, M4.2 x 16

2шт.

6

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

- flat, 3/16 x 3/8 x 3/64 inch

10шт.

1328311C91

ANTENNA

- assembly ( - Cab JKJ51529), Includes Ref; 7-11

1шт.

7

NSS

NOT SOLD SEPARAT

ANTENNA - rubber (Order 1328311C91)

1шт.

8

1328286C1

CAP

- (Order 1328311C91)

1шт.

9

1328283C1

SUPPORT

SOCKET - antenna

1шт.

10

1328287C1

SEAL

- antenna

1шт.

11

NSS

NOT SOLD SEPARAT

SUPPORT - (Order 1328311C91)

1шт.

12

1983247C1

CABLE

- antenna lead extension (Use with 1328311C91)

1шт.

12

198962A1

CABLE

750 mm; Antenna w/Ground Strap (Use with 197745A1)

1шт.

13

1535231C1

SCREW,Cross Pan Hd, M4.2 x 16mm

- 4.2 mm x 16mm polyseal

2шт.

14

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

15

1340400C1

SUPPORT

BRACKET - speaker, lower left ( - JJF1029999)

1шт.

16

1340401C1

SUPPORT

BRACKET - speaker, lower right ( - JJF1029999)

1шт.

17

1958979C1

SUPPORT

BRACKET - speaker, upper left ( - JJF1029999)

1шт.

18

1958980C1

SUPPORT

BRACKET - speaker, upper right ( - JJF1029999)

1шт.

19

758-2

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW, SELF TAPPING, ( - JJF1029999) Pan Hd, M4.2 x 16

8шт.

19

1971333C1

BOLT,Tapping, M4.2 x 13mm

SCREW - pan head, cross recess, 4.2 mm x 13mm (JJF1030000 - )

12шт.

20

REF

INSTRUCTION

Radio, Order From Ship Direct or Audiovox

1шт.

197745A1

ANTENNA

ASSEMBLY - 'Facon'(Cab JKJ51530 - ), Includes Ref: 21, 22

1шт.

21

198960A1

ANTENNA

MAST - rubber

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - (Order 197745A1)

1шт.

23

1971229C2

COVER

Panel - Speaker cover, LH

1шт.

24

1971349C2

COVER

Speaker, Panel - RH

1шт.
