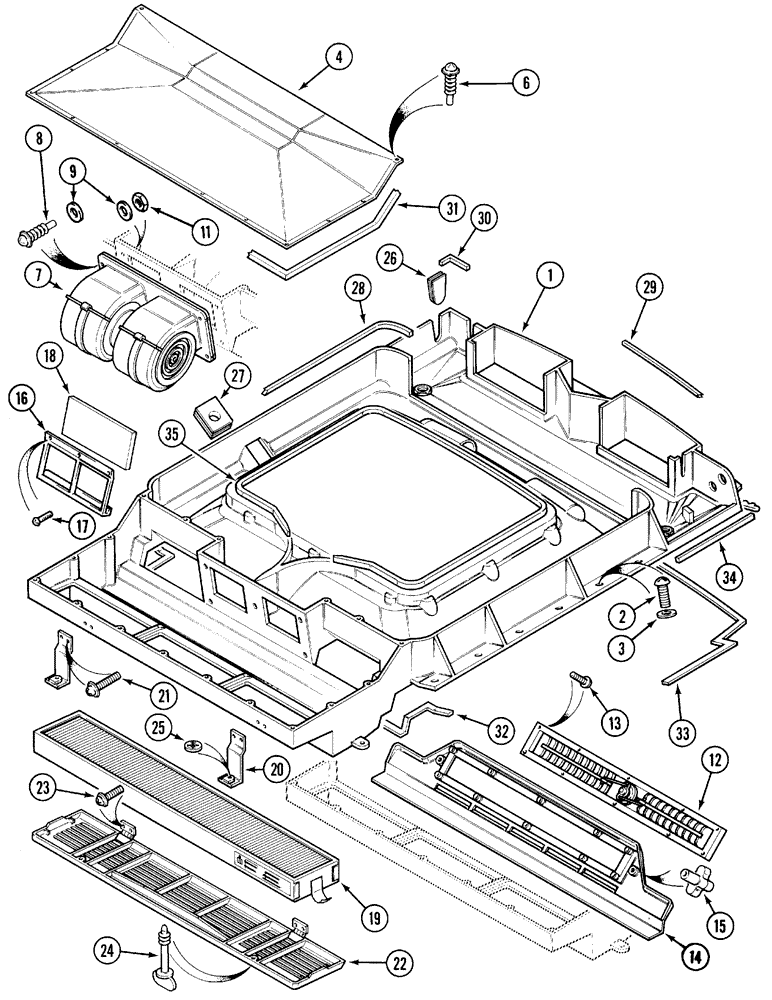

Запчасти Case IH 5140 (9-100) - CAB, AIR FILTER, BLOWER HOUSING AND INNER ROOF (09) - CHASSIS/ATTACHMENTS

1

1331018C1

PADDING

PANEL - inner roof (Panel with hatch)

1шт.

1

1990976C2

PADDING

PANEL - inner roof (Panel without hatch)

1шт.

3399852R1

PLASTIC GASKET

SEALANT - Terostat

1шт.

2

1535613C1

SCREW,Hex Wshr, M6.3 x 38mm

- self tapping, 6.3 x 38 mm

16шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

4

1331196C1

COVER

- assembly, blower

1шт.

6

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo, 4.8 x 16 mm

18шт.

7

REF

INSTRUCTION

BLOWER - air (See Figure 9-102)

1шт.

8

1989999C1

SCREW

- hex, 6 mm x 25mm

5шт.

9

495-81106

WASHER,0.28" ID x 0.75" OD x 0.05" Thk

- flat, 9/32 x 3/4 x 3/64 inch

8шт.

11

905255R1

NUT,M6 x 1

NUT - locking, 6 mm

4шт.

12

1958575C1

FLAP

LOUVRE - air recirculation

1шт.

13

1344093C1

SCREW,Pozidriv Pan Hd, M3.50 x 16mm, Hi-Lo

- tapping

10шт.

14

1958672C1

PANEL

- recirculation door

1шт.

15

1977991C1

KNOB

- threaded, 6 mm

2шт.

16

1331156C1

CLAMP

CLIP - recirculation door

1шт.

17

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo, 4.8 x 16 mm

6шт.

18

1331180C2

FILTER SCREEN

FILTER - air recirculation

2шт.

19

143481C2

AIR CLEANER

PACKAGE - cab panel filter

1шт.

20

1340138C1

SUPPORT

- assembly, filter

2шт.

21

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo, 4.8 x 16 mm

4шт.

22

1974648C3

COVER

- assembly, air filter

1шт.

23

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo, 4.8 x 16 mm

4шт.

24

1975759C3

BUTTON

KNOB -

2шт.

25

1971364C1

RETAINER

WASHER -

2шт.

26

1331032C1

GROMMET

- plug (Version with heater only)

2шт.

26

1331032C1

GROMMET

- plug (Version with air conditioning)

1шт.

27

1971356C1

GROMMET

- harness, harness

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - foam, 3200 mm, (Cut from 1971350C1)

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - foam, 1060 mm, (Cut from 1971350C1)

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - foam, 400 mm, (Cut from 1971350C1)

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - foam, 2475 mm, (Cut from 1340329C1)

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - foam, 1400 mm, (Cut from 1343842C1)

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - foam, 1760 mm, (Cut from 1971350C1)

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - foam, 670 mm, (Cut from 1971350C1)

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - foam, 1300 mm, (Cut from 1971350C1)

1шт.

1971350C1

SEAL

- bulk, foam, adhesive-backed (600 inch) 15240 mm

1шт.

1340329C1

SEAL

- foam, bulk length (600 inch) 15240 mm

1шт.

1343842C1

SEAL

SEAL - foam, bulk length (600 inch) 15240 mm

1шт.
