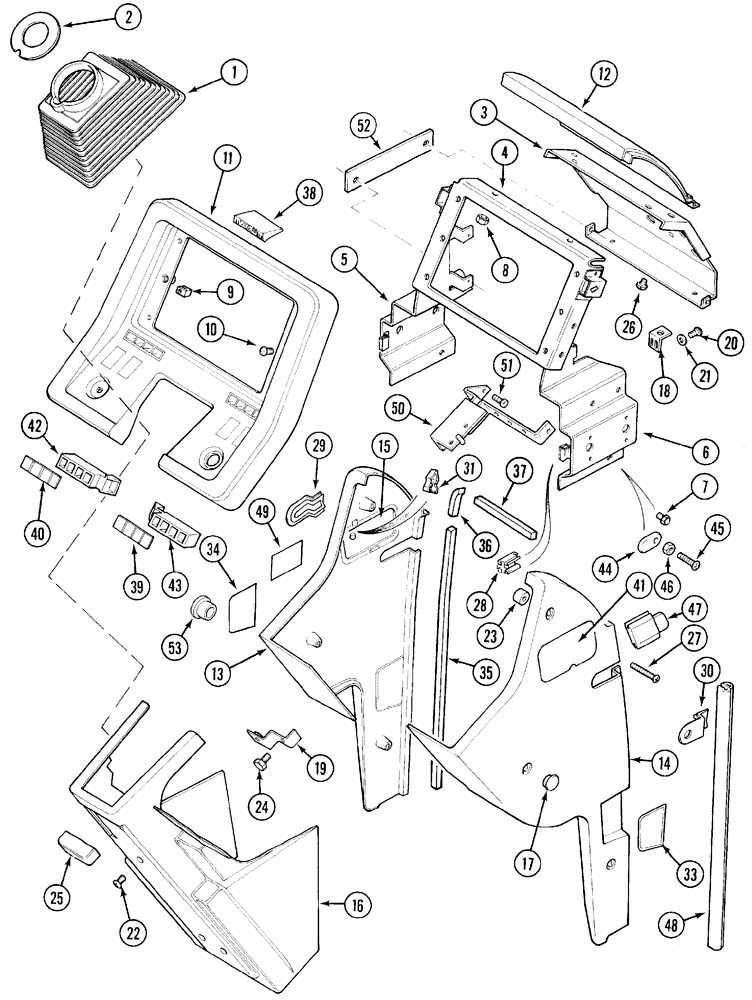

Запчасти Case IH 5140 (9-072) - INSTRUMENT PANEL, NON CAB VERSION (09) - CHASSIS/ATTACHMENTS

1

1977839C2

BOOT

- assembly, steering column

1шт.

2

1977448C2

WASHER

- boot

1шт.

3

1974761C4

SUPPORT

BRACKET - instrument panel, front

1шт.

4

T103722

BRACKET

SUPPORT - insrument

1шт.

5

131362A2

SUPPORT ASSY.

SUPPORT - shroud, right

1шт.

6

177895A1

SUPPORT ASSY.

SHROUD - support, right

1шт.

7

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1 x 14 mm

14шт.

8

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

- hex flange, 6 mm - 1

8шт.

9

131-606

SPRING NUT,Tinn, U, #10

- U-type, No. 10

2шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

2шт.

11

1530985C1

PADDING

- instrument face

1шт.

12

1531171C3

PADDING

- instrument panel top

1шт.

13

1534731C1

PADDING

- inst. panel left

1шт.

14

1534732C1

PADDING

- instrument panel, right

1шт.

15

1531192C2

COVER

- fuse box, left

1шт.

16

1977519C3

PADDING

PANEL - steering column cover

1шт.

17

1531826C1

PLUG

COVER - mounting hole

6шт.

18

T102637

ANGLE

-

1шт.

19

1977469C1

HOLDER

BRACKET - cover mounting

1шт.

20

31001R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW - pan head, cross recess, 4.2 mm x 13mm

2шт.

21

934902R1

WASHER,M5.3 x 15 x 1.6

- flat

2шт.

22

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

SCREW - pan head, special, 6 - 1.0 x 12 mm

3шт.

23

T103866

SPACER

-

6шт.

24

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

25

1981926C2

BUTTON

KNOB - tilt release (See Figures 5-2,5-4)

1шт.

26

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

3шт.

27

31347R1

SCREW,Cross Pan Hd, M6 x 40

- pan head, cross recess, 6 mm x 40mm

6шт.

28

T103365

SPRING NUT

- cage spring

6шт.

29

1531629C3

PROTECTIVE COVER

GROMMET - housing, instrument panel, left

1шт.

30

1531630C3

PROTECTIVE COVER

GROMMET - housing, instrument panel, right

1шт.

31

T104317

TOOL

- fuse extractor

2шт.

32

REF

INSTRUCTION

DECAL - Forward / Neutral / Reverse, See Figure:9-164

1шт.

33

1531764C2

DECAL

- inst. panel housing, right

1шт.

34

1534723C1

DECAL

- inst. panel housing left

1шт.

34

1531765C2

DECAL

- instrument panel, left ( - JJF1016704)

1шт.

35

1531822C1

SEALING STRIP

STRIP - seal, self adhesive (If fitted)

2шт.

36

1531823C1

SEALING STRIP

STRIP - seal, self adhesive (If fitted)

2шт.

37

1531825C1

SEALING STRIP

STRIP - seal, self adhesive (If fitted)

2шт.

38

1340049C1

SYMBOLS

EMBLEM - Maxxum

1шт.

39

127424A1

DECAL

- instrument panel, right (JJF1030000 - )

1шт.

39

1340127C2

DECAL

- instrument panel, right ( - JJF1029999)

1шт.

40

1340128C2

DECAL

- instrument panel, left

1шт.

41

1531193C2

COVER

- fuse box, right

1шт.

42

1977909C1

CASE

BAR - light, left

1шт.

43

1977910C1

CASE

BAR - light, right

1шт.

44

1533267C1

RETAINER

-

2шт.

45

905962R1

SCREW,#6 - 20 x 4.80mm

- 6 mm x 20mm

2шт.

46

825-1406

NUT,M6, Cl 8

2шт.

47

1533079C1

SEAL

- insert

2шт.

48

1533096C1

SEAL

STRIP - seal, non adhesive

1шт.

49

1531153C1

DECAL

-

1шт.

50

1958600C3

SUPPORT ASSY.

SUPPORT - assembly, tilt lever stop

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

5шт.

52

1533879C2

SUPPORT

BAR -

2шт.

53

3401777R1

PLUG

- 36 mm

1шт.
