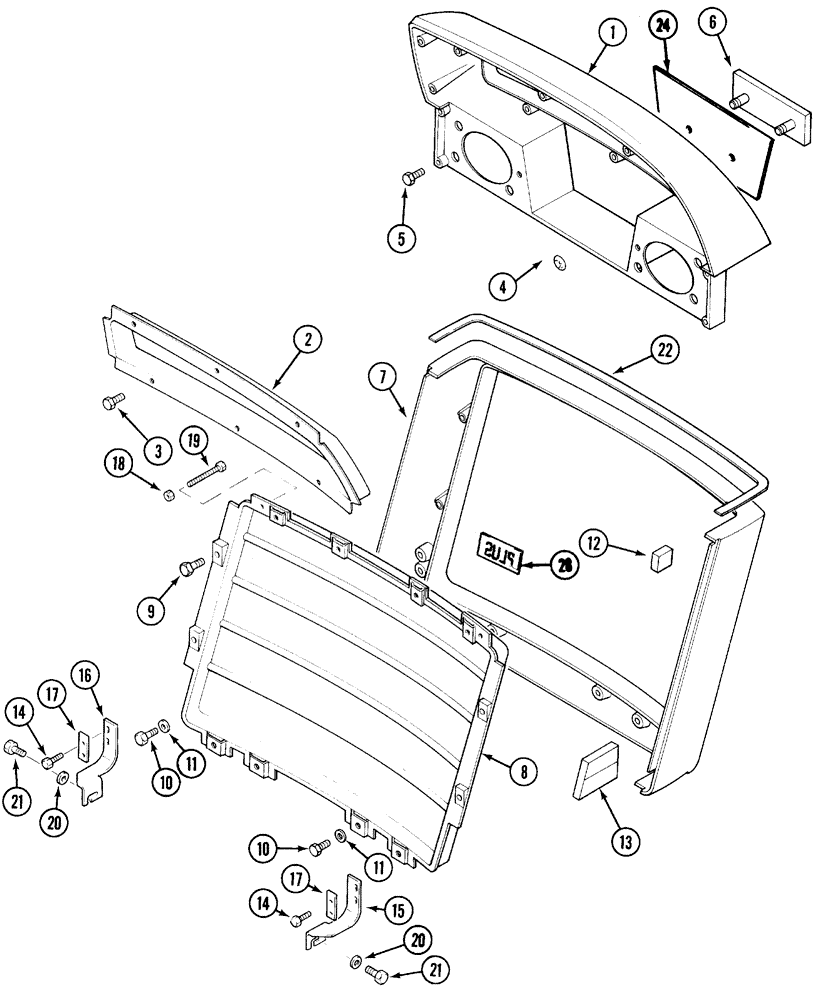

Запчасти Case IH 5140 (9-044) - FRONT GRILLES AND RELATED PARTS, JJF1019254 - (09) - CHASSIS/ATTACHMENTS

1

T101570

GRILLE

- upper

1шт.

2

1533893C1

GRILLE

SCREEN - grille, upper

1шт.

3

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

6шт.

4

1536080C1

PUSH-ON NUT

- push-on type

2шт.

5

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

11шт.

6

1533146C2

SYMBOLS

EMBLEM - 'Maxxum'1

1шт.

7

T101567

FRAME

GRILLE - lower

1шт.

8

1534216C1

GRILLE ASSY

SCREEN - grille, lower

1шт.

9

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

6шт.

10

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

1534447C1

SEAL

- grille upper

2шт.

13

1534213C1

SEAL

-

2шт.

14

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

15

1534376C2

SUPPORT

- right

1шт.

16

1534377C2

SUPPORT

- left

1шт.

17

T104118

PLATE

-

2шт.

18

825-1406

NUT,M6, Cl 8

2шт.

19

614-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 60 mm, 8.8

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.

21

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 16, 8.8

2шт.

22

1531991C1

SEAL

STRIP - seal

1шт.

23

137587A1

DECAL

EMBLEM - 'PLUS'(JJF1030000 - )

1шт.

24

224613A1

DECAL

- black plastic

1шт.
