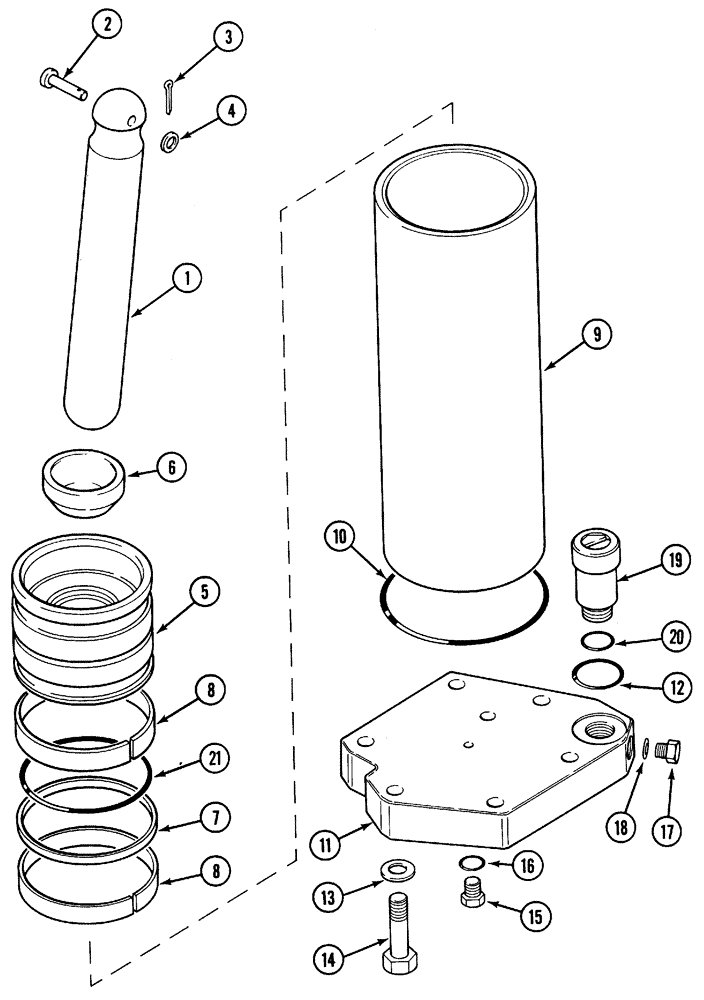

Запчасти Case IH 5140 (8-076) - HITCH, ROCKSHAFT HYDRAULIC CYLINDER (08) - HYDRAULICS

1

A186549

PISTON ROD

ROD - piston

1шт.

2

A186816

PIN

- clevis

1шт.

3

732-2512

COTTER PIN,M2.5 x 12

PIN - cotter

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

1341295C1

PISTON

- assembly, hyd. cylinder, Includes Ref: 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON -

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT -

1шт.

7

A186826

SEAL

- rectangular

1шт.

8

A186324

RING,Split, 98.64mm ID x 105mm OD x 15.88mm Thk

- piston wear

2шт.

9

1997145C2

SLEEVE ASSY

LINER - hydraulic cylinder

1шт.

10

302910A1

O-RING,5.7mm Thk x 114.2mm ID, Cl 6

- hitch cylinder, 114 ID x 5.7 mm

2шт.

11

A186838

CAP

- hydraulic cylinder

1шт.

12

238-5029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 5, 75 Duro

-029, 70 Duro, 1.489" ID x .070 Thk

1шт.

13

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm

6шт.

15

9672438

PLUG,7/16" - 20 ORB

Incl. Ref: 16 Hex Hd, 7/16"-20 ORB

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

17

129998

PLUG,1/2" - 20 ORB

Incl. Ref. 18 Hex Hd, 1/2"-20 ORB

1шт.

19

1957869C1

VALVE

- assembly, relief, Includes Ref: 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

239-5342

O-RING,Square, 0.188" Thk x 3.625" ID, -342

1шт.

18

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
