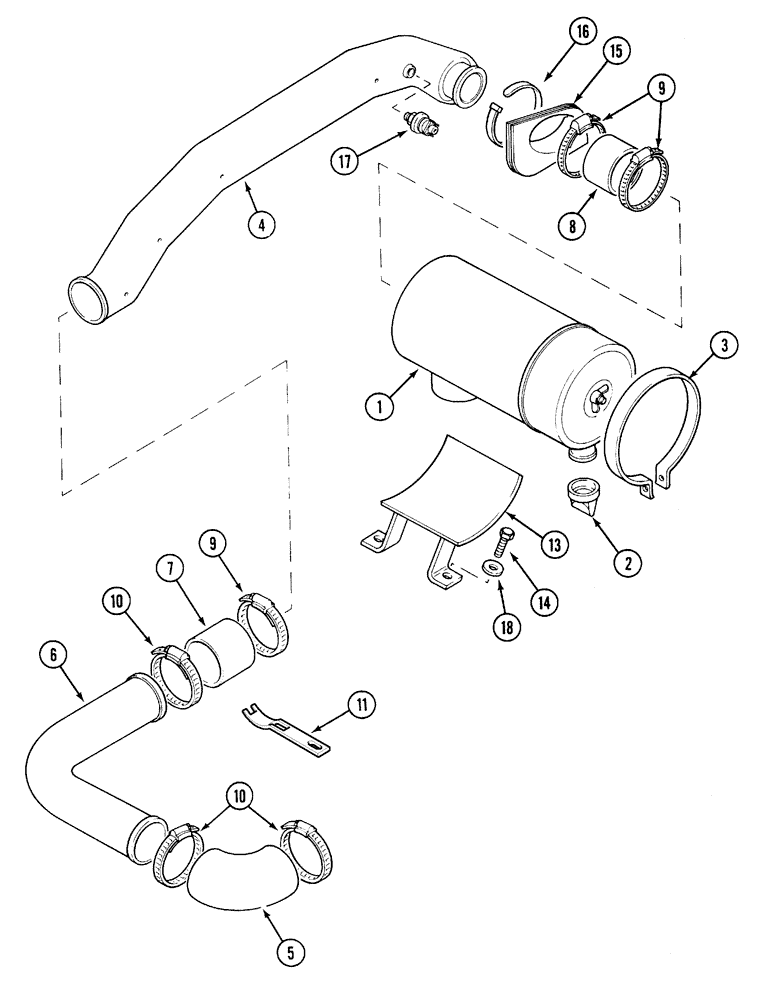

Запчасти Case IH 5140 (2-006) - AIR CLEANER AND CONNECTIONS, 5140/5240 AND 5250 (02) - ENGINE

1

REF

INSTRUCTION

CLEANER - air, See Figure 2-8

1шт.

1

REF

INSTRUCTION

CLEANER - air (5250 tractors), See Figure 2-8

1шт.

2

A184939

VALVE

- dust

1шт.

3

T103239

STRAP

BAND - air cleaner mounting (208mm ID)

1шт.

3

1534843C1

CLAMP

BAND - mounting, air cleaner (233mm ID)

1шт.

4

1530736C2

LARGE HOSE

PIPE - air inlet (5140/5240 tractors)

1шт.

4

1534948C2

LARGE HOSE

PIPE - air inlet (5250 tractors)

1шт.

5

T100698

HOSE

ELBOW - air intake

1шт.

6

1530733C2

LARGE HOSE

PIPE - air inlet

1шт.

7

1533379C1

HOSE

- coupling

1шт.

8

1533407C1

HOSE

- coupling (5140/5240 tractors)

1шт.

8

906010R1

HOSE

- coupling (5250 tractors)

1шт.

9

3219245R1

CLAMP,M70-90, Worm

- hose (5140/5240 tractors)

3шт.

9

3219245R1

CLAMP,M70-90, Worm

- hose (5250 tractors)

1шт.

9

3226801R1

CLAMP,M100-120, Worm

- hose (5250 tractors)

2шт.

10

3220461R1

CLAMP,M80-100, Worm

- hose

3шт.

11

235743A1

SUPPORT

BRACKET - pipe

2шт.

13

1533565C2

SUPPORT ASSY.

SUPPORT - assembly, air cleaner (5140/5240 tractors)

1шт.

13

1534834C1

SUPPORT ASSY.

SUPPORT - air cleaner (5250 tractors)

1шт.

14

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 18 mm

2шт.

15

1531506C3

SEAL

SEAL - air inlet pipe

1шт.

16

3402979R2

BAND

STRAP - cable tie (Replaced by item 10)

1шт.

17

292950A1

SWITCH

- restriction, air cleaner

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.
