Запчасти Case IH 5140 (6-076) - TRANSMISSION BREATHER (06) - POWER TRAIN

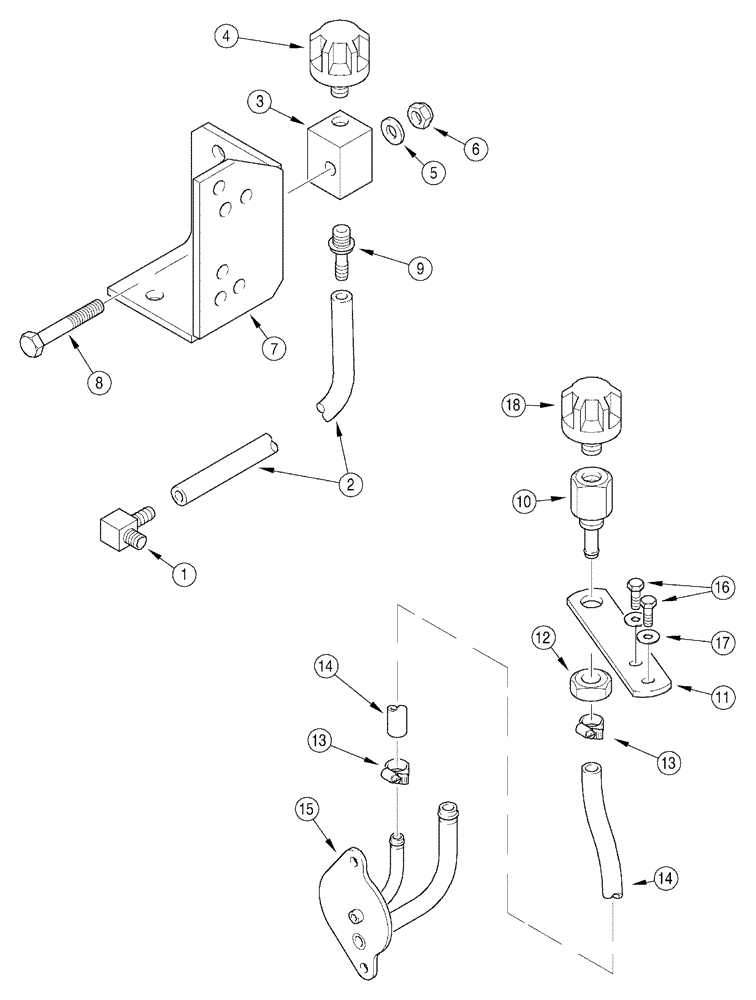

Схема запчастей Case IH 5140 - (6-076) - TRANSMISSION BREATHER (06) - POWER TRAIN
10
1
12
18
15
13
9
8
5
14
14
17
11
13
3
4
2
16
7
6

Артикул

Название

Примечание

Количество

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, hose, 1/4 barb end x 1/4 inch PT (JJF1030000 - ), Start Serial: JJF1030000

1шт.

2

132908A1

HOSE,6.35mm ID x 275mm L, SAE 30R6 or 30R7

6.35 mm ID x 275.00 mm, SAE J30R6 or R7, Breather (JJF1030000 - ), Start Serial: JJF1030000

1шт.

3

132093A2

BLOCK

- breather mounting (JJF1030000 - ), Start Serial: JJF1030000

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic unit housing, 1/4 inch PT (JJF1030000 - ), Start Serial: JJF1030000

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

(JJF1030000 - ) M10 x 18 x 1.6, Start Serial: JJF1030000

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (JJF1030000 - ) M10 x 1.5, Cl 8, Start Serial: JJF1030000

1шт.

7

1533276C1

SUPPORT

SUPPORT - assembly (JJF1030000 - ), Start Serial: JJF1030000

1шт.

8

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 60 mm (JJF1030000 - ), Start Serial: JJF1030000

1шт.

9

220-502

COUPLING, BREAK AWAY

ADAPTER - straight, 1/4 inch barb end x PT (JJF1030000 - ), Start Serial: JJF1030000

1шт.

144105A1

PACKAGE, REPAIR

PACKAGE - field, transmission breather, Includes: Ref. 10 - 18 ( - JJF1029999), Includes Ref: 10-18, Serial Range: -JJF1029999

1шт.

10

143997A1

FITTING

CONNECTOR - transmission breather ( - JJF1029999), Serial Range: -JJF1029999

1шт.

11

143996A1

SUPPORT

PLATE - retainer ( - JJF1029999), Serial Range: -JJF1029999

1шт.

12

934392R1

NUT,Thin, M16 x 2, Cl 04

- hex, 16 mm - 1.5 ( - JJF1029999), Serial Range: -JJF1029999

1шт.

13

905893R1

CLAMP,M12-23, Worm

- hose ( - JJF1029999), Serial Range: -JJF1029999

2шт.

14

144001A1

HOSE

- breather, 55 mm ( - JJF1029999), Serial Range: -JJF1029999

1шт.

15

143992A1

COVER ASSY

COVER - assembly ( - JJF1029999), Serial Range: -JJF1029999

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

(With Air conditioning) ( - JJF1029999) Hex, M6 x 16, 8.8, Serial Range: -JJF1029999

2шт.

16

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

(Without Air conditioning) ( - JJF1029999) Hex, M6 x 12, 8.8, Serial Range: -JJF1029999

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

( - JJF1029999) M6, Serial Range: -JJF1029999

2шт.

18

1971726C1

BREATHER,1/4" - 18

- hydraulic unit housing, 1/4 inch PT ( - JJF1029999), Serial Range: -JJF1029999

1шт.

Выбрано товаров: 20
