Запчасти Case IH 5140 (6-050) - TRANSMISSION, CREEPER CONTROL (06) - POWER TRAIN

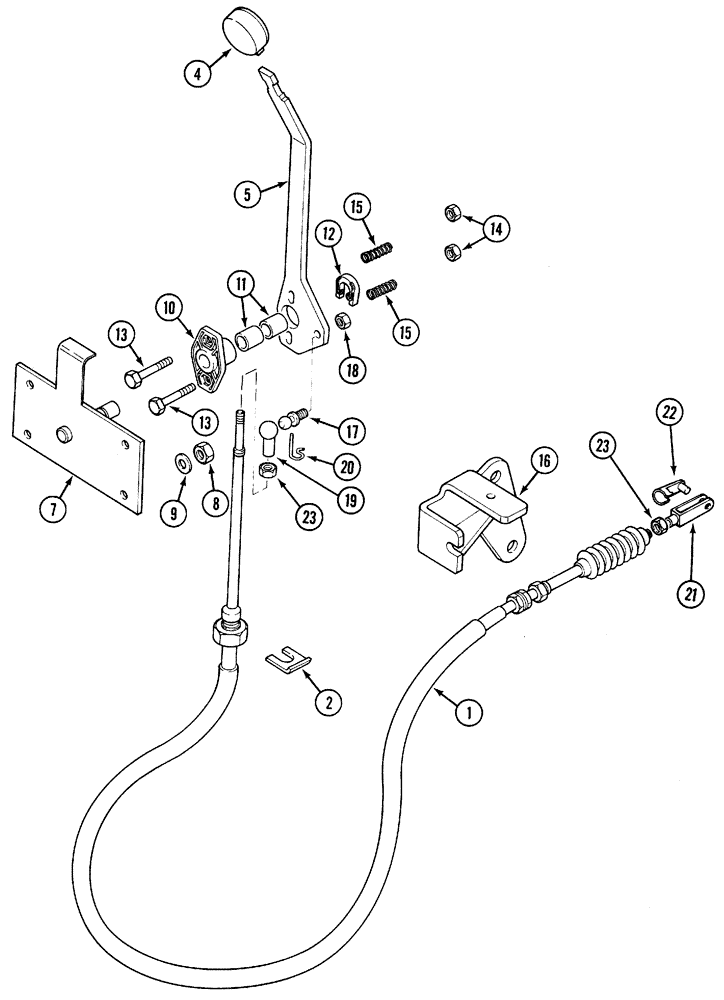

Схема запчастей Case IH 5140 - (6-050) - TRANSMISSION, CREEPER CONTROL (06) - POWER TRAIN
15
13
9
4
13
22
23
18
15
14
19
10
20
12
21
5
23
7
2
17
16
1
8
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

KIT - Synchro-Creeper, Field, See also Figures: 6-2, 6-20, 6-52, Includes Ref: 2-23

1шт.

1

121630A2

CABLE ASSY.

CABLE - assembly, creeper control

1шт.

2

T101025

CABLE RETAINER

BAR - cable mounting

1шт.

4

1340023C1

KNOB

- creep speed

1шт.

5

122505A1

CONTROL LEVER

LEVER - hand

1шт.

7

1531143C3

SUPPORT ASSY.

SUPPORT - assembly

1шт.

8

825-1408

NUT,M8, Cl 8

4шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

4шт.

10

108709A1

HUB

ARM - assembly

1шт.

11

1533534C1

PLASTIC RING

BUSHING - plastic ( - JJF1029999)

2шт.

12

T101807

CLIP

- safety

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads Hex, M6 x 20, 8.8

2шт.

14

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.

15

T102381

SPRING

- compression ( - JJF1029999)(Not in Synchro Creep Kit)

2шт.

16

140552A1

SUPPORT

BRACKET - creeper (Not in Synchro Creep Kit)

1шт.

17

122374A1

BALL STUD,M6 x 1

STUD - ball, 10 mm

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

19

906017R1

BALL JOINT

SOCKET - ball end

1шт.

20

NSS

NOT SOLD SEPARAT

CLIP - (Order 906017R1)

1шт.

21

906021R1

CLEVIS

- 6 x 24 mm

1шт.

22

906022R1

CLIP

- 6 x 24 mm

1шт.

23

825-1406

NUT,M6, Cl 8

2шт.

Выбрано товаров: 22
