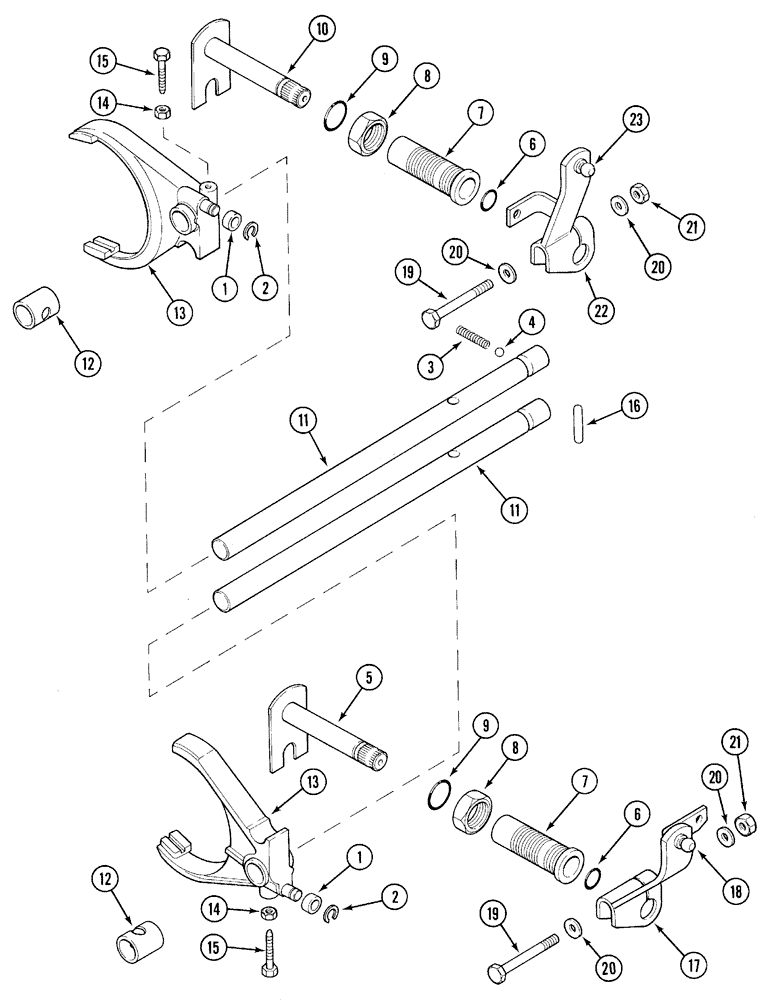

Запчасти Case IH 5140 (6-042) - TRANSMISSION, GEAR SHIFT LINKAGE, INTERNAL (06) - POWER TRAIN

1

A178954

SLEEVE

- shift fork pin

2шт.

2

100-3344

SNAP RING,#X43, .438" Dia, E-Type

E-RING - snap, No. 44

2шт.

3

A175972

SPRING

- poppet

2шт.

4

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, Class 24

2шт.

5

1341111C1

LEVER

ARM - gear shift, 1st and 2nd speed

1шт.

6

638-52150

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

Cl 5, 15MM ID x 1.8 Thk

2шт.

7

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

- actuating shaft

2шт.

8

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 1-1/16-12 inch NF

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

10

1341112C1

LEVER

ARM - gear shift, 3rd and 4th speed

1шт.

11

1345717C1

SHIFT RAIL

RAIL - shifter

2шт.

12

A188130

BUSHING

- fork assembly

4шт.

13

A188233

FORK

- assembly

2шт.

14

829-1310

NUT,M10, Cl 10

2шт.

15

1345713C1

BOLT,Hex, M10 x 45mm, Cone Pt

BOLT - hex, 10 mm x 45mm

2шт.

16

A188132

PIN

- interlock

1шт.

17

1341122C1

LEVER

- assembly, shift, 1st and 2nd speed, Includes Ref: 18

1шт.

18

3234708R1

BALL STUD

BALL - 10 mm

1шт.

19

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

20

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

21

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

22

1341123C1

LEVER

- assembly, shift, 3rd and 4th speed, Includes Ref: 23

1шт.

23

3234708R1

BALL STUD

BALL - 10 mm

1шт.
