Запчасти Case IH 5130 (5-012) - STEERING PIPES, PUMP TO STEERING CYLINDER 2WD. (05) - STEERING

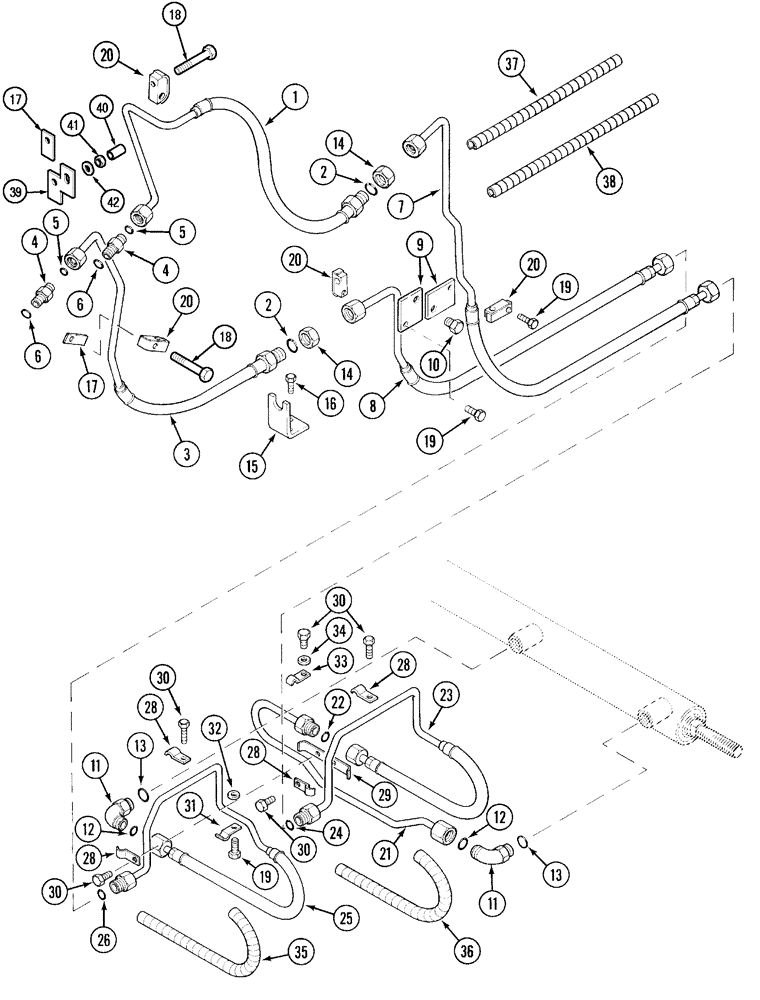

Схема запчастей Case IH 5130 - (5-012) - STEERING PIPES, PUMP TO STEERING CYLINDER 2WD. (05) - STEERING
30
42
30
40
19
25
21
7
34
6
22
39
13
29
17
41
9
33
17
4
2
30
6
14
23
10
24
30
4
14
18
28
26
12
5
13
20
11
3
8
2
12
19
5
19
20
35
28
16
38
20
37
15
28
11
32
18
36
31
1
20
28

Артикул

Название

Примечание

Количество

1

259951A1

PIPE

- steering, right rear

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

T104239

HYD TUBE

- steering, rear left

1шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref: 5, 6 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

1531818C1

PIPE

- front right

1шт.

8

1531839C1

PIPE

- steering, front left

1шт.

9

T104010

BRACKET

- steering pipe, Serial Range: fitted-engine

1шт.

10

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

11

T100113

ELBOW

- 90 degree, Includes Ref: 12, 13

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

2шт.

15

T102814

SUPPORT

BRACKET - steering pipe, left

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

17

1531006C1

LARGE PLATE

BAR - pipe clamp

1шт.

18

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

19

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

3шт.

20

T101170

CLAMP

- pipe

3шт.

21

T103961

PIPE

- cylinder, Includes Ref: 22

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

1531866C1

PIPE

- steering, right (60-80 inch), Includes Ref: 24

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

1533741C1

PIPE

- steering, right (68-96 inch), Includes Ref: 24

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

1531864C1

PIPE

- steering, left (60-80 inch), Includes Ref: 26

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

1533742C1

PIPE

- steering, left (68-96 inch), Includes Ref: 26

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

T104388

CLAMP

- pipe

4шт.

29

T104370

BRACKET

- pipe retaining

1шт.

30

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

5шт.

31

3059447R2

CLAMP

- steering pipes

1шт.

32

3145416R1

SPACER

- ring

1шт.

33

714815R2

CLAMP

- pipe

1шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

1531104C1

HOSE PROTECTION

HOSE - protection, 450 mm

1шт.

36

1531104C1

HOSE PROTECTION

HOSE - protection, 450 mm

1шт.

37

NSS

NOT SOLD SEPARAT

HOSE - protection, 410 mm (Order 1531986C1 and, Serial Range: Cut-Length)

1шт.

38

1531986C1

HOSE PROTECTION

HOSE - protection, 495 mm

1шт.

39

259952A1

SUPPORT

RETAINER - pipe

1шт.

40

259953A1

SPACER

- pipe retainer

1шт.

41

825-1406

NUT,M6, Cl 8

42 M6, Cl 8

1шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 45
