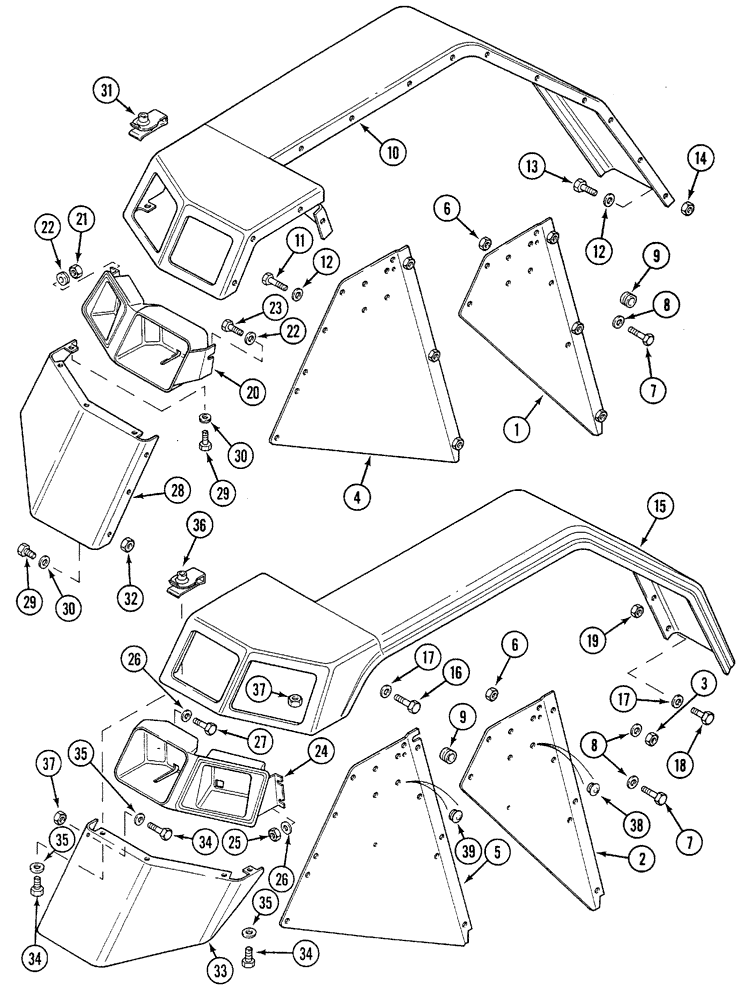

Запчасти Case IH 5130 (9-126) - FENDERS AND EXTENSIONS, REAR, CAB (09) - CHASSIS/ATTACHMENTS

1

1331117C6

FENDER ASSY.

EXTENSION - fender side sheet, left

1шт.

2

1331118C5

EXTENSION

- fender side sheet, right

1шт.

3

825-1408

NUT,M8, Cl 8

2шт.

4

1958639C6

EXTENSION

- fender, left, 740 mm

1шт.

4

1987626C1

EXTENSION

- fender, left, 320 mm (Not Illustrated)

1шт.

5

1958640C4

EXTENSION

- fender, right, 740 mm

1шт.

5

1987627C1

EXTENSION

- fender, right, 320 mm (Not Illustrated)

1шт.

6

825-1408

NUT,M8, Cl 8

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

6шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

4шт.

9

1340167C1

GROMMET

- fender harness

2шт.

10

1958613C6

FENDER

- narrow, left, 225 mm

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

14шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

13шт.

14

825-1408

NUT,M8, Cl 8

3шт.

15

1958614C2

FENDER

- narrow, right, 225 mm

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

14шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

13шт.

19

825-1408

NUT,M8, Cl 8

3шт.

20

1331114C1

HOUSING

- tail and work light, left

1шт.

21

825-1406

NUT,M6, Cl 8

3шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

23

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

1шт.

24

1331113C1

HOUSING

- tail and work light, right

1шт.

25

825-1406

NUT,M6, Cl 8

3шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

27

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

1шт.

28

1977553C1

PANEL

- fender, left (With hitch control)

1шт.

28

1331106C1

PANEL

- fender, left (Without hitch control)

1шт.

29

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

7шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

7шт.

31

30380R1

SPRING NUT,M8, U

- U shape retainer, 8 mm

4шт.

32

825-1408

NUT,M8, Cl 8

3шт.

33

1977554C1

PANEL

- narrow fender, right (With hitch control)

1шт.

33

1331107C1

PANEL

- narrow fender, right

1шт.

34

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

7шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

7шт.

36

30380R1

SPRING NUT,M8, U

- U shape retainer, 8 mm

4шт.

37

825-1408

NUT,M8, Cl 8

3шт.

38

1533636C1

PLUG

- optional floodlamp, 25.5 mm

2шт.

39

1533637C1

PLUG

- A-Post, 12.5 mm

2шт.
