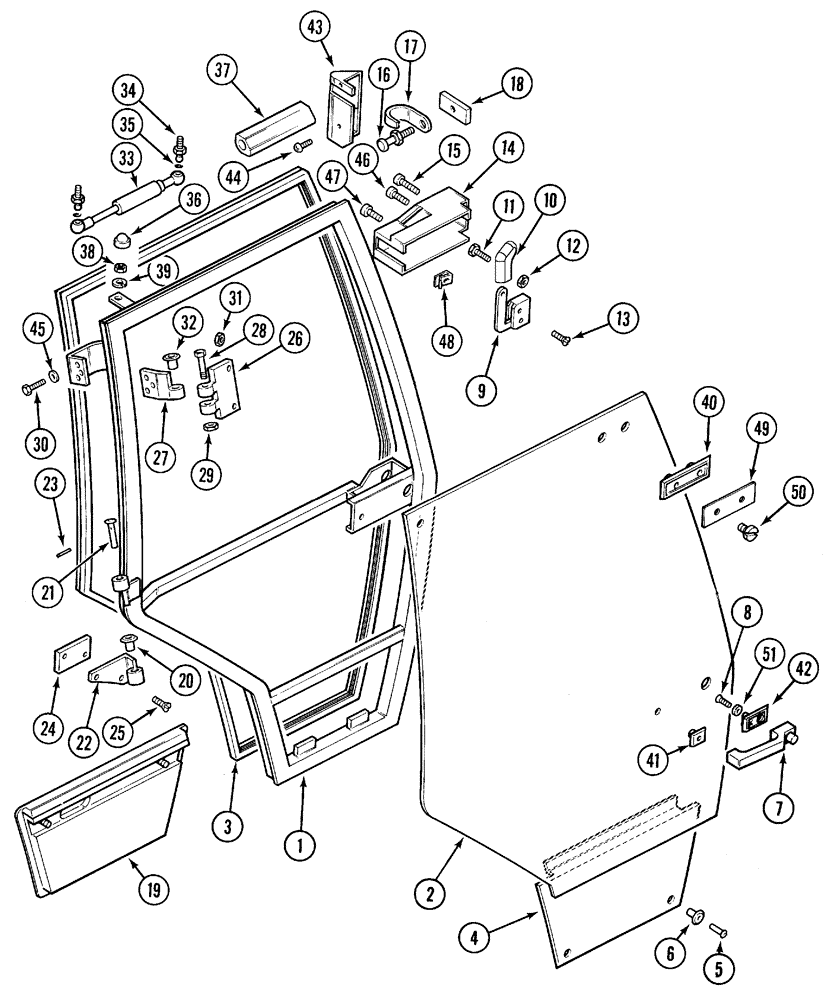

Запчасти Case IH 5130 (9-082) - CAB, DOOR, RIGHT, - JJF1020699 (09) - CHASSIS/ATTACHMENTS

1

3093763R91

DOOR ASSY.

DOOR - complete, right, Includes Ref: 2-6

1шт.

2

1330930C1

GLASS

- door, right

1шт.

When Replacing Glass, Use Seal Kit 3404053R91

1шт.

3

1330998C2

DOOR SEAL

SEAL - weather, door, right

1шт.

4

1330932C1

PANEL

- door lower, right

1шт.

5

1328414C1

RIVET,Pop, 4mm OD x 22mm L

- blind

3шт.

6

1328415C1

SPACER

CLAMP -

3шт.

7

1971204C1

HANDLE

- door, outside

1шт.

8

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

- panhead, Phillips, 6 - 1.0 x 30 mm

3шт.

9

K303806

LOCK

-

1шт.

10

112069A1

DOOR COVER

KNOB - door, inner

1шт.

11

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 20 mm, Class 12.9

1шт.

12

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0

1шт.

13

905980R1

HEX SOC SCREW,FLAT, M6 x 1 x 25mm, Cl 8.8

2шт.

14

1331069C2

DOOR COVER

COVER - door lock, right

1шт.

15

565-102

HEX SOC SCREW,M5 x 25mm, Cl 8.8

- cap, hex socket, 5 mm x 25mm

1шт.

16

1977984C2

LOCK PIN,12mm OD x 42mm L

PIN - lock

1шт.

17

1977919C1

PROTECTOR

- door striker

1шт.

18

1328494C1

PLATE

- door latch

1шт.

19

1328481C2

PANEL

- door trim, right

1шт.

20

1977353C1

BUSHING

- lower hinge

1шт.

21

1977354C1

PIN

- hinge, lower

1шт.

22

1975989C1

HINGE

- lower frame, right

1шт.

23

738-1320

LOCK PIN,M3 x 20, Slotted

PIN - slotted spring, 3 x 20 mm

1шт.

24

1977356C1

PLATE

- hinge mounting

1шт.

25

1344313C1

SCREW,M8 x 40mm, Gr 8.8

- allen head, 8 mm x 40mm

2шт.

26

1977318C1

PLATE

LEAF - upper hinge

1шт.

27

1977315C1

PLATE

LEAF - upper hinge

1шт.

28

1977355C1

SCREW

PIN - upper hinge

1шт.

29

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8

1шт.

30

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

3шт.

31

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

32

1977390C1

BUSHING

- upper hinge

1шт.

33

1977416C1

GAS STRUT

STRUT - gas

1шт.

34

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

2шт.

35

3233348R1

CLIP

- retaining

2шт.

36

3221520R1

CAP

PLUG - cap, 10 mm

1шт.

37

1977426C1

PROTECTOR

- right

1шт.

38

825-1410

NUT,M10, Cl 8

1шт.

39

892-11010

LOCK WASHER,M10

1шт.

40

1971220C1

GASKET

- outside mirror

1шт.

41

1331194C1

DOOR SEAL

- door handle

1шт.

42

1331155C1

GASKET

- door handle

1шт.

43

1975802C1

COVER

- door striker

1шт.

44

905881R1

SELF-TAP SCREW,Flat Hd, M4.2 x 13

SCREW - flat head, 4.2 mm x 13mm

2шт.

45

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

3шт.

46

565-103

HEX SOC SCREW,M6 x 12mm, Cl 8.8

- class 8.8, 6 mm x 12mm

1шт.

47

905981R1

HEX SOC SCREW,M5 x 16mm, Cl 8.8

- cap, hex socket, 5 mm x 16mm

1шт.

48

1340419C1

CLIP

- nut

1шт.

49

1344160C1

LARGE PLATE

PLATE - outside mirror

1шт.

50

905991R1

SCREW,Pozidrive, Pan HD, M8 x 12mm, Cl 4.8

- 8 mm x 12mm

2шт.

51

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.
