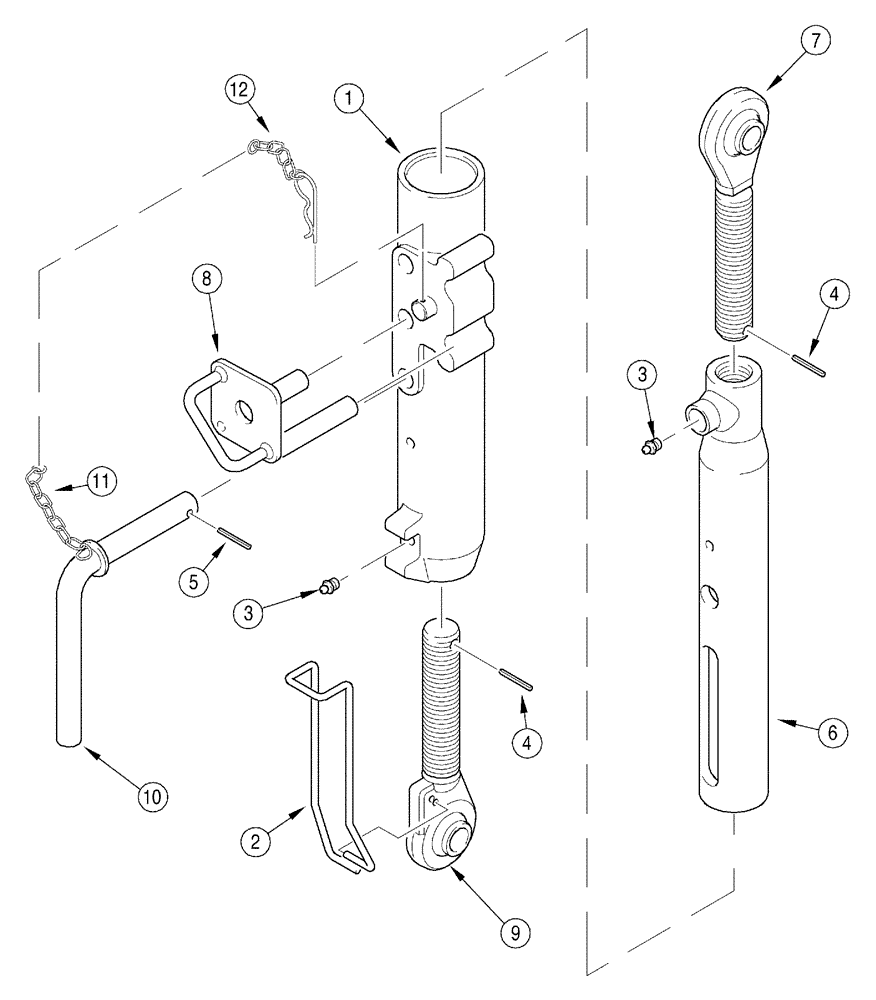

Запчасти Case IH 5130 (9-034) - LINK ASSEMBLY,TOP, FLOAT VERSION, C.B.M., JJF1030630 - (09) - CHASSIS/ATTACHMENTS

130422A1

UPPER LINK

LINK - assembly, top float version, Includes Ref: 1-12

1шт.

1

130444A1

TURNBUCKLE

-

1шт.

2

130445A1

SPRING CLIP

- upper link

1шт.

3

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

4

Q5343

LOCK PIN,M5 x 30, Slotted

PIN, LOCK, M5 x 30, Slotted

2шт.

5

738-5524

LOCK PIN,M5 x 24, Slotted

PIN - roll, 5 x 24 mm

1шт.

6

130423A1

TURNBUCKLE

- assembly

1шт.

7

130425A1

ROD

SOCKET - assembly, tractor side

1шт.

8

130428A1

SUPPORT ASSY.

BRACKET - assembly, locking

1шт.

9

130432A1

ROD

SOCKET - assembly, implement side

1шт.

10

130437A1

HITCH PIN

PIN - assembly, Includes Ref: 11

1шт.

11

130438A1

RING, SNAP

RING - assembly

1шт.

12

130439A1

CHAIN,3 Point Linkage

CHAIN - assembly

1шт.
