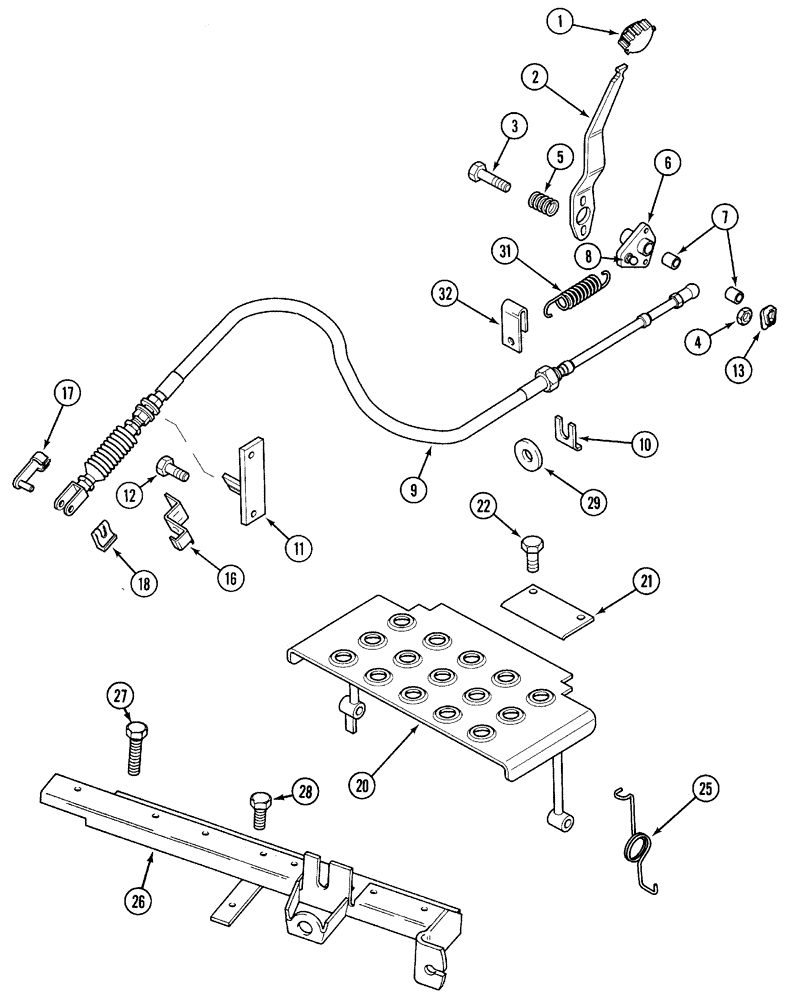

Запчасти Case IH 5130 (6-094) - PTO, CONTROLS AND SHIELD, - JJF1029999 (06) - POWER TRAIN

1

1958809C1

BUTTON

KNOB - PTO clutch

1шт.

2

1531234C2

CONTROL LEVER

LEVER - control

1шт.

3

828-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 10.9

- hex, 6 - 1.0 x 40 mm

2шт.

4

933973R1

THIN NUT,Thin, M6 x 1, Cl 04

- hex jam, 6 mm

2шт.

5

T102381

SPRING

- compression

2шт.

6

1531235C4

ARM

- assembly, Includes Ref: 7, 8

1шт.

7

1533534C1

PLASTIC RING

BUSHING - plastic

2шт.

8

NSS

NOT SOLD SEPARAT

BALL - stud (Order 1531235C4)

1шт.

9

1533381C1

CABLE

- push/pull control

1шт.

10

T101025

CABLE RETAINER

BAR - cable mounting

1шт.

11

1533382C1

SUPPORT

- assembly, valve

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

T101807

CLIP

- safety

1шт.

16

1533072C1

BRACKET

- cable

1шт.

17

3234936R1

CLEVIS PIN

CLIP - clevis

1шт.

18

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

PLATE - front, (Replaces 1534264C1)

1шт.

REF#18 could also be part# T102674.

1шт.

20

1534252C1

PROTECTOR

SHIELD - PTO

1шт.

21

1534259C1

FIXING BRACKET

CLAMP - PTO shield

1шт.

22

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

25

1534261C1

SPRING

- side shield, right

2шт.

26

1534544C1

SUPPORT ASSY.

BRACKET - assembly

1шт.

27

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

28

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

29

934283R1

WASHER,M17 ID x 30 OD x 3 Thk

- flat

1шт.

31

3234639R1

SPRING

- tension

1шт.

32

1534349C1

SUPPORT

- PTO return lever

1шт.

1533955C1

PLATE

COVER - plate PTO, self adhesive (Not illustrated)

1шт.
