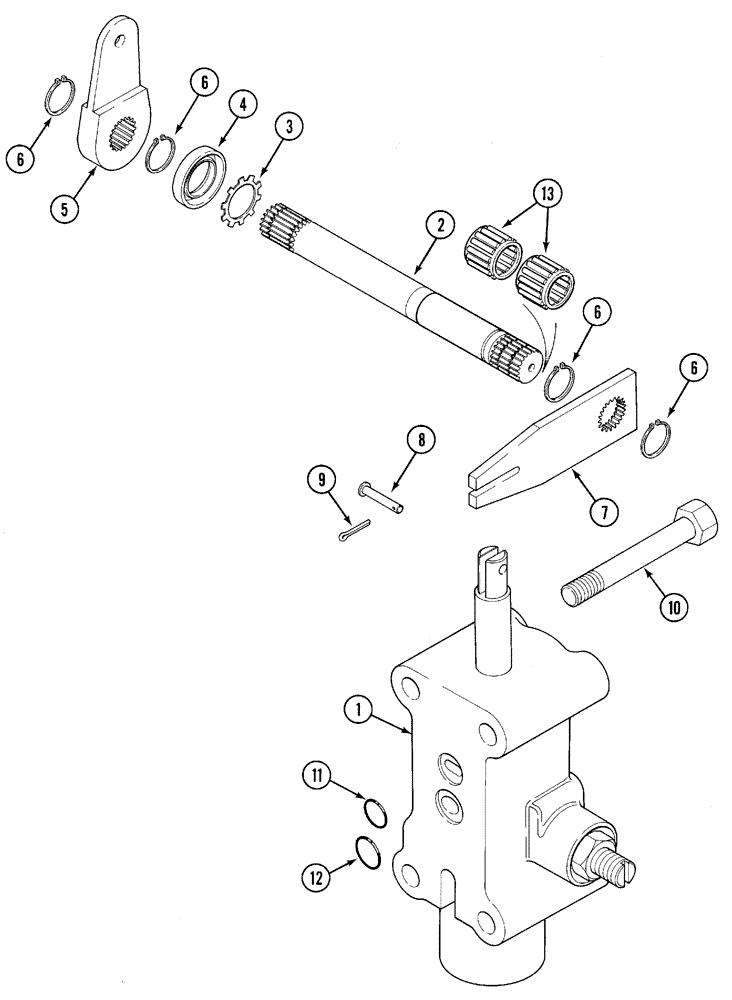

Запчасти Case IH 5130 (6-090) - PTO, VALVE AND LINKAGE, - JJF1029999 (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE - PTO assembly

1шт.

2

1345685C1

SHAFT

- linkage

1шт.

3

A186637

RETAINER

- pushon

1шт.

4

A186635

SEAL,17.89mm ID x 30.03mm OD x 7mm Thk

- rail

1шт.

5

A188881

LEVER

- PTO valve linkage, external

1шт.

6

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

4шт.

7

A186743

CONTROL LEVER

LEVER - PTO valve linkage, internal

1шт.

8

H343822

AXLE PIN

PIN - clevis

1шт.

9

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

10

826-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm

4шт.

11

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

12

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

13

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING - needle

2шт.
